Description

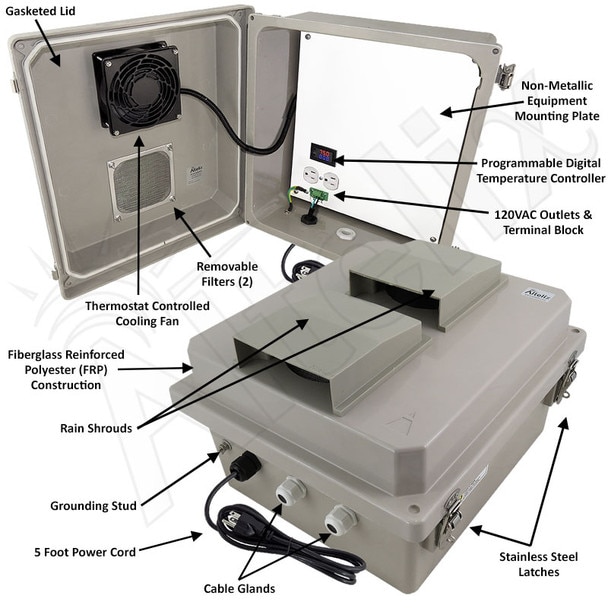

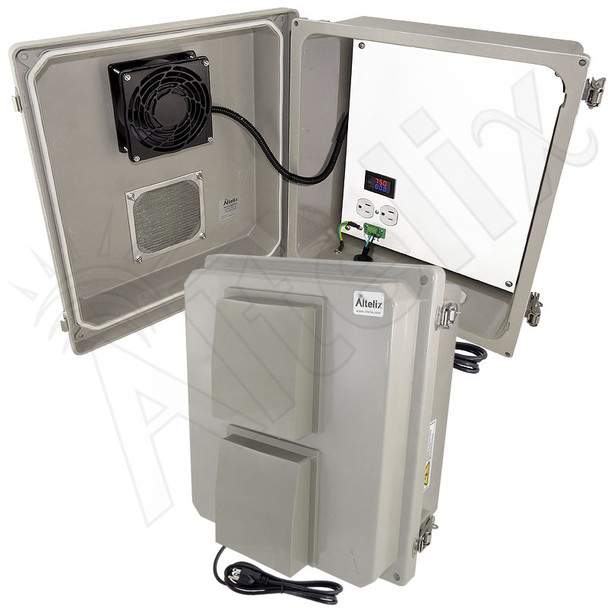

Fan Cooled Vented Enclosure with Plug and Play Power for Rapid Deployment

The Altelix NF141208VMFA1C-DF Fan Cooled Vented NEMA Enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The non-metallic polyester equipment mounting plate features two pre-wired 120VAC power outlets for your equipment.

Get your project up and running quickly and transition to hard-wired later if needed. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

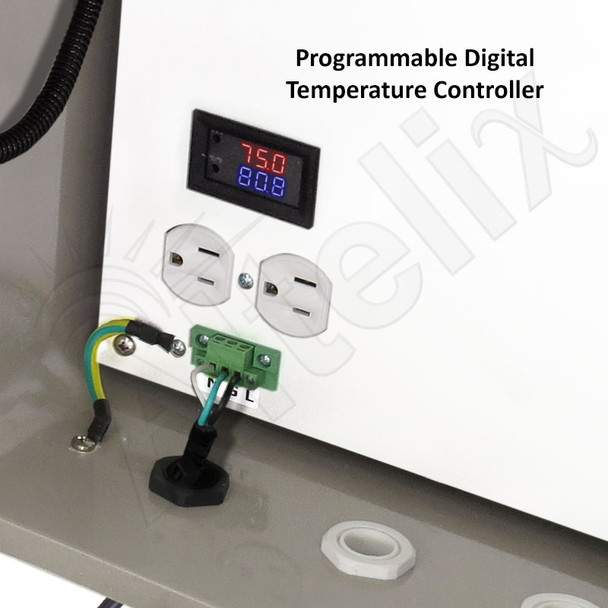

Cooling Fan with Programmable Digital Temperature Controller
This enclosure features two 4" vents and a cooling fan which helps maintain lower internal temperatures. The operation of the cooling fan can be controlled by the programmable digital temperature controller accessible inside the enclosure.The fan can be programmed to turn on and off within a set temperature range set by the user. The controller features a color digital readout and can be programmed for Fahrenheit or Celsius. Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all of the power outlets available for installed equipment.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent for compatibility with wireless equipment. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps. The generous size of this enclosure and the extended lid accommodate a wide range of equipment.

Wireless Compatibility
This RF transparent enclosure features a 0.20" (5mm) thick polyester non-metallic equipment mounting plate making it ideal for wireless applications including WiFi, RFID, iOT, Cellular and more. The non-metallic materials will not interfere with the operation of wireless gear.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available: painted steel (NMKS-300-08) and stainless steel (NMKX-300-08).

Features

  • No Electrical Wiring Required
  • Cooling Fan with Programmable Digital Temperature Controller
  • Two (2) 4" Vents with Rain Shields and Screens
  • (2) Pre-Wired 120VAC Outlets with 5ft Power Cord
  • Easy to Drill RF Transparent Blank 5mm Thick Non-Metallic Polyester Equipment Mounting Plate
  • Extended Lid for Increased Equipment Clearance
  • Stainless Steel Hinge and Quick Release Latches with Padlock Hasps
  • Fiberglass Reinforced Polyester, FRP
  • Weatherproof, UV Stable and Highly Corrosion Resistant
  • NEMA Type 3R, 3RX / IP24 Rated
  • Includes Cable Glands and Stainless Steel Mounting Feet
  • RF Transparent Enclosure
  • Pole Mounting Kit Available

Applications

  • Rapid Deployment
  • Emergency Networks
  • Harsh Environments
  • WiFi Enclosure
  • RFID Reader Enclosure
  • IoT Sensors
  • SCADA Remote Terminal Unit
  • Security and Surveillance Systems
  • Outdoor Use of Indoor Equipment
  • Protection from Vandalism
  • Concealment of Electronic Equipment
  • Building Automation Controls
  • Industrial Controls Enclosure
  • Battery and Charger Box
