Altelix NFC241609V-DIN - 24x16x9 Vented Industrial DIN Rail Fiberglass Weatherproof NEMA Enclosure

  • Brand: Altelix
  • P\N: NFC241609V-DIN
(0)No Reviews yet

Availability: In Stock


Your Price: $549.99

Do you have questions?

Please contact our experts for assistance.

Description

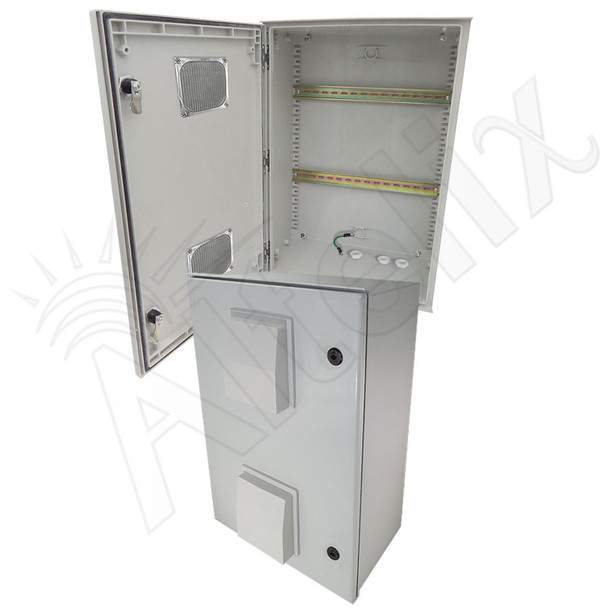

The Altelix NFC241609V-DIN Vented Weatherproof Industrial DIN Rail Enclosure is an industrial quality fiberglass enclosure ideal for protecting DIN rail mounted equipment from harsh environments and tampering. The outside dimensions are 23.7 x 15.8 x 9.2 Inches (602 x 401 x 234 mm) and the usable interior dimensions are 20.4 x 14.1 x 7.2 Inches (518 x 359 x 184 mm).

Includes (3) DIN Rails and Integral T-Slot Nut Mounting System

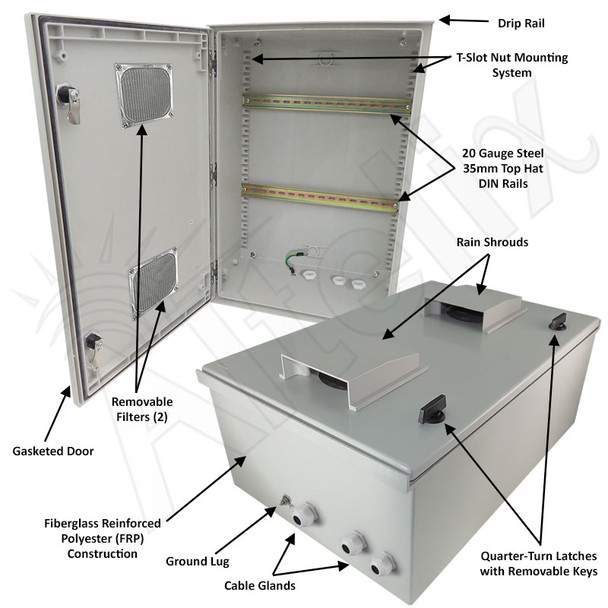

Included with this enclosure are (3) 15" long 20 gauge steel 35mm top hat DIN rails. They are easily installed to the interior of the enclosure without drilling or modification using the integral T-Slot Nut mounting system. This versatile mounting system is molded into the interior of the enclosure and runs the full length of the enclosure from top to bottom. This allows the DIN rails to be mounted easily in any of 20 locations providing the flexibility needed when configuring the enclosure for specific user requirements. Hardware for mounting the DIN rails is included.

Fiberglass (FRP) Construction
This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The lockable door features reinforced hinges and dual quarter-turn latches to secure the enclosure and is locked and unlocked using the included removable keys. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is open. The enclosure can be drilled and modified by the installer to suit unique site requirements. The enclosure is also RF transparent to support wireless devices.

Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

Ventilation
To help expel heat from within the enclosure, this model features two 4 inch air vents with cleanable aluminum mesh screens which are covered by rain shields.

Optional Lockable Latches
For additional protection of internal equipment installed, three lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. Similar to the HN-0005, the HN-0001 has an interlock feature that traps the key when it is in the unlocked position. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). All of these optional lockable latches are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

Cable Glands
The enclosure features our unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-400-08) and stainless steel (model NMKX-400-08).

Features

  • Heavy Duty Fiberglass Reinforced Polyester (FRP) Construction
  • Dual 4" Vents with Rain Shields to Expel Heat
  • Dual Quarter-Turn Door Latches
  • Bonus Aluminum Bottle Opener Key Now Included!
  • Includes (3) 35mm Top Hat DIN Rails and Mounting Hardware
  • 20 Integral T-Nut Mounting Rail Positions
  • (4) Mounting Feet Included
  • NEMA Type 3R, 3RX / IP24 Rated
  • Optional Lockable Latch Sets Available
  • Corrosion Resistant & Dent Proof
  • RF Transparent for Wireless Equipment
  • Optional DIN Rail Mount Heater Available

Applications

  • DIN Rail Mount Equipment
  • Industrial Controls
  • Building Automation
  • Agricultural Controls
  • Environmental Monitoring Stations
  • SCADA Remote Terminal
  • DIN Mount Power Relays and Terminals
  • Security & Surveillance Equipment
  • Access Controls
  • Protection of Equipment from Theft or Damage
