Altelix NS242412A1C - 24x24x12 NEMA 4X Steel Weatherproof Enclosure with Dual 120 VAC Duplex Outlets and Power Cord
- Brand: Altelix
- P\N: NS242412A1C
Do you have questions?
Please contact our experts for assistance.
Description

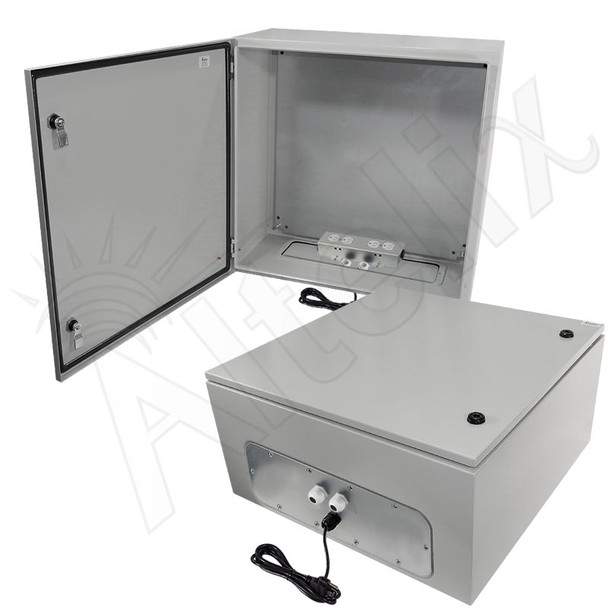

The Altelix NS242412A1C NEMA 4X Steel Weatherproof Enclosure with 120VAC Power and Equipment Plate is ideal for protecting equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.
Construction and Features

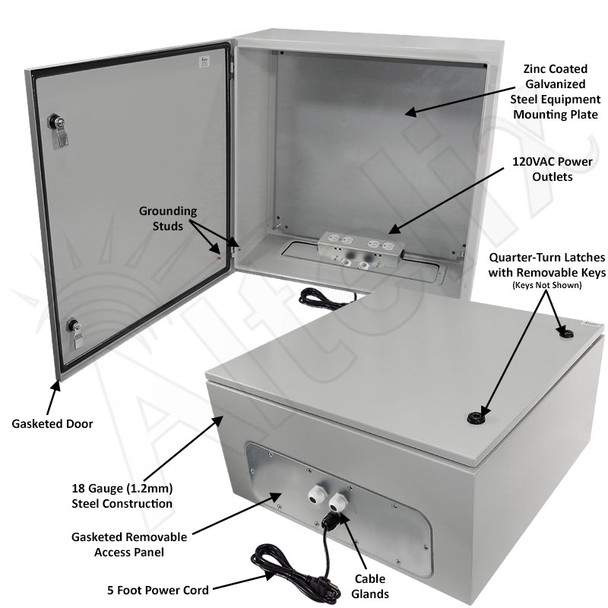

This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure.
Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.
Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Removable Power Module

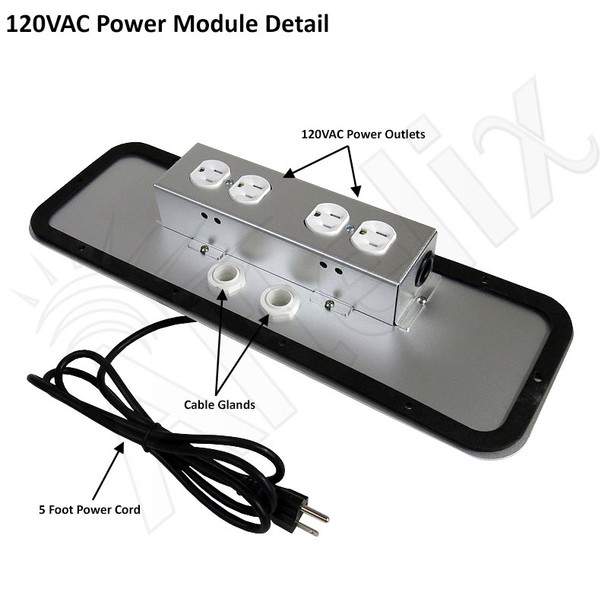

The NS242412A1C features a removable power module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.
This enclosure is also available with a single pre-wired duplex power outlet (2 outlets total). This provides additional room inside the enclosure for installed equipment. See NX242412A1R2C.
Galvanized Steel Equipment Plate
This configuration consists of the steel NEMA enclosure with hinged door and a 18 Gauge (1.2mm thick) zinc coated galvanized steel plate for mounting and securing equipment. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. Two optional flange and pole mounting kits are available, painted steel (model NMKS-600-08) and stainless steel (model NMKX-600-08).
Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
Features
- (4) Pre-Wired 120VAC Outlets with 5 Foot Power Cord
- Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
- Includes Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
- Dual quarter-turn door latches with key
- Bonus Aluminum Bottle Opener Key Now Included!
- Epoxy polyester textured light gray powder coat finish
- NEMA Type 4, 4X / IP66 Rated
Applications
- Indoor / Outdoor Electrical and Electronic Equipment
- Industrial Controls and Components
- Security and Surveillance Systems
- Outdoor use of Indoor Equipment
- Protection of Equipment from Theft or Damage
- Agriculture Processing Facilities
- Mining Operations and Refineries
- Marine Applications
