Altelix NS242424A1C-R6U - 24x24x24 19" Wide 6U Rack NEMA 4X Steel Weatherproof Enclosure with Dual 120 VAC Duplex Outlets and Power Cord

  • Brand: Altelix
  • P\N: NS242424A1C-R6U
(0)No Reviews yet

Availability: Backorder


Your Price: $774.29

Do you have questions?

Please contact our experts for assistance.

Description

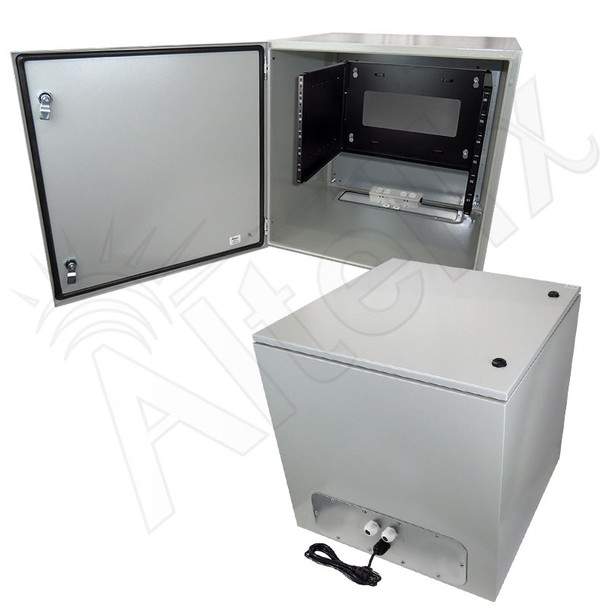

Altelix 24x24x24 19" Wide 6U Rack NEMA 4X Steel Weatherproof Enclosure with Dual 120 VAC Duplex Outlets and Power Cord (NS242424A1C-R6U)

The Altelix NS242424A1C-R6U 19" Rack 6U NEMA 4X Steel Weatherproof Enclosure with 120VAC Power and Equipment Plate is ideal for protecting rack mountable equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

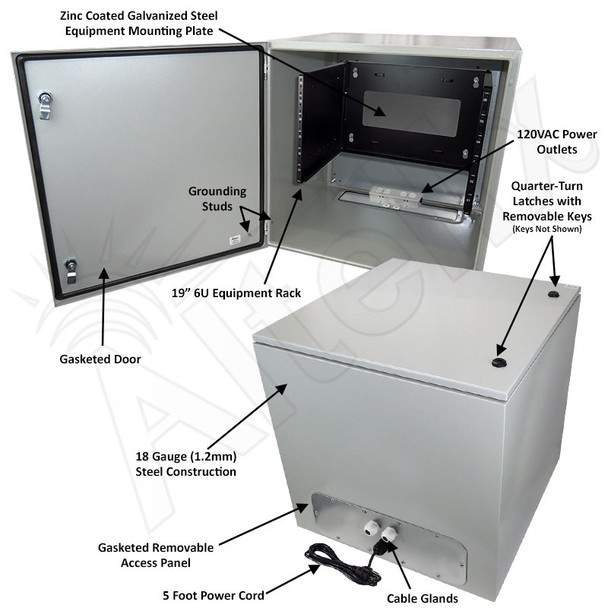

Construction and Features

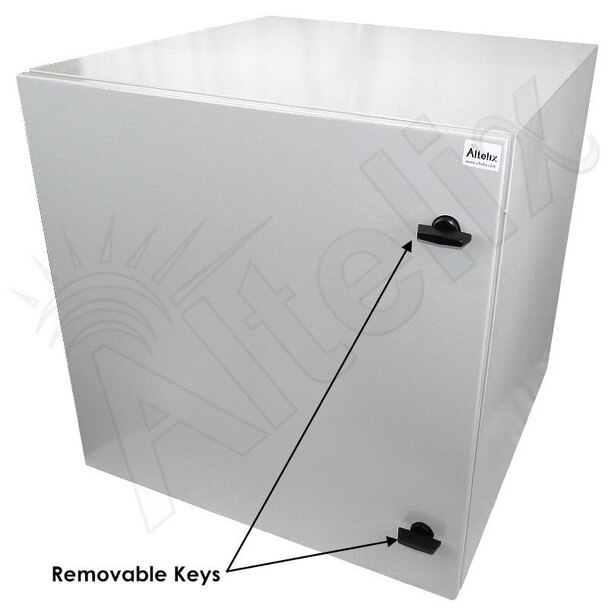

This rugged IP66 rated enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure.

Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

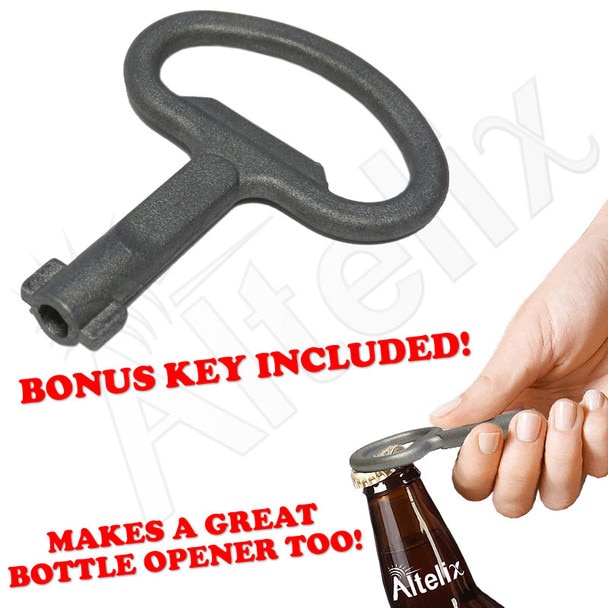

Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!

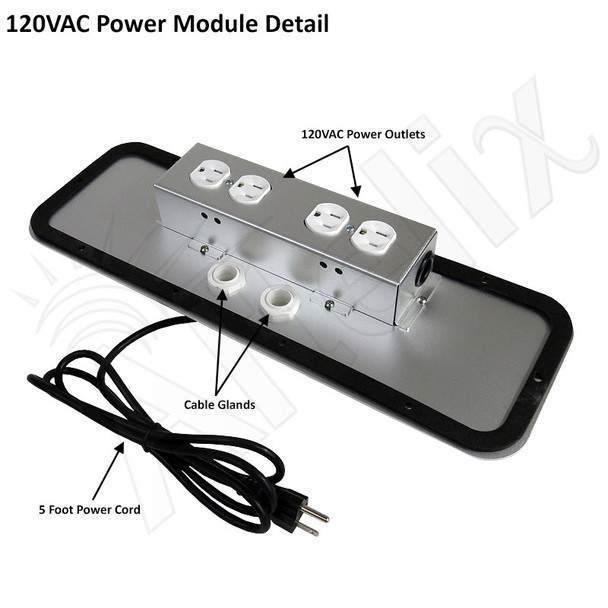

Removable Power Module
The NS242424A1C-R6U features a removable power module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.

For 20A applications this enclosure is also available with 120VAC 20A outlets and a 5 foot power cord and with 20A 3-prong plug. See NS242424A1C-20A-R6U.

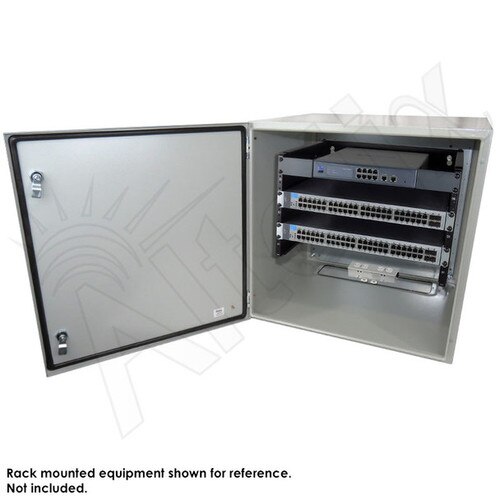

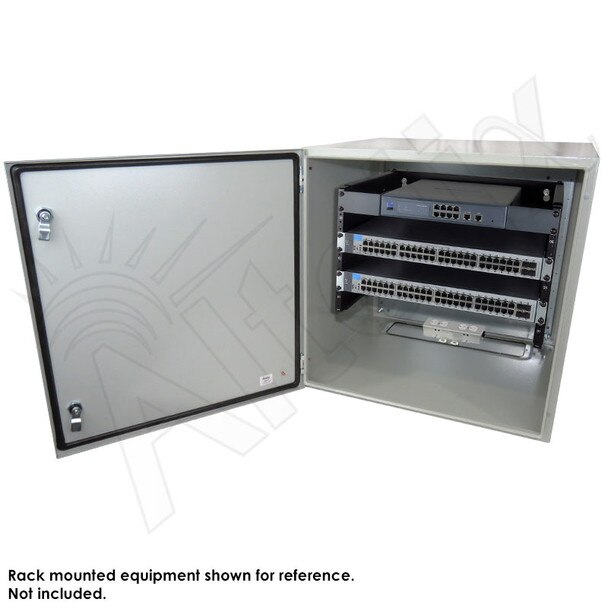

Internal 6U 19" Equipment Rack
The NS242424A1C-R6U features a standard 19" 6U equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 18 Gauge (1.2mm thick) galvanized steel plate which can also be drilled and modified by the installer to unique site requirements.

Installation Note: This 6U rack has an adjustable depth from 9.5" (241.3mm) to 15.5" (393.7mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.

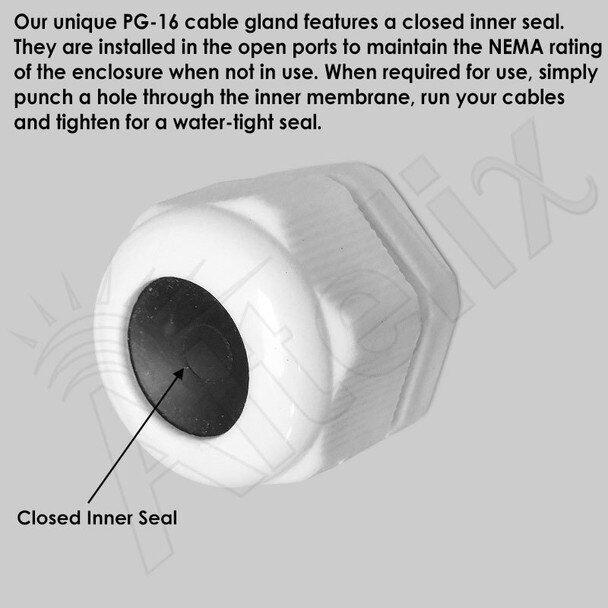

Cable Glands
The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.

Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. For pole mounting Altelix has available the optional NMHS-600-16 pole mount kit. This heavy-duty kit features (2) 14 gauge steel mounting brackets and (2) heavy-duty 19 gauge 304 stainless steel adjustable bands which can be used to mount to poles from 4.5" (114.3mm) to 16" (406.4mm) in diameter.

Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.

Customization
This enclosure is one of many standard models available. Our lineup includes enclosures specifically tailored for WiFi equipment, DIN Mount Industrial Controls, POTS Telephones, IP Phones, Device Charging Stations, Security & Safety Equipment, Building & Home Automation and More.

We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

What's in the Box:

  • Altelix Enclosure
  • (4) 120VAC Outlets
  • Includes Aluminum Bottle Opener Key
  • Includes 19" 6U Rack Frame and Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
Interested in learning more about this product?Check out our blog!

Features

Features

  • Deeper size accommodates equipment with front facing ports
  • (4) Pre-Wired 120VAC Outlets with 5 Foot Power Cord
  • Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
  • Includes 19" 6U Rack Frame and Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
  • Dual quarter-turn door latches with key
  • Bonus Aluminum Bottle Opener Key Now Included!
  • Epoxy polyester textured light gray powder coat finish
  • NEMA Type 4, 4X / IP66 Rated

Applications

  • 19" Rack Mountable Equipment
  • Indoor / Outdoor Electrical and Electronic Equipment
  • Rack Mountable Audio/Video Equipment
  • Ethernet Switches
  • Networking Equipment
  • Industrial Controls and Components
  • Security and Surveillance Systems
  • Outdoor use of Indoor Equipment
  • Protection of Equipment from Theft or Damage

Specifications

MaterialContinuous Seam Welded 18 Gauge (1.2mm) Steel
ColorLight Gray (RAL 7035)
Voltage120VAC
Max Load10A @ 120VAC

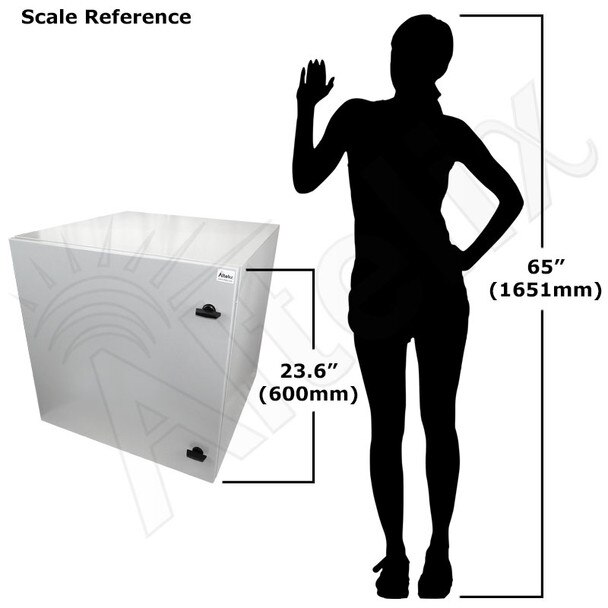

Exterior Dimensions
(Height x Width x Depth)
23.6 x 23.6 x 23.6 Inches
(600 x 600 x 600 mm)
Interior Dimensions*
(Height x Width x Depth)
19.75 x 20.0 x 22.0 Inches
(502 x 508 x 559 mm)
Rack Frame19" Width 6U
Rack Frame Weight Capacity75 lbs (34kg)
Equipment Plate Material18 Gauge (1.2mm) Zinc Coated Galvanized Steel
Equipment Plate Dimensions22.2 x 21.6 In. (565 x 550 mm)
Weight70.0 lbs. (31.7 kg)
Power Cord Length5 Feet (1.5m)
RatingsNEMA Type 4, 4X / IP66
*Notes:

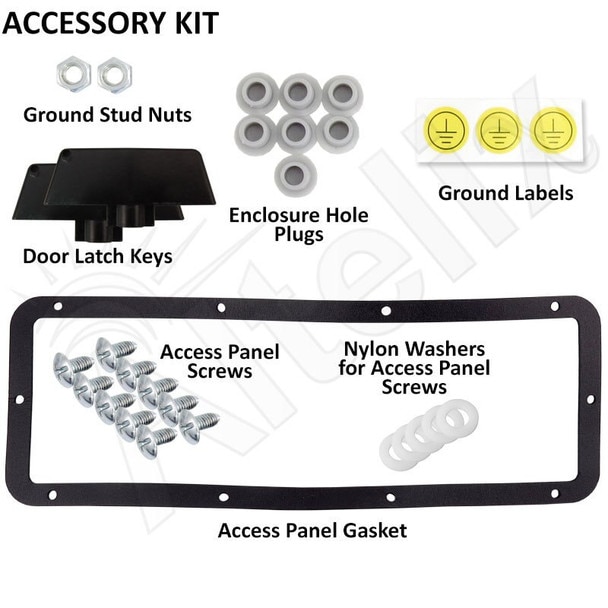

1) Enclosure openings must be properly sealed with supplied plugs to maintain NEMA Type 4, 4X / IP66 rating.
2) Interior dimensions represent maximum space available for equipment.
