-32°F to 140°F Adjustable DIN Rail Mount Temperature Control Thermostat with Fahrenheit Scale

The Altelix NHT-DIN series are DIN Rail mountable adjustable mechanical thermostats. Available in two models, Normally Open (NO) or Normally Closed (NC), these thermostats feature easy to read dials with temperature setting in Fahrenheit. With an adjustable temperature range from -32°F to 140°F, these thermostats are ideal to control heater, fans, cooling equipment and alarm signaling devices. 2-pole clamp style power terminals on the bottom of the thermostat makes wiring easy and secure.

Available in Two Models (Sold Separately):

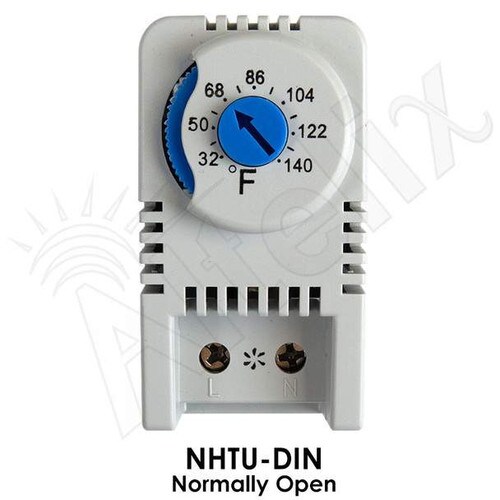

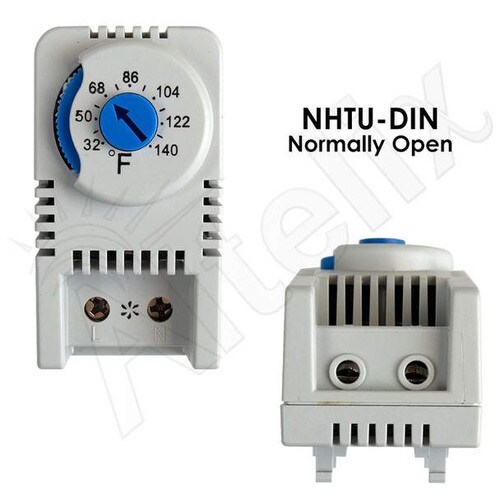

• NHTU-DIN - Normally Open (for cooling/fan control)
• NHTC-DIN - Normally Closed (for heater control)

Normally Open Operation
When the ambient temperature is lower than the temperature set by the thermostat, the circuit is open and the cooling equipment stops.When the ambient temperature is higher than the temperature set by the thermostat, the circuit closes and the cooling equipment starts.

Normally Closed Operation
When the ambient temperature is higher than the temperature set by the thermostat, the circuit is open and the heating equipment stops.When the ambient temperature is lower than the temperature set by the thermostat, the circuit closes and the heating equipment starts.

Altelix DIN Rail Enclosures
Altelix has available a wide range of DIN Rail enclosures with sizes ranging from 10x8x6 inch to 32x24x12 inch. These enclosures are available in Fiberglass (FRP), Polycarbonate, Painted and Stainless Steel.

Features

• Easy to Read Dial in Fahrenheit

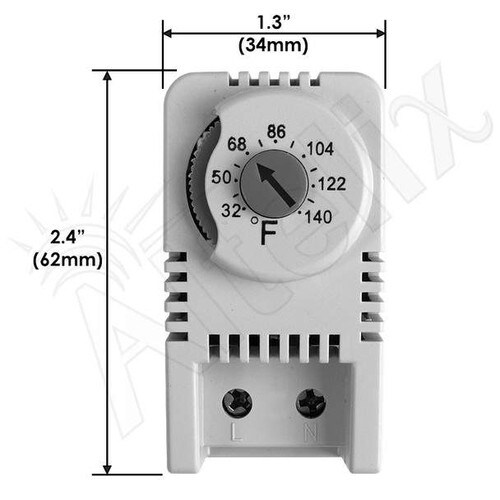

• Compact Size
• 15A Current Rating @ 120VAC
• Wide Temperature Range -32°F to 140°F
• Color Coded Temperature Adjustment Dials

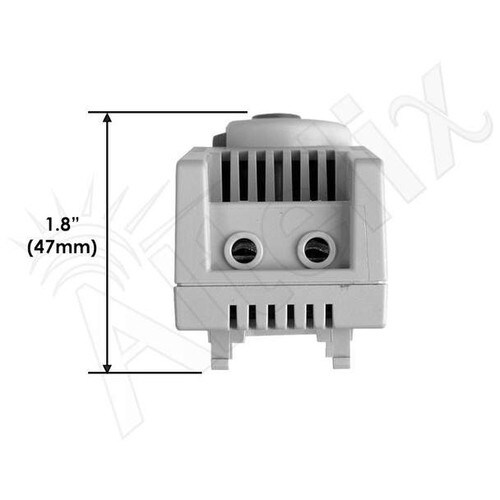

• Bottom Mounted 2-Pole Clamp Style Power Terminals

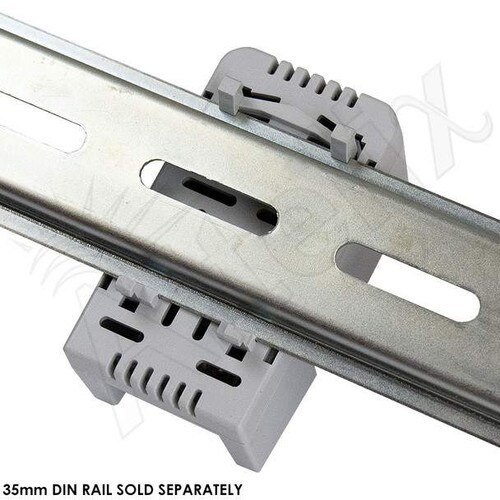

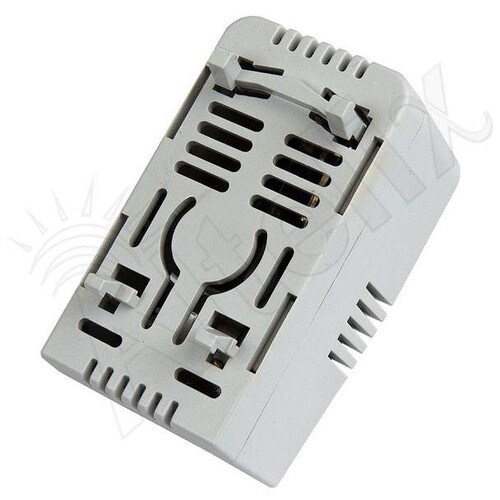

• DIN Rail Mountable
• Available Normally Closed (NC) or Normally Open (NO)

Applications

• Control of Fans, Cooling Equipment and Heating Equipment
• Signal Alarm Devices
• Enclosure Cooling Fan Thermostat Control
• Enclosure Heat Thermostat Control
• DIN Rail Enclosures
• Outdoor Electrical/Electronic Enclosure Installations
• Network Equipment Racks
• Media Closets and Cabinets
• Food Storage Equipment
