Altelix DRS-NFC10-NP11 - 35mm Top Hat DIN Rail Kit for NP141105 & NFC121006 Series Enclosures
- Brand: Altelix
- P\N: DRS-NFC10-NP11
Do you have questions?
Please contact our experts for assistance.
Description
Description

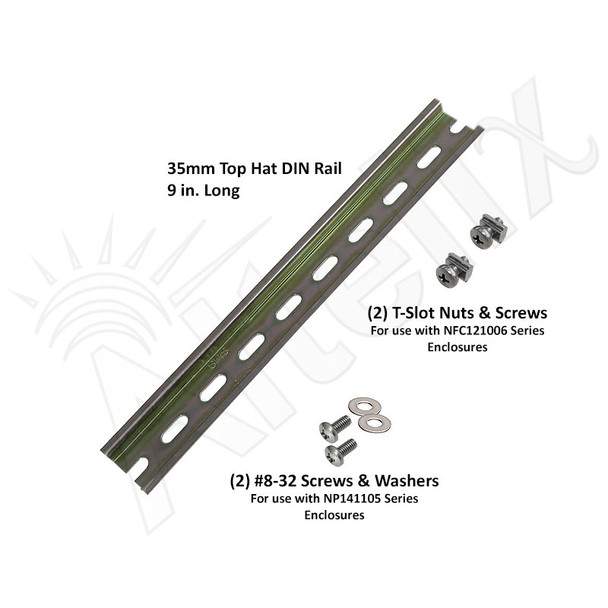

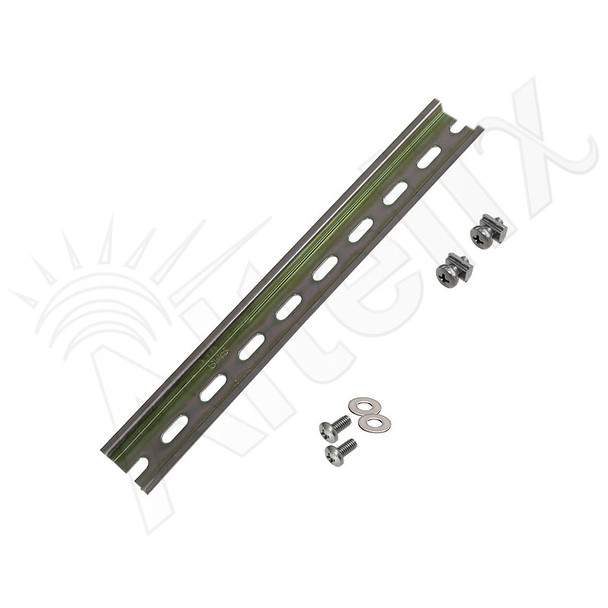

The Altelix DRS-NFC10-NP11 is a 35mm Top Hat DIN Rail Kit for use with the Altelix NP141105 and NFC121006 Series NEMA enclosures. The kit includes:
- (1) 9" long 20 gauge steel 35mm top hat DIN rail
- (2) #8-32 Screws and Washers (For use with NP141105 enclosures with equipment mounting plates)
- (2) T-Slot Nuts and Screws (For use with NFC121006 enclosures without equipment mounting plates)
This DIN Rail Kit can be used with the following enclosures:
- NFC121006 Series Enclosures without Equipment Mounting Plates
- NP141105 Series Enclosures with Equipment Mounting Plates
NFC121006 Installation Note:
The T-Slot Nut mounting system can only be used with NFC121006 enclosures without equipment mounting plates. However, the DIN rail can be directly mounted to the plate (drilling of the plate would be required).
DIN Rail Material | 20 Gauge (0.04 inch) Steel |
DIN Rail Length | 9.0 In. (230 mm) |
