Altelix TL2X5-DIN - 5-Conductor DIN Rail Mount Quick Splicing Connector
- Brand: Altelix
- P\N: TL2X5-DIN
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Description

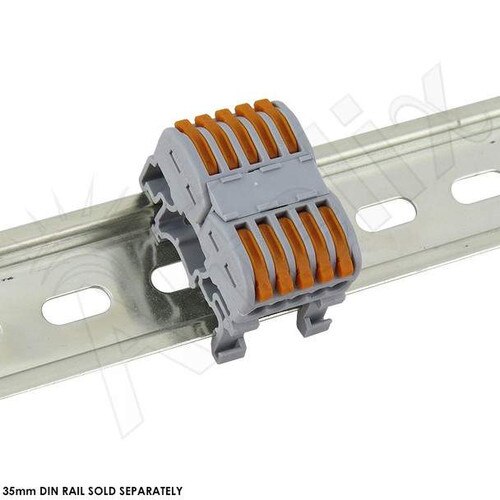

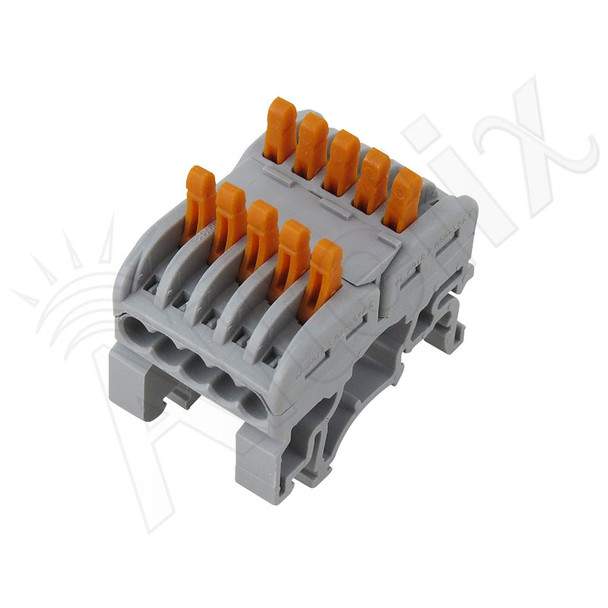

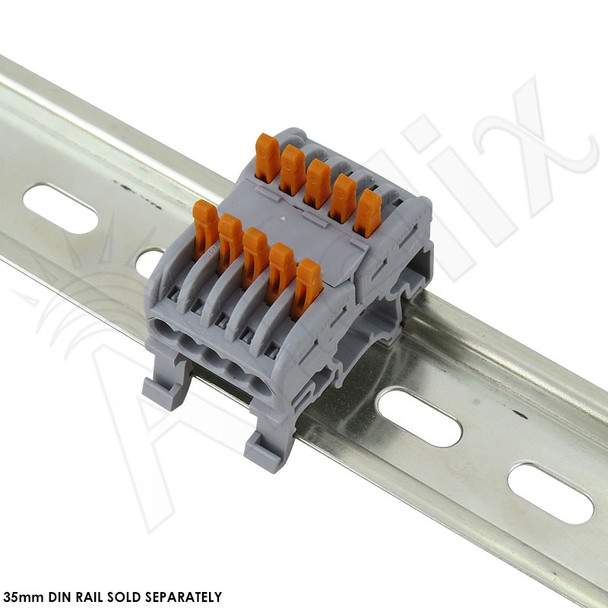

The Altelix TL2X5-DIN is a 5-Conductor DIN Rail Mountable Splicing connector. It features two independent wiring blocks that can each splice up to 5 wiring together. It is designed to be attached to standard 35mm Top Hat DIN Rails.
Features
- DIN Rail Mount
- No Tools Required
- DIN rail mountable
Applications
- Altelix DIN Rail Enclosures
- Outdoor Electrical/Electronic Enclosure Installations
- DIN Type Wiring Cabinets
| Rated Voltage | 250V - 600V |
| Rated Current | 20A |
| Solid Wire Size | 28 - 14 AWG (0.08 - 2.50 mm) |
| Stranded Wire Size | 28 - 12 AWG (0.08 - 4.00 mm) |
| Strip Length | 0.35 - 0.39 Inch (9 - 10 mm) |
| Size (LxWxH) | 1.0 x 1.7 x 1.2 Inch (27.2 x 42.8 x 31 mm) |
| Ambient Temperature | -40°C to +105°C (-40°F to +221°F) |
| Mounting | 35mm DIN Rail |
