Altelix NHR-2-DIN - DIN Rail Mounted 2-Prong USA Power Receptacle with International Compatibility

  • Brand: Altelix
  • P\N: NHR-2-DIN
(0)No Reviews yet

Availability: In Stock


Your Price: $9.99

Do you have questions?

Please contact our experts for assistance.

Description

Description

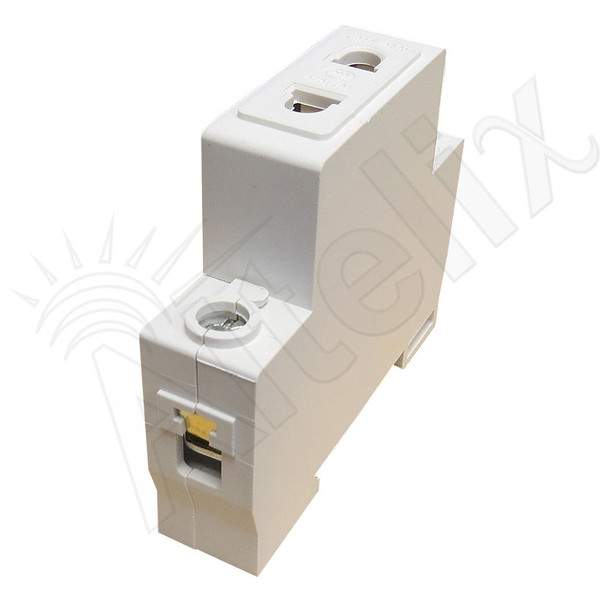

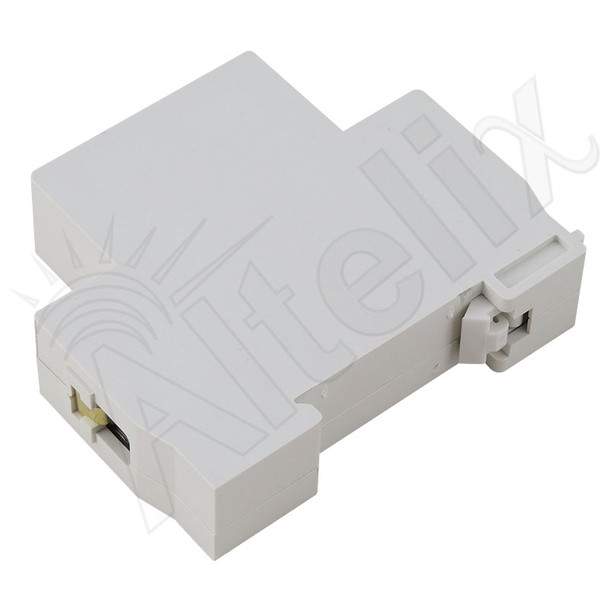

The Altelix NHR-2-DIN is a DIN Rail Mounted USA Power Outlet. It can also be wired to accept the standard Euro 2-pin 220VAC plug (CEE 7/16).

  • North America USA standard 2-pin 120VAC plug (SEV 1011)
  • Euro standard 2-pin 220VAC plug (CEE 7/16)

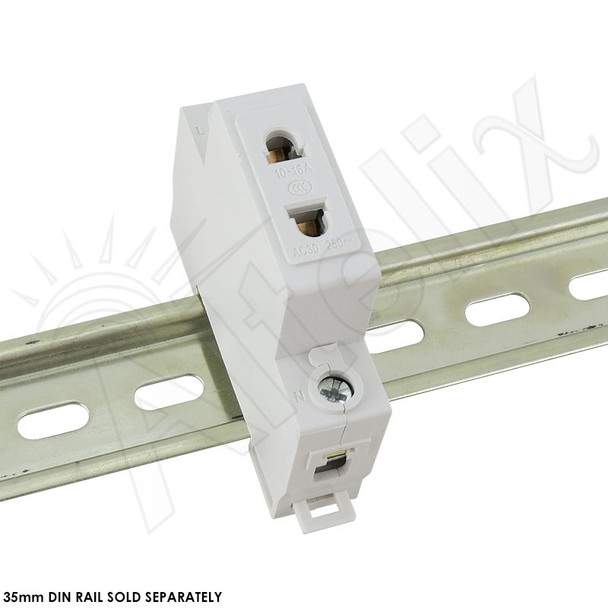

The NHR-2-DIN is designed to be easily attached to standard 35mm Top Hat DIN Rail.

Features

  • Integral DIN Rail Mount
  • 120VAC USA Operation
  • EU 220VAC Compatiblilty

Applications

  • Altelix DIN Rail Enclosures
  • Outdoor Electrical/Electronic Enclosure Installations
  • US and EU Operation
Rated Voltage110VAC 50/60Hz
115VAC 50/60Hz
220VAC 50/60Hz
230VAC 50/60Hz
240VAC 50/60Hz
Rated Current10-16A
Universal Outlet CompatibilityEuro plug (2-pin) CEE 7/16
North America (2-pin) NEMA 1-15*
Mounting35mm DIN Rail
Terminal Wire Gauge Range18-2 AWG



*Safety Notes:
  1. In some countries there may be polarity differences. To avoid possible damage to a device, check the polarity of your power supply and that of your device before plugging it in to the AC outlet and switching it on.
  2. Some devices require they be grounded. This AC outlet does not allow for the grounding tabs or grounding pin.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
