Altelix NP17AVGY - Enclosure for SONOS® AMP, Amazon® Echo Link Amp, Bluesound® Powernode, WiiM® Pro (NP17AVGY)

Altelix NP17AVGY Weatherproof Fan-Cooled A/V Equipment Enclosure

Best For

Protecting compatible audio/video, streaming, network, and control equipment in outdoor or harsh indoor locations while providing built-in AC power and thermostat-controlled ventilation.

Why Choose the Altelix NP17AVGY?

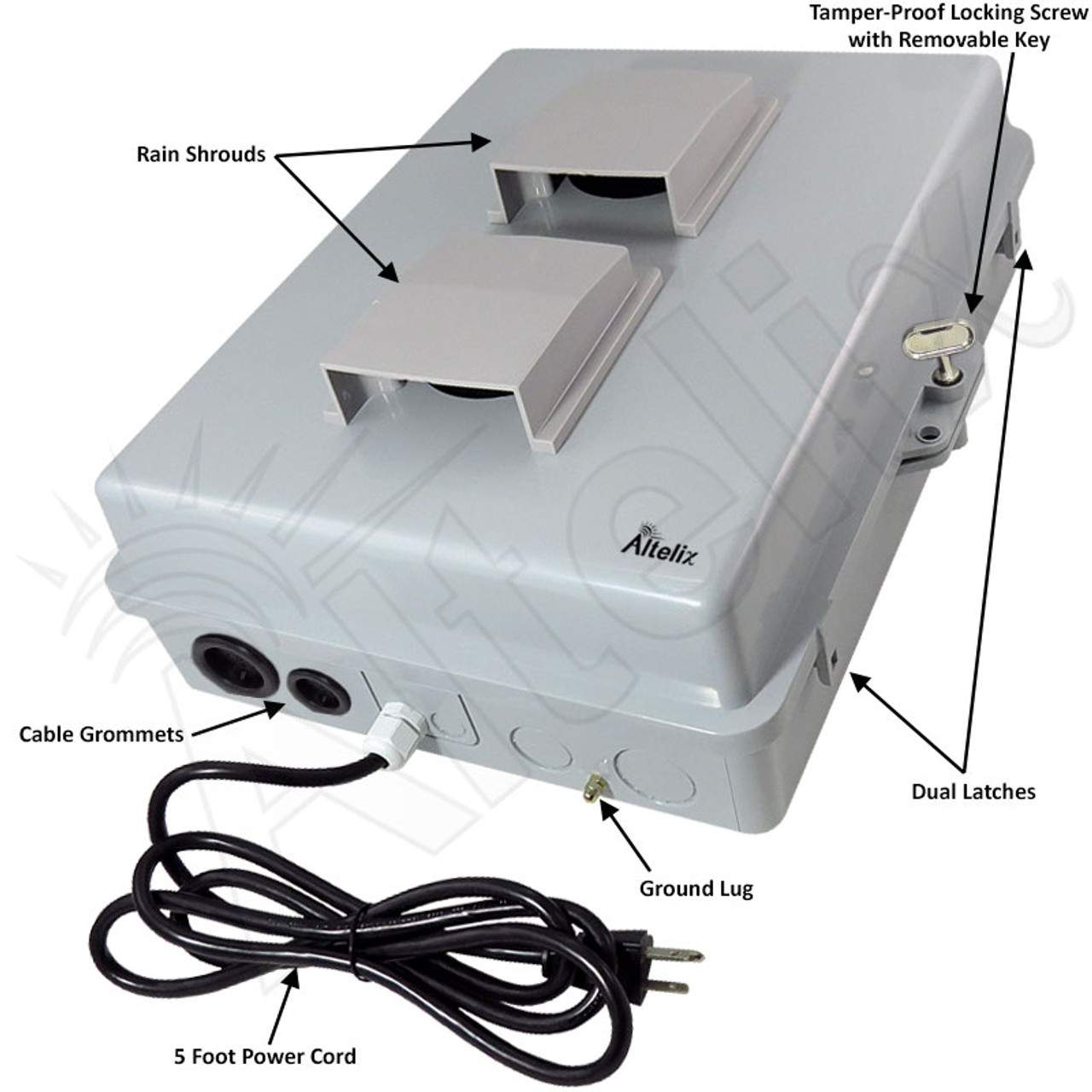

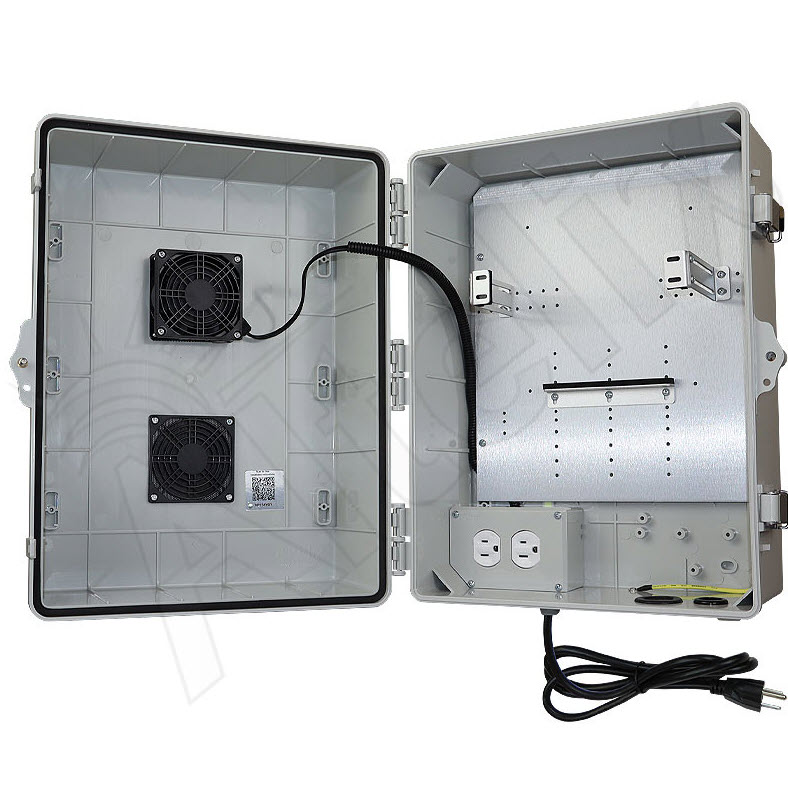

The NP17AVGY is molded from UV-resistant PC+ABS and combines a gasketed enclosure with an adjustable equipment-mounting system, pre-wired 120 VAC power, a 5-foot power cord, and active ventilation. Dual 3-inch vents and a thermostat-controlled cooling fan help manage internal heat while rain shrouds protect the ventilation openings.

Key Benefits

• NEMA Type 3R/3RX and IP24 rated enclosure
• UV-resistant PC+ABS construction

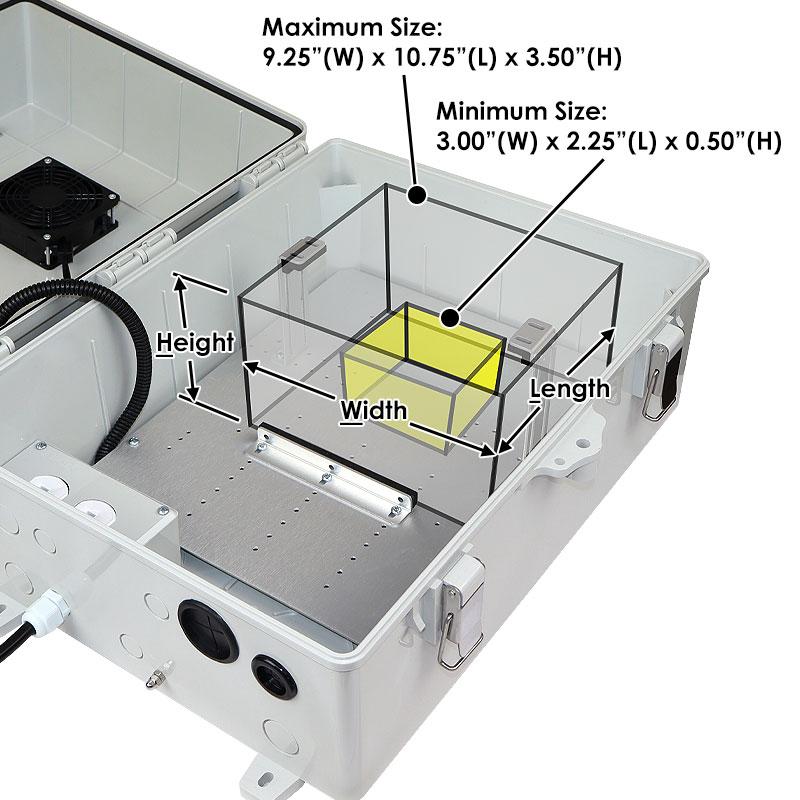

• Adjustable internal equipment-mounting system
• Internal pre-wired 120 VAC outlets
• 5-foot pre-wired power cord
• Dual 3-inch vents with thermostat-controlled cooling fan
• Fan turns on at approximately 100°F and off at approximately 79°F
• Dual latches, tamper-resistant locking screw, and padlock provision
• Wall-mounting hardware and cable-management accessories included

Who Should Buy the NP17AVGY?

Residential and commercial A/V installers, network integrators, hospitality facilities, and homeowners who need to place compatible electronics in an outdoor or exposed location while providing power, ventilation, and physical protection.

Compatible Equipment Examples

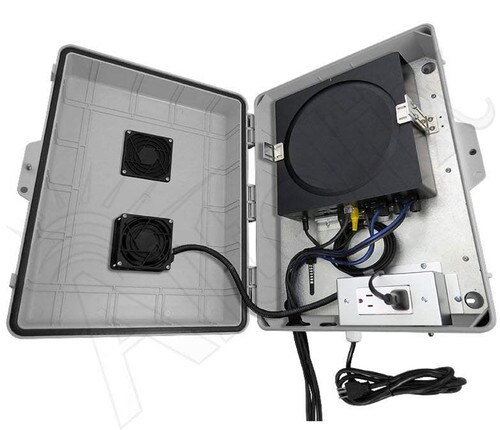

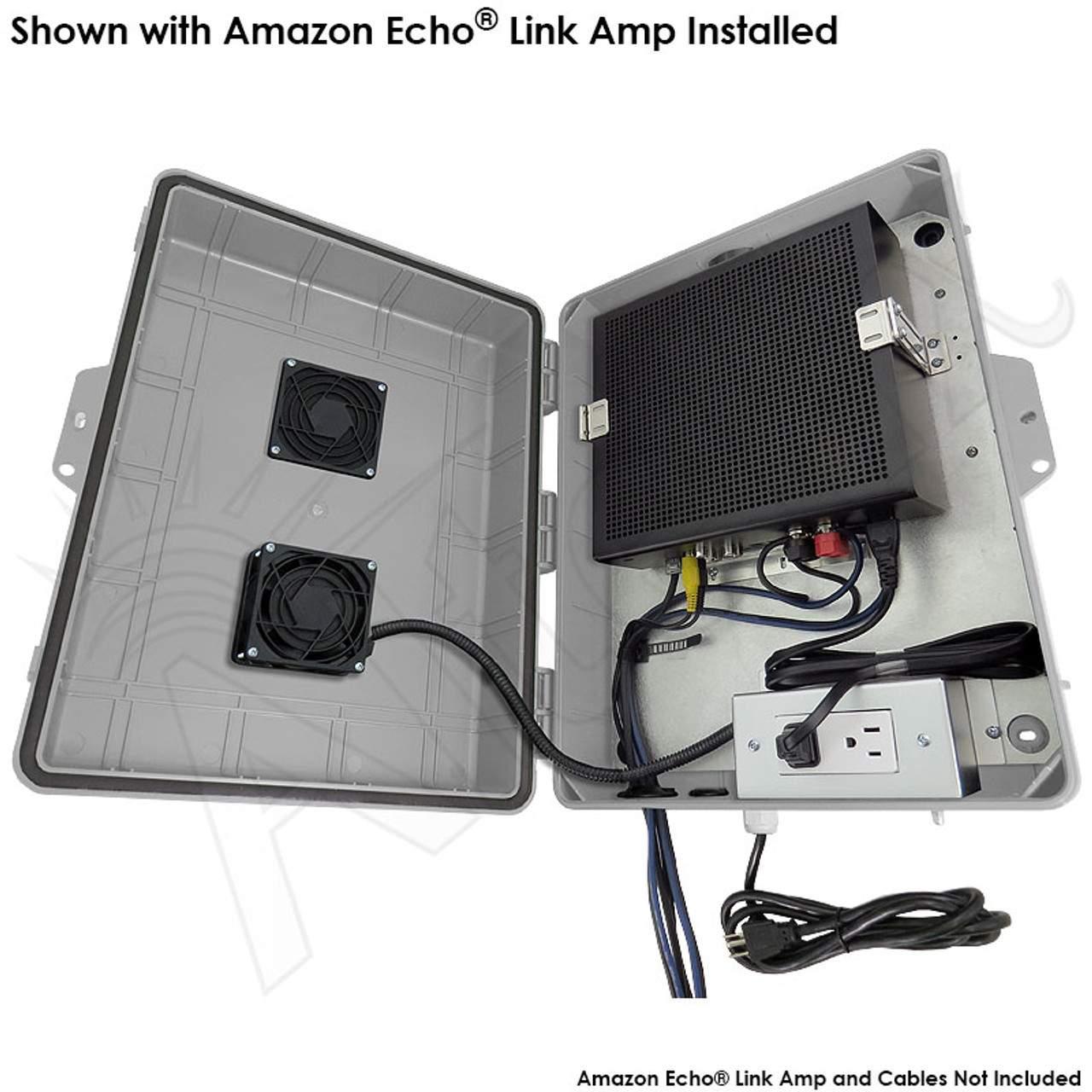

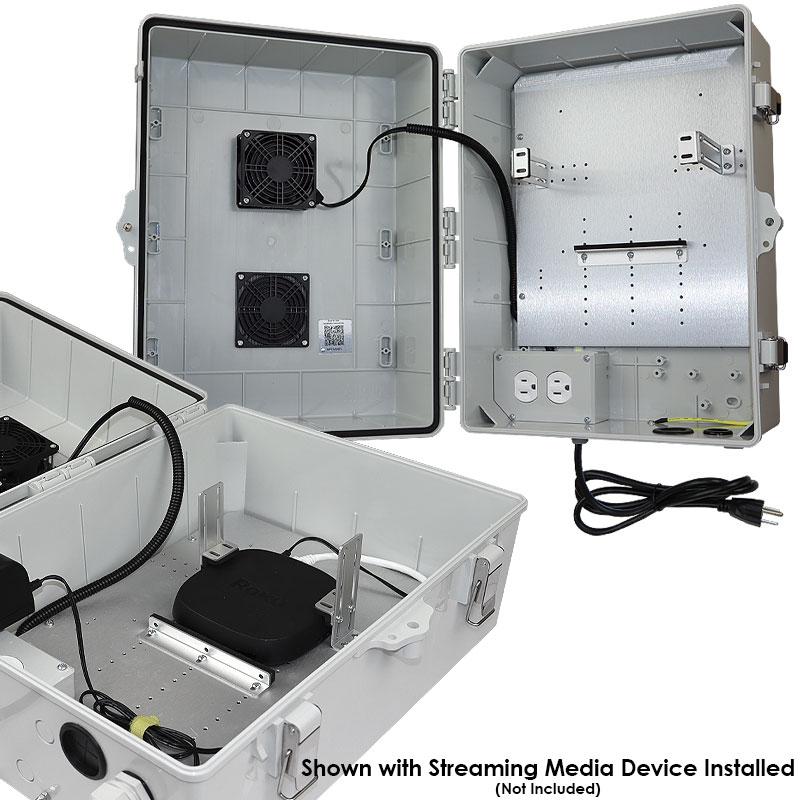

The adjustable mounting system can accommodate many compatible devices, including selected SONOS Amp and Connect:Amp products, Amazon Echo Link Amp, Bluesound Powernode, WiiM Pro, Apple Mac mini, Control4 controllers, and other equipment that fits within the enclosure's mounting and electrical limits. Confirm exact device dimensions and power requirements before installation.

Installation Notes

Wall mounting hardware is included, and an optional NMK-0001 pole-mount kit is available separately. Confirm equipment dimensions, heat output, circuit load, cable entry, ventilation clearance, weather exposure, and applicable electrical requirements before installation.

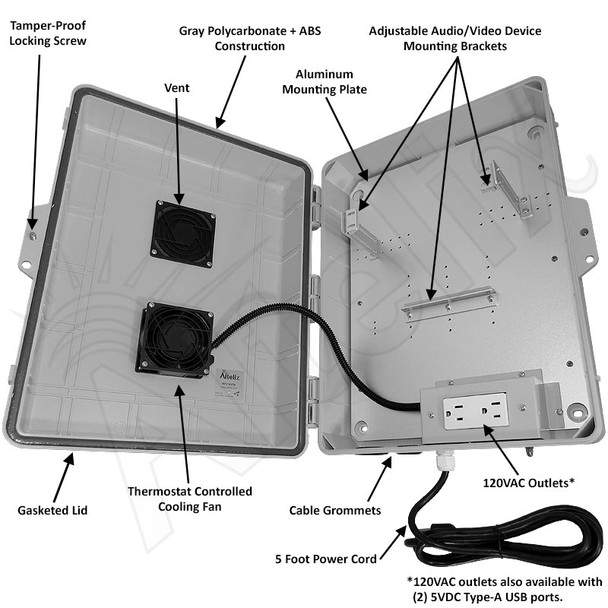

Features

• Dual 3" Vents and Thermostat Controlled Cooling Fan
• ABS + Polycarbonate Enclosure
• Gasketed Lid with Tamper-Proof Locking Screw
• Dual Door Latches
• Includes Rugged Aluminum Equipment Mounting Plate and Adjustable Brackets
• Internal Pre-Wired 120VAC Outlets

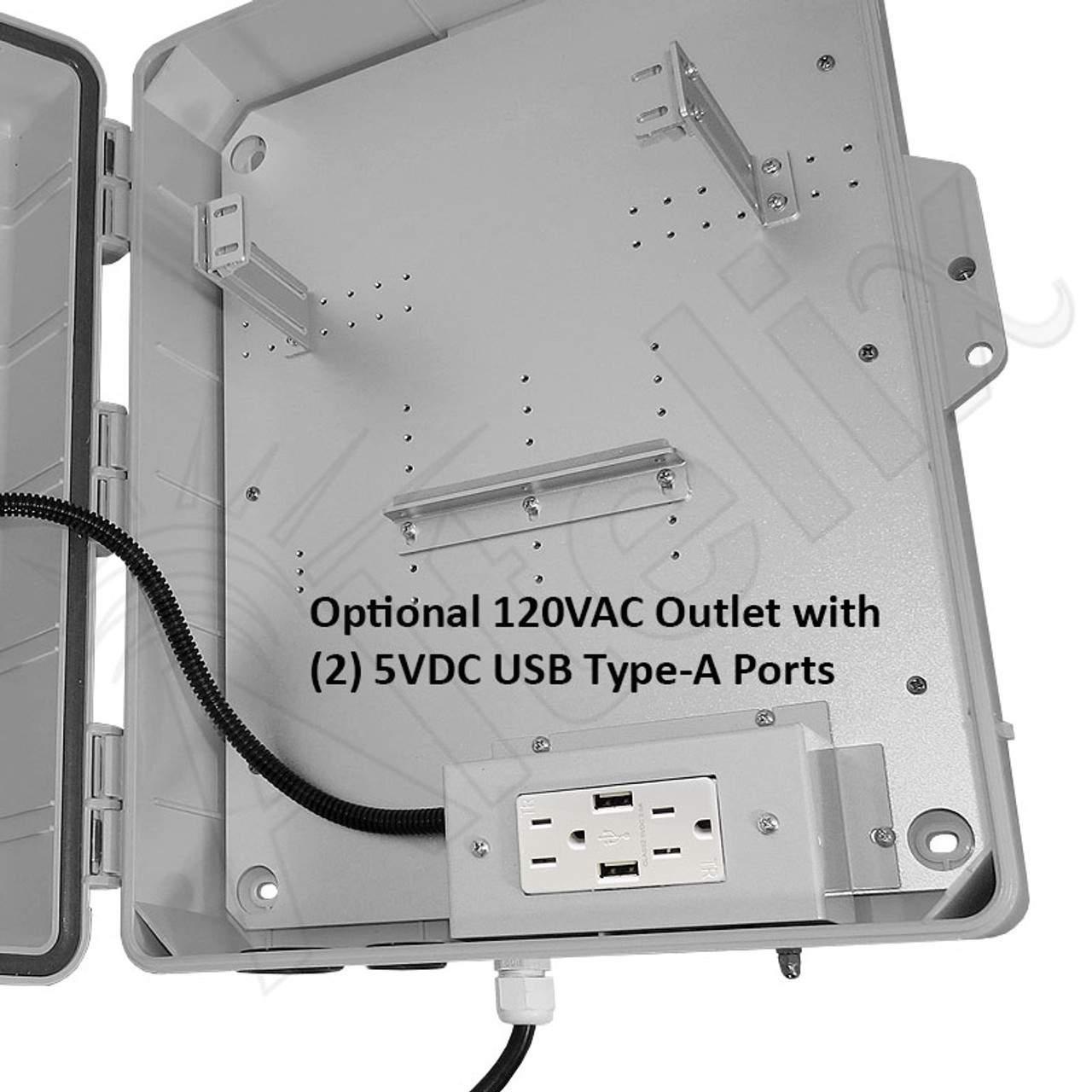

• Updated! Optional 120VAC Outlet now with USB-A and USB-C Charging Ports
• Pre-wired 5 foot power cord
• NEMA Type 3R, 3RX / IP24 Rated
• Includes Wall Mount Hardware and Cable Grommets

Applications

• Outdoor or indoor use of Audio/Video & Network Devices
• Power and Charging of USB Devices*
• Pool side, backyard audio/video entertainment systems
• Outdoor hotel and hospitality audio/video entertainment systems
• Marine audio entertainment systems
• Protection of Equipment from Theft or Damage

*When used with NP17AV enclosures with USB ports option.
