Altelix NF14VFHA1C-STK1 - Fiberglass Weatherproof Enclosure for Starlink® Satellite Router & Mesh Node with Heater, Cooling Fan, 120 VAC Outlets & Power Cord

Altelix Fiberglass Weatherproof Enclosure for Starlink® Satellite Router (Gen 2) & Mesh Node with Heater, Cooling Fan, 120 VAC Outlets & Power Cord (NF14VFHA1C-STK1)

All Weather Industrial Grade Protection for the Starlink® Satellite Internet Router

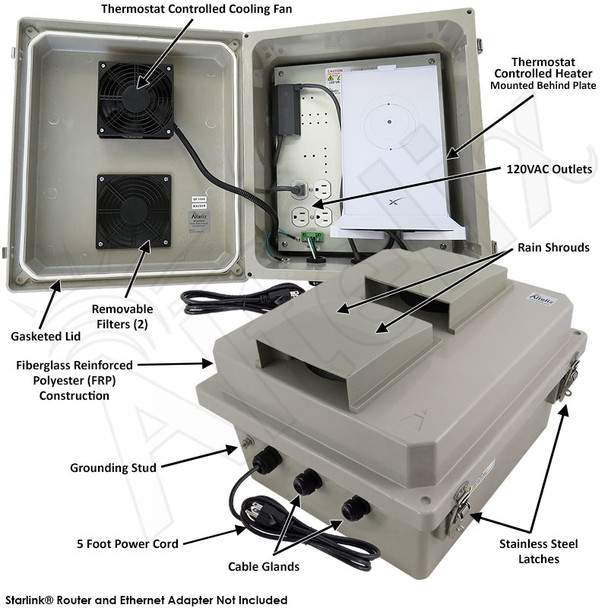

Designed to provide the ultimate all weather protection for the Starlink® WiFi Router (Gen 2), this heated and fan cooled enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features four pre-wired 120VAC power outlets.

Multi Function Mounting Cradle

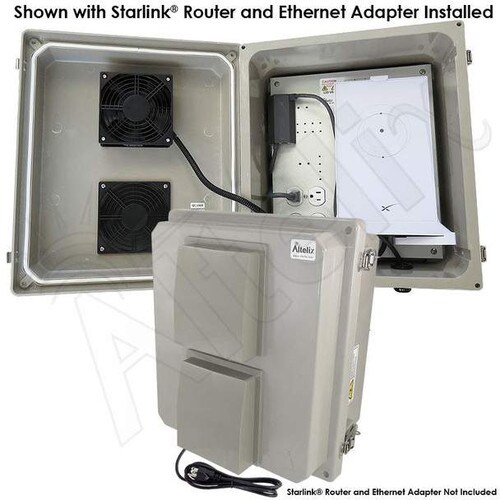

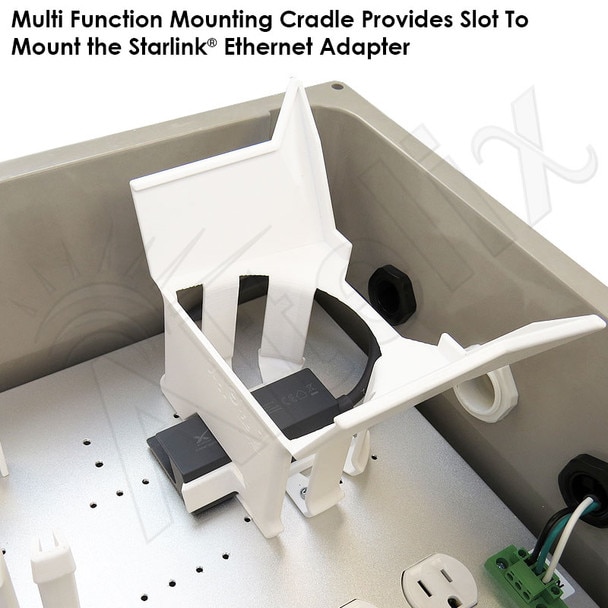

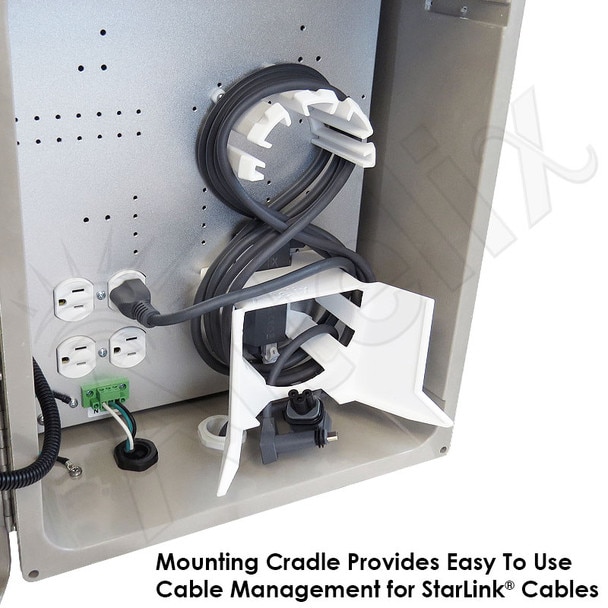

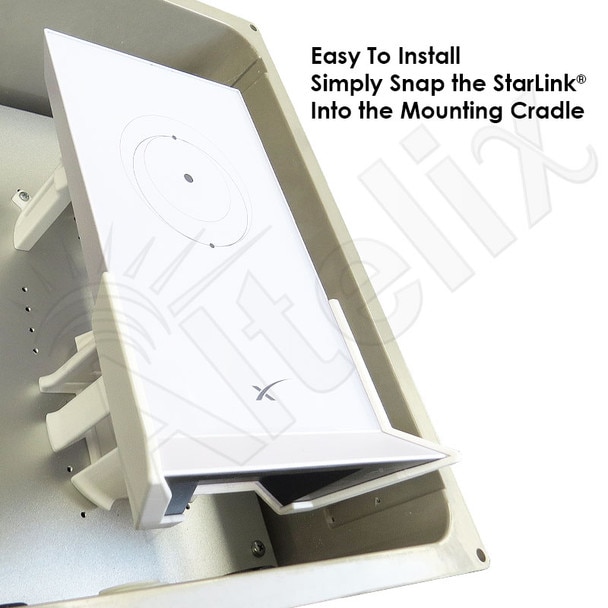

The Altelix Starlink® enclosure features an innovated multi function mounting cradle which is designed to easily mount both the Starlink® Router (Gen 2) and Starlink® Ethernet adapter into one cradle. This mounting cradle also provides easy to use cable management for all the required cables.

Plug and Play Setup

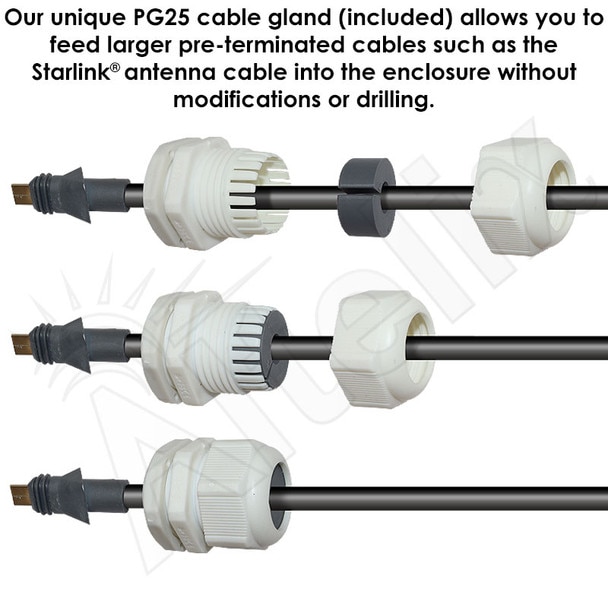

This enclosure provides easy plug-and-play installation. Once the Starlink® Router and Ethernet adapter are securely mounted inside the enclosure, connect the router's power supply to the internal 120VAC power outlet. Cable glands on the enclosure allow cables to be connected to the device. Simply plug the enclosure's 5 foot power cord into an outdoor outlet and you are up and running. The power cord can be easily removed, and the quick-connect terminal strip simplifies hard-wiring by a qualified installer.

Fan Cooling with Thermostat Control

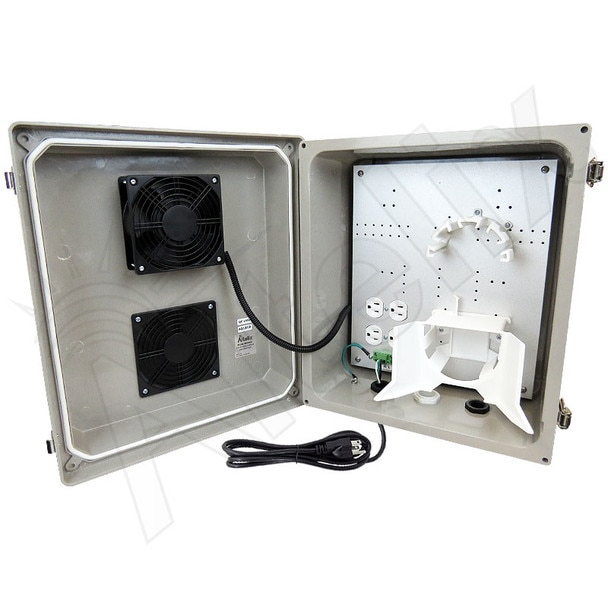

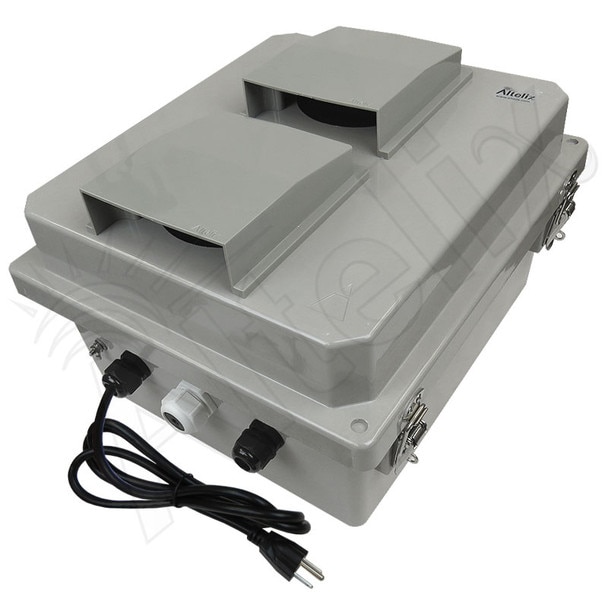

This enclosure features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all 4 power outlets available for the Starlink® Router as well as for any additional installed equipment.

200W Thermostat Controlled Heater
This enclosure is equipped for harsh weather and cold environments. It features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is mounted below the equipment plate and wired internally so leaves the interior space and power outlets available for the Starlink® Satellite Internet Router.

Extreme Protection Built to Last

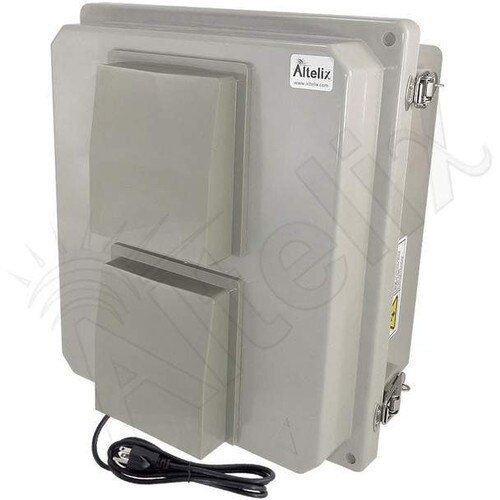

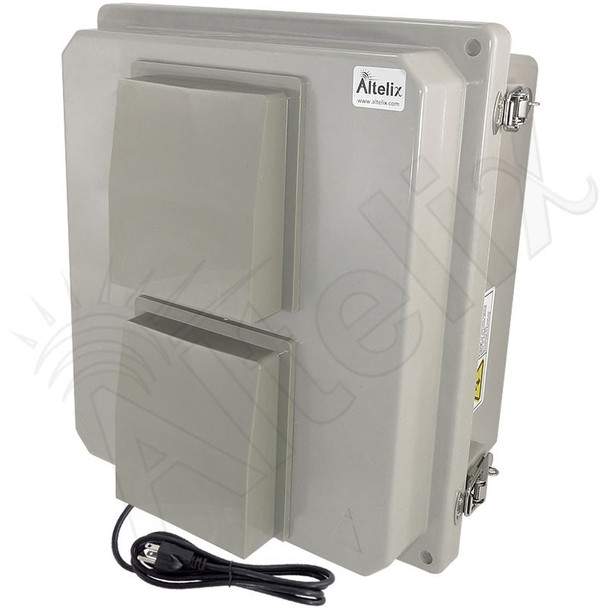

This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent so that it will not interfere with the WiFi signal range or coverage pattern of the Starlink® WiFi Router. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Starlink® is a trademark or registered trademark of Space Exploration Technologies Corp.

What's in the Box:

• Altelix Enclosure
• Incl. Stainless Steel Mounting Feet. Optional Pole Mount Available.
• (4) Pre-Wired 120VAC Outlets
• Removable 120VAC Power Terminal Block
• Includes Cable Glands
• Two (2) 4" Vents with Rain Shields and Screens
• Thermostat Controlled Cooling Fan
• Pre-wired 5 foot 3-Prong Power Cord
• Includes multi-function cradle designed to mount both the Starlink® Router (Gen 2) and Starlink® Ethernet adapter
• Includes Integral cable management for Starlink® cables
• Includes Thermostat Controlled 200W Heating System

Features

• Multi function cradle designed to mount both the Starlink® Router (Gen 2) and Starlink® Ethernet adapter
• Integral cable management for Starlink® cables
• Plug-and-Play design, no electrical wiring required
• Thermostat controlled 200W heating system
• Thermostat controlled cooling fan with (2) 4” vents with rain shields and screens
• (4) Pre-wired 120VAC power outlets with pre-wired 5 ft. 3-prong power cord
• Rugged RF transparent fiberglass reinforced polyester FRP construction
• Weatherproof, UV stable and highly corrosion resistant
• Stainless steel hinge and quick release latches with padlock hasps
• NEMA Type 3R, 3RX / IP24 rated
• Includes cable glands and stainless steel enclosure mounting feet
• Optional pole mounting kit available

Applications

• Starlink® Satellite Router (Gen 2) - Model UTR-211
• Starlink® WiFi Mesh Node
• Protection of Starlink® Satellite Internet Router from Theft or Damage
• Concealment of Equipment
• Retail and Commercial Networks
• Rapid Deployment
• Emergency Networks
• Harsh Environments
