Altelix NF14VFHA1C-STK2-UBQ2 - Fiberglass Weatherproof Starlink® / Ubiquiti® Mesh Access Point Enclosure with Heater, Cooling Fan, 120 VAC Outlets & Power Cord

Altelix Fiberglass Weatherproof Starlink® / Ubiquiti® U6-Mesh Enclosure with Heater, Cooling Fan, 120 VAC Outlets & Power Cord

Industrial Grade Protection and Easy Deployment

Designed to combine two industry-leading technologies, Starlink® Internet and Ubuquiti® Mesh technology into a secure single-box weatherproof solution, this heated and fan cooled enclosure is ideal for rapid deployment because no wiring is required. Simply mount the enclosure and plug the pre-wired 5 foot power cord into a nearby outlet. The aluminum equipment mounting plate features four pre-wired 120VAC power outlets.

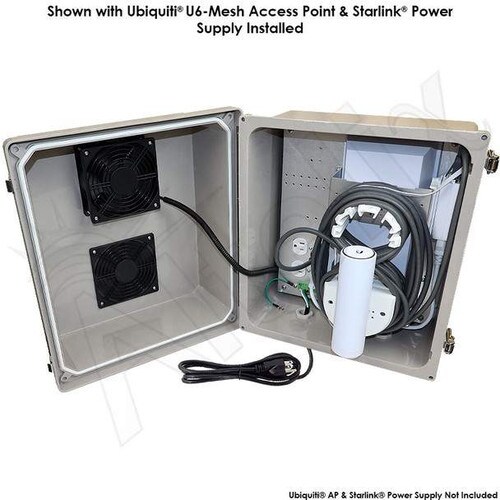

Install the Ubiquiti® Mesh Access Point and Starlink® Devices into a Single Enclosure

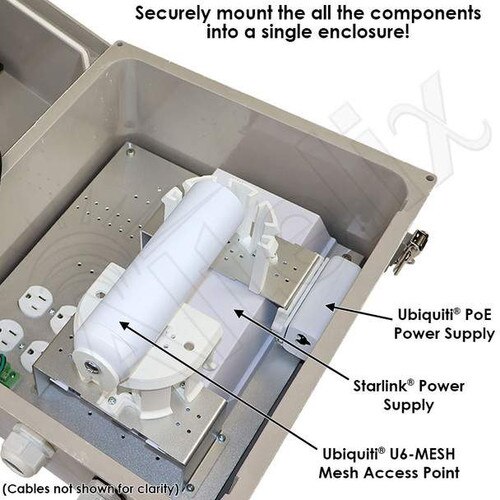

This enclosure features our specialized mounting system which integrates the Starlink® and Ubiquiti® devices into a single unified bracket that also provides cable management as well as provision for the Ubiquiti® PoE Power Supply. This provides the ultimate protection of these sensitive components and simplifies deployment.

Multiple Amazon Ubiquiti® Mesh Access Points Models Supported

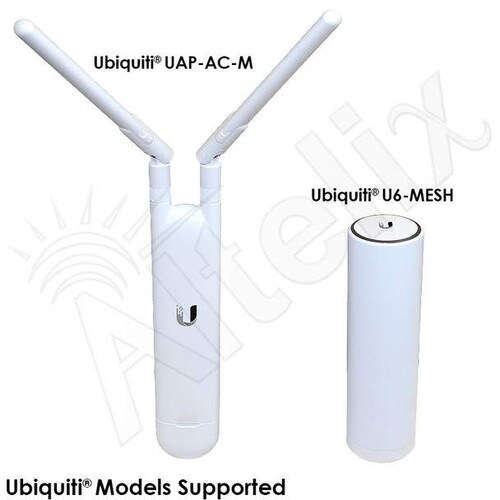

This enclosure is available is in two configurations. The Ubuquiti® mesh routers supported is as follows:

• Ubiquiti UniFi® U6-MESH
• Ubiquiti UniFi® UAP-AC-M

Fan Cooling with Thermostat Control
This enclosure features two 4" vents and a thermostat controlled cooling fan which helps maintain lower internal temperatures. The fan turns on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Rain shrouds keep rain water from entering the enclosure while allowing ventilation for installed equipment. The fan is wired internally, leaving all the power outlets available for the Starlink® Router and power supply.

200W Thermostat Controlled Heater
This enclosure is equipped for harsh weather and cold environments. It features a thermostat controlled 200W heating system. The heater turns on when the internal temperature reaches 43°F (6°C) and turns off when it rises to 59°F (15°C). The heater is mounted below the equipment plate and wired internally which leaves the interior space and power outlets available for the Starlink® router and power supply.

Extreme Protection Built to Last
This rugged JIC style NEMA box is molded from durable UV stable and corrosion resistant fiberglass reinforced polyester (FRP) with a UL94-5V flame rating. The FRP material is dent-proof, non-conductive and RF transparent so that it will not interfere with the WiFi signal range or coverage pattern of the Ubiquiti® Mesh Access Point. It can be easily drilled and modified by the installer as needed. It features a gasketed door with stainless steel continuous hinge and stainless steel quick release latches with padlock hasps.

Mounting
Stainless steel brackets are included for secure wall mounting. Optional flange and pole mounting kits are available.

Customization
We offer custom enclosures for WiFi equipment, DIN Mount Industrial Controls, Telephone Call Boxes, IP Phones, Security & Safety, Building Automation and More. Options include equipment mounting plates, DIN rails, AC/DC power, vents, cooling fans, heaters. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.

Starlink® is a trademark or registered trademark of Space Exploration Technologies Corp., Ubiquiti UniFi® is a trademark or registered trademark of Ubiquiti Networks, Inc.

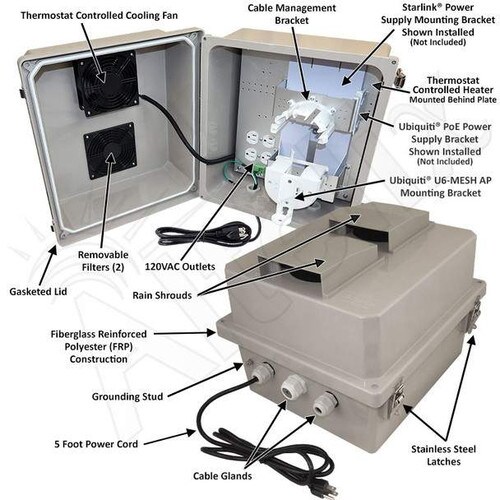

Features

• Single Enclosure Solution Combining the Ubiquiti UniFi® Mesh Access Points and Starlink® In-Motion Antenna Power Supply
• Enclosure Models Available For Use with Ubiquiti UniFi® UAP-AC-M and Ubiquiti UniFi® U6-MESH Mesh Access Points
• Complete Pre-engineered Turnkey Solution that Includes all Brackets and Hardware Needed to Mount the Equipment Without the Need For Any Drilling

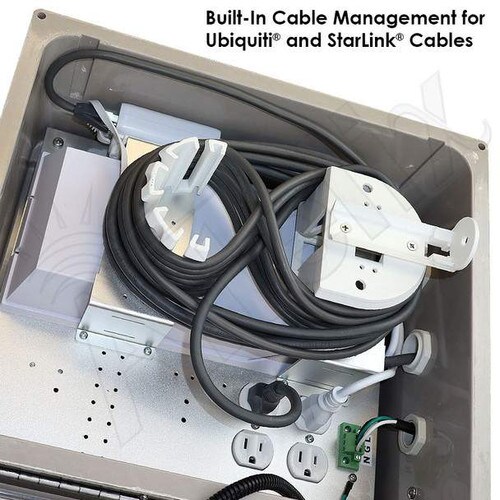

• Integral Cable Management for Ubiquiti® and Starlink® Cables
• Custom Cable Glands Allow Pre-Terminated Cables to Be Feed Into the Enclosure
• Plug-and-Play Design, No Electrical Wiring Required
• Thermostat Controlled 200W Heating System
• Thermostat Controlled Cooling Fan with (2) 4” Vents with Rain Shields and Screens
• (4) Pre-wired 120VAC Power Outlets with Pre-wired 5 ft. 3-Prong Power Cord
• Rugged RF transparent fiberglass reinforced polyester FRP construction
• Weatherproof, UV stable and highly corrosion resistant
• Stainless steel hinge and quick release latches with padlock hasps
• NEMA Type 3R, 3RX / IP24 rated
• Includes cable glands and stainless steel enclosure mounting feet
• Optional pole mounting kit available

Applications

• Mesh Networks using Starlink® In-Motion System and Ubiquiti UniFi® UAP-AC-M or U6-MESH Mesh Access Points
• Protection of Starlink® and Ubiquiti® Components from Theft or Damage
• Concealment of Equipment
• Retail and Commercial Networks
• Rapid Deployment
• Emergency Networks
• Harsh Environments
