Altelix NMHX-300-16 - Heavy Duty Stainless Steel Pole Mount Kit for NF141206, NF141208, NF141210, NS161212, NX161212 & NFC161208 Series NEMA Enclosures

Altelix Heavy Duty Stainless Steel Pole Mount Kit for Altelix NF141206, NF141208, NF141210, NS161212, NX161212 & NFC161208 Series NEMA Enclosures (NMHX-300-16)

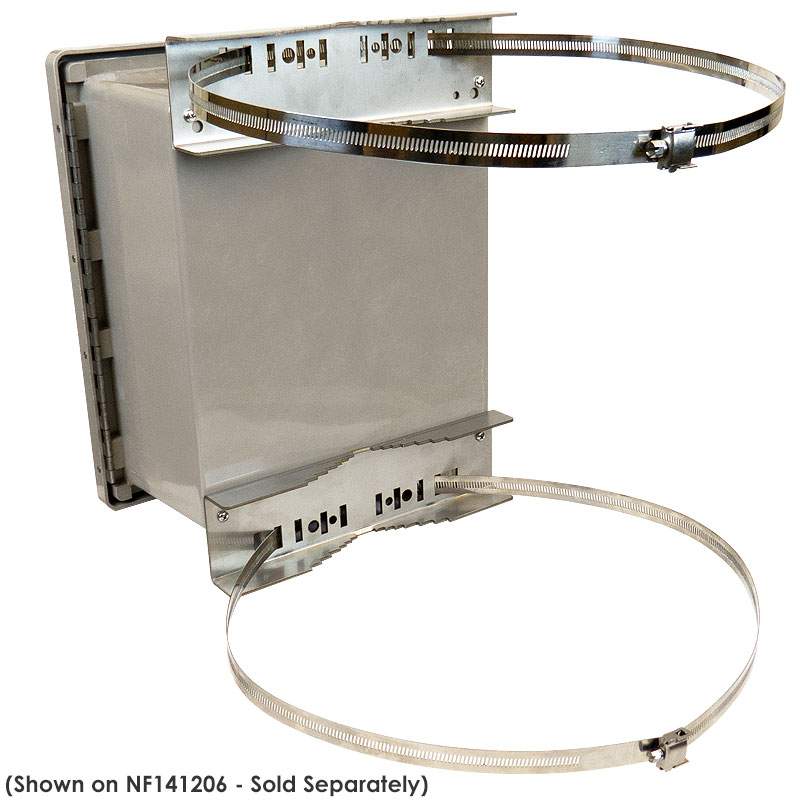

The Altelix NMHX-300-16 Pole Mount Kit attaches to the rear of our NF, NFC, NS and NX series NEMA enclosures. These heavy-duty stainless steel brackets allow the enclosures to be mounted to poles 1.7 to 16 inches (44.4 to 406.4mm) in diameter using the included heavy duty 304 stainless steel adjustable bands. The mounting bracket features multiple locations to thread the stainless steel bands so that small to large poles can be accommodated.

Heavy-Duty Construction
The NMHX series pole mounts kits are designed for rugged all weather installations. The (2) included mounting brackets are constructed from 14 gauge (0.08 inch thick) stainless steel. To mount to the pole this kit includes (2) heavy duty 19 gauge 304 stainless steel adjustable bands. 40% wider then standard adjustable bands, these 0.7 inch (18mm) wide bands feature a heavy-duty European worm gear design which is stronger than standard hose clamp gears.

The NMHX-300-16 kit includes:

• (2) 14 gauge stainless steel mounting brackets
• (2) 304 stainless steel adjustable 16" diameter bands

The NMHX-300-16 is for use with the following enclosures:

• NF141206 Series FRP Enclosure
• NF141208 Series FRP Enclosure
• NF141210 Series FRP Enclosure
• NFC161208 Series FRP Enclosure
• NS161212 Series Steel Enclosure
• NX161212 Series Stainless Steel Enclosure

Features:

• Includes (2) 14 Gauge Heavy-Duty Stainless Steel Mounting Brackets

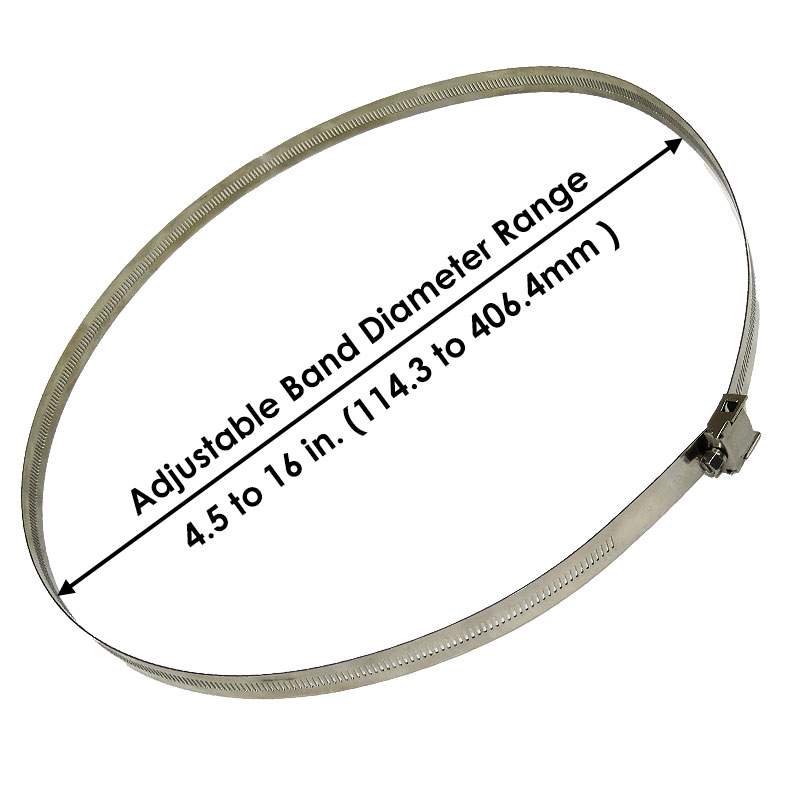

• Includes (2) Heavy-Duty 304 Stainless Steel 16 inch Adjustable Bands for Mounting to Poles 1.7 to 16 inches (44.4 to 406.4mm) in Diameter
• Easily Attaches to Rear of Enclosure

Applications:

• Pole Mount Installations
• NF141206 Series
• NF141208 Series
• NF141210 Series
• NFC161208 Series
• NS161212 Series
• NX161212 Series
