Altelix NHM20A-A1C - Power Module with Two Duplex 120VAC Outlets for NS242012, NS242412, NS242416, NX242416, NS242424, NS282416 and NS322416 Enclosures
- Brand: Altelix
- P\N: NHM20A-A1C
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Description
The Altelix NHM20A-A1C Power Module with 120VAC Outlets is designed for use with the Altelix NS Series painted steel enclosures and NX Series stainless steel enclosures. This power module is a direct replacement for the steel access panel included with the NS and NX enclosures.
Power Module

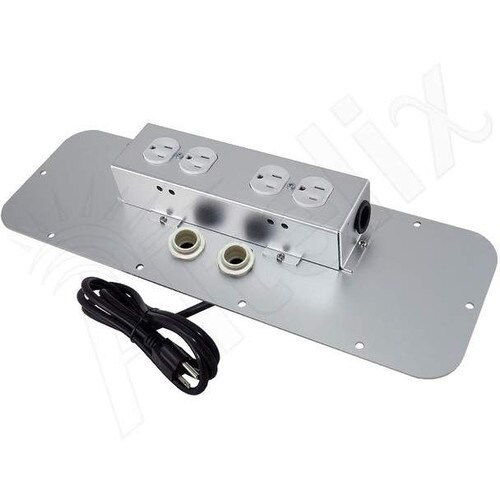

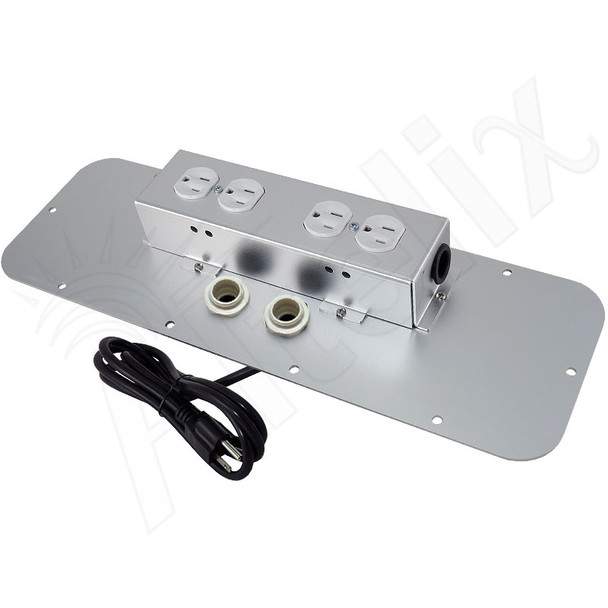

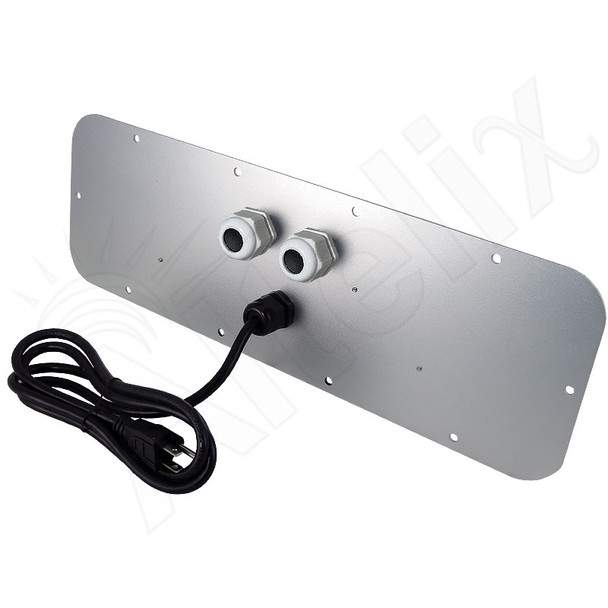

The NHM20A-A1C is constructed from 0.10" (2.5mm) thick aluminum and features two pre-wired duplex 120VAC power outlet (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.
The NHM20A-A1C is for use with the following enclosures:
- NS242012 Series
- NS242412 Series
- NS242416 Series
- NX242416 Series
- NS242424 Series
- NS282416 Series
- NS322416 Series
| Panel Material | Aluminum |
| Panel Thickness | 0.10 in. (2.5 mm) |
| Voltage | 120VAC |
| Power Cord Length | 5 Feet (1.5m) |
| Hole Diameter for Cable Gland | 0.875 in. (22.2 mm) |
| Cable Gland - Cable Diameter Range* | 0.1" to 0.3" (2.5 to 7.6mm) |
| Max. Connector Size That Can Pass Through Cable Gland | 0.5" (12.7mm) Wide |
| *Note: For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland. |
