Altelix NHBS-RACK-NF1620-CR - Space Saver 19" Wide Wall Mount Slanted Equipment Rack with 1U Cable Management Raceway

Brand: Altelix
P\N: NHBS-RACK-NF1620-CR

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Altelix Space Saver 19” Wide Wall Mount Slanted Equipment Rack

Space Saving Design

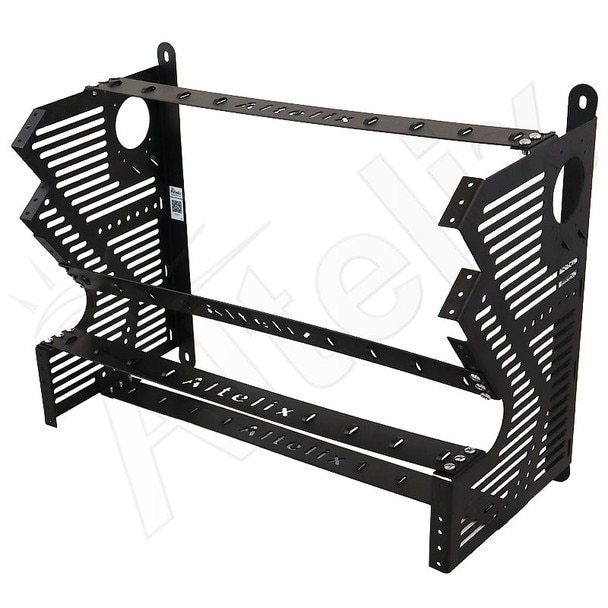

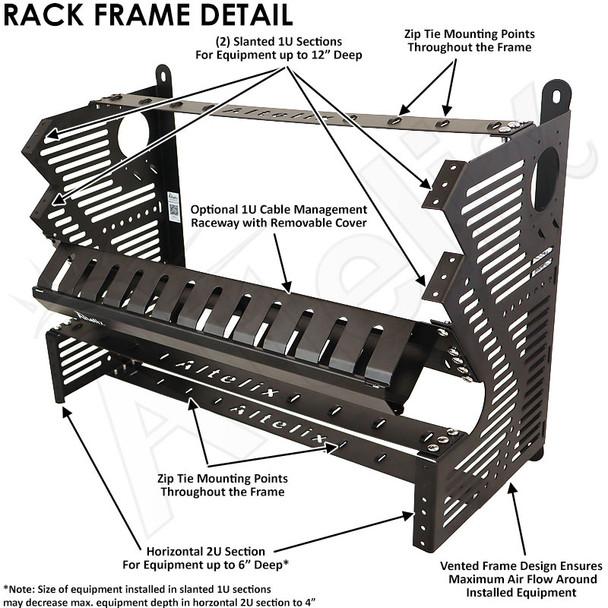

The NHBS-RACK-NF1620 is a standard EIA-310 compliant 19" wall mount equipment rack frame that features a unique space saving design to accommodate rack mount equipment up to 12” inches deep in a rack only 9” inches deep. Two 1U slanted sections are provided for 12” deep equipment as well as one horizontal 2U section for equipment up to 6” inches* deep. Constructed from heavy duty powder coated steel, additional features included zip tie mounting points throughout the rack frame for cable management and vented side panels ensure maximum air flow around installed equipment. In additional to the slanted 1U and horizontal 2U locations, a separate location is provide for an optional 1U cable management raceway to be installed.

*Installation Note: Size of equipment installed in the slanted 1U sections may decrease max. equipment depth in horizontal 2U section to 4" inches deep.

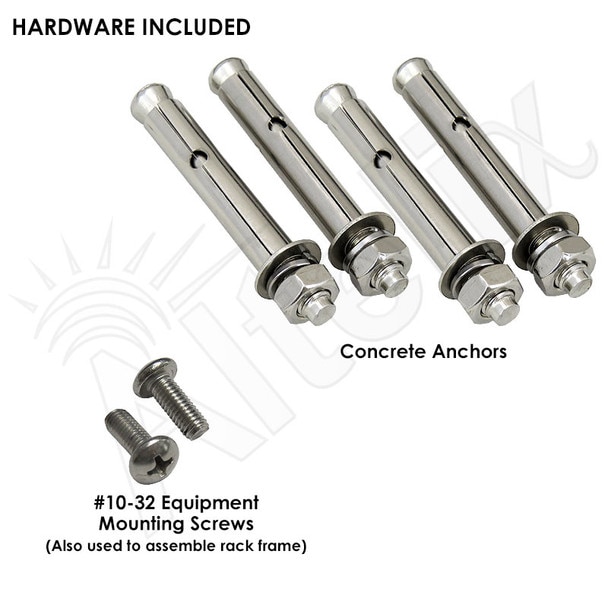

Included with the NHBS-RACK-NF1620 are #10-32 Screws for mounting equipment and rack assembly and (4) Concrete Anchors.

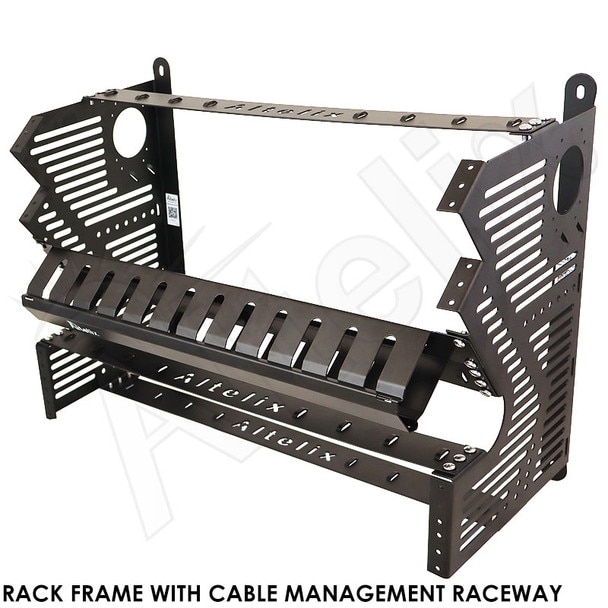

Optional Cable Management Raceway
A 1U cable management raceway is also available with this equipment rack. A separate mounting location is provided on the rack frame leaving the other locations free for equipment to be mounted.

Additional Rack Frames Available
2U, 4U, 6U and 8U vertical and horizontal wall mount 19" equipment rack frames are also available from Altelix.

Features

Features

Space Saving Design, Only 9" Deep
(2) 1U Slanted Sections for Equipment up to 12" Deep and (1) 2U Horizontal Section for Equipment up to 6" Deep*
Heavy Duty Steel Construction and Powder Coat Finish
Rack Frame Only 9" Deep
Includes #10-32 Screws for Mounting Equipment and Concrete Anchors
Vented Frame Design Ensures Maximum Air Flow Around Installed Equipment
Optional 1U Cable Management Raceway Available
Easy to Assemble
EIA-310 Compliant

Applications

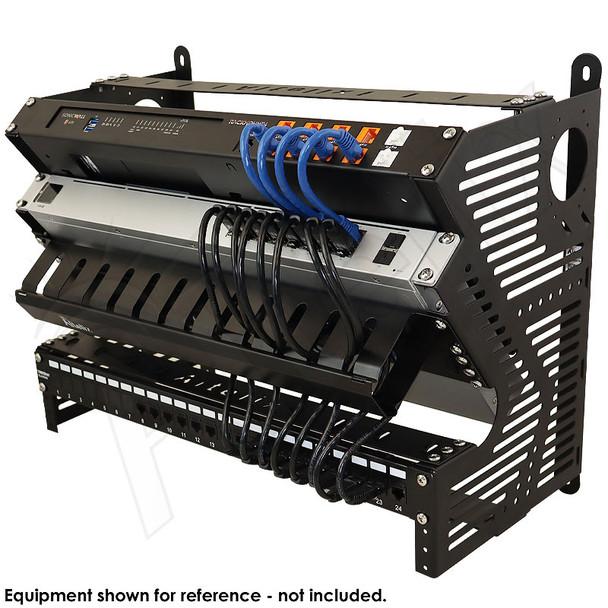

19" Rack Mountable Equipment
Rack Mountable Audio/Video Equipment
Networking Equipment
Rack Mounted Power Strips
Ideal for Use in NEMA Enclosures and Cabinets

Specifications

Material	16 Gauge (1.5mm) Steel
Finish	Black Powder Coated
Rack Frame Size	19 inch Wide
Equipment Spaces	(2) Slanted 1U Sections (1) Horizontal 2U Section
Rack Frame Threaded Hole Size	#10-32

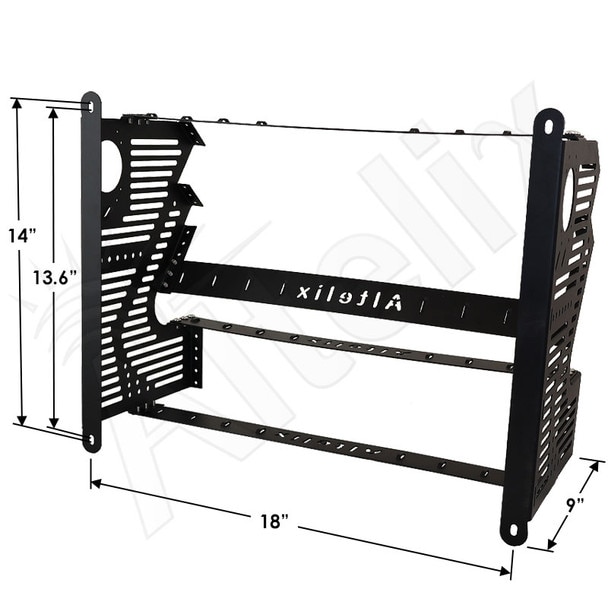

Rack Frame Depth	9 inch (228.6 mm)
Rack Weight	6.0 lbs. (2.7 kg)
Industry Standards	EIA-310
