Altelix NHPS2416S-BAT - Steel Battery/Utility Shelf with Adjustable Battery Hold Down for NS Enclosures
- Brand: Altelix
- P\N: NHPS2416S-BAT
Live Chat
Contact Us
Description
Description

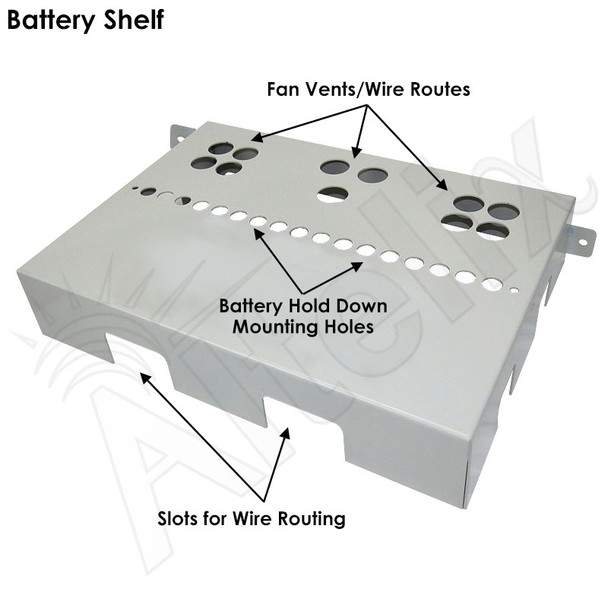

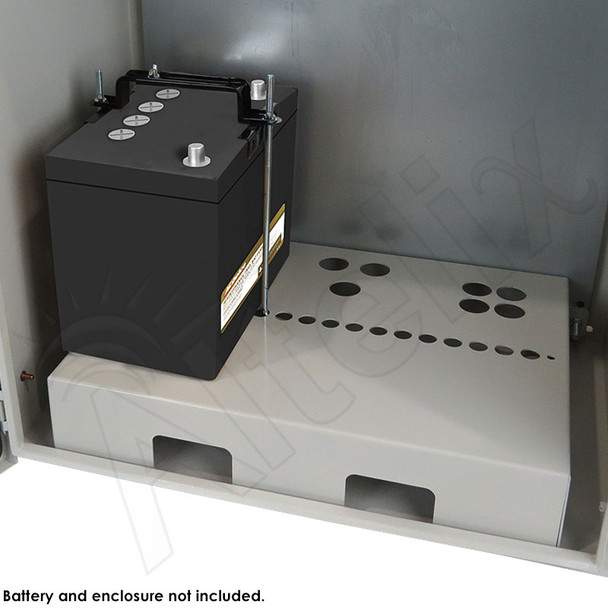

The Altelix NHPS2416S-BAT is a battery/utility shelf for use with the NS Series Steel enclosures. Featuring heavy duty powder coated steel construction, it easily mounts inside the enclosure using existing hardware. Cutouts in the shelf are provided for wiring.

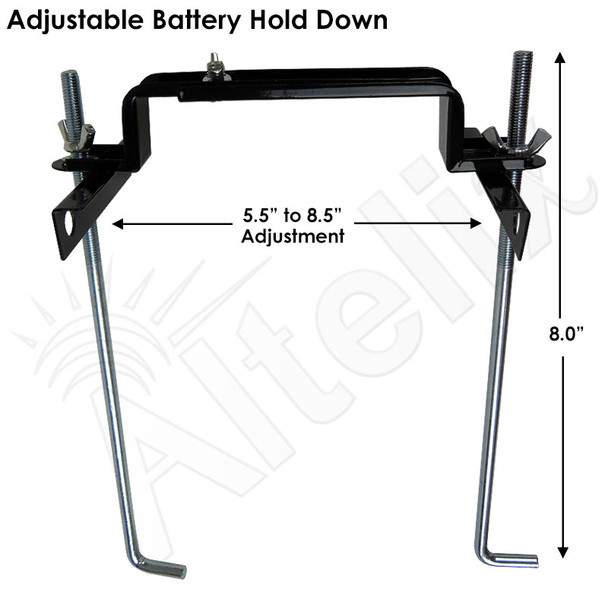

Included is (1) adjustable battery hold down. Used to secure a battery to the shelf, this hold down adjusts from 5-1/2" to 8-1/2" wide with an adjustable top hold down (8" bolt height). Multiple mounting holes are provided in the shelf for the battery hold down. Additional battery hold downs can be purchased from Altelix (see below).
The NHPS2416S-BAT can be used with the following enclosures:
- NX242416 Series
- NS242416 Series
- NS242424 Series
- NS282416 Series
- NS322416 Series
Features
- Heavy Duty Steel Construction and Powder Coat Finish
- Easily Mounts into NS Series Steel Enclosures using Existing Hardware
- Includes (1) Adjustable Battery Hold Down
Applications
- Solar Equipment
- Vehicle Mounted Equipment
- Battery Powered Equipment
- Battery and Charger Box
| Material | 13 Gauge (2.3mm) Steel |
| Color | Light Gray |

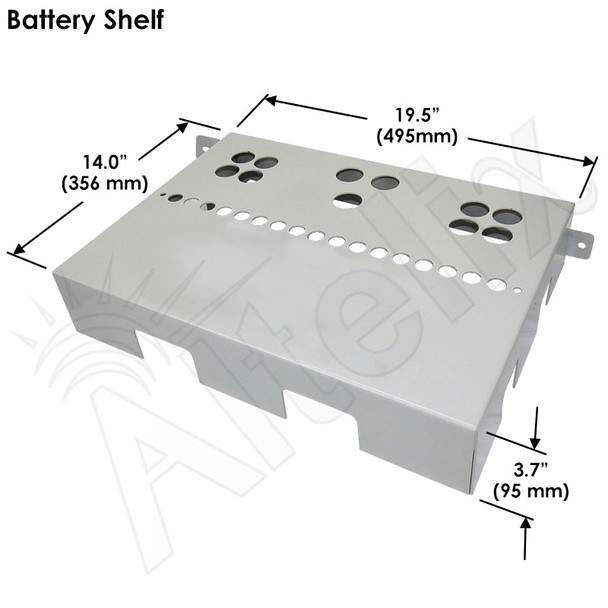

| Shelf Size (Width x Depth x Height) | 19.5 x 14.0 x 3.7 In. (495 x 356 x 95 mm) |
| Weight | 10.3 lbs. (4.7 kg) |
