Altelix Vented Aluminum Access Panel for NS121006 Enclosures
- Brand: Altelix
- P\N: NHM10A-V
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Description

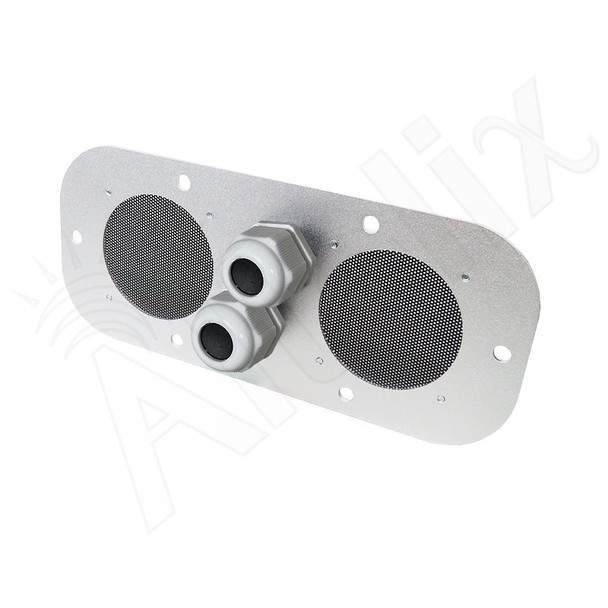

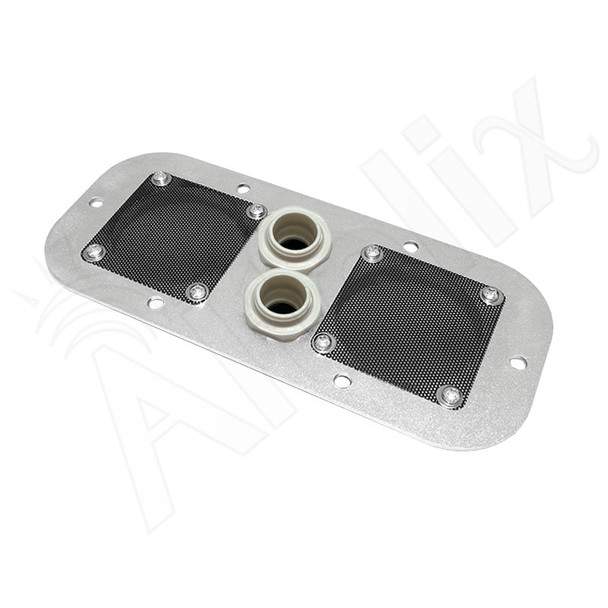

The Altelix NHM10A-V Vented Aluminum Access Panel is designed for use with the Altelix NS121006 Series painted steel enclosures. This panel is a direct replacement for the steel access panel included with the NS enclosures. It features (2) 3" vents with screens which are removable for cleaning. In addition, (2) cable glands are provided for any wiring requirements.
The NHM10A-V is constructed from 0.10" (2.5mm) thick aluminum and features a textured finish.
The NHM10A-V is for use with the following enclosures:
- NS121006 Series
| Access Panel Material | Aluminum |
| Access Panel Thickness | 0.10 in. (2.5 mm) |
| Hole Diameter for Cable Gland | 0.875 in. (22.2 mm) |
| Cable Gland - Cable Diameter Range* | 0.1" to 0.3" (2.5 to 7.6mm) |
| Max. Connector Size That Can Pass Through Cable Gland | 0.5" (12.7mm) Wide |
| *Note: For applications requiring larger cable diameters, the Altelix cable gland can be replaced with a standard PG-16 cable gland. |
