Altelix NP14GYVA1C-WEXT-03 - Weatherproof Vented WiFi Enclosure for Cisco® CBW151AXM WiFi Extender
- Brand: Altelix
- P\N: NP14GYVA1C-WEXT-03
Do you have questions?
Please contact our experts for assistance.
Description
Altelix Weatherproof Vented WiFi Enclosure for Cisco® CBW151AXM WiFi Extender
Extend Your Wireless Coverage to Outdoor Locations

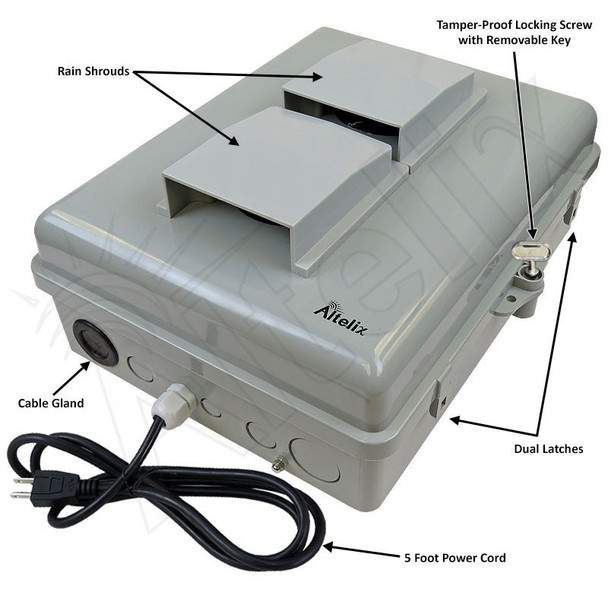

The Altelix WiFi Extender Enclosure is a vented weatherproof enclosure designed to provide added security from vandalism and protection from harsh environments, while allowing ventilation for the Cisco® CBW151AXM WiFi Extender. It features two 3" inch air vents with rain shields and screens.
Rugged Polycarbonate + ABS Construction

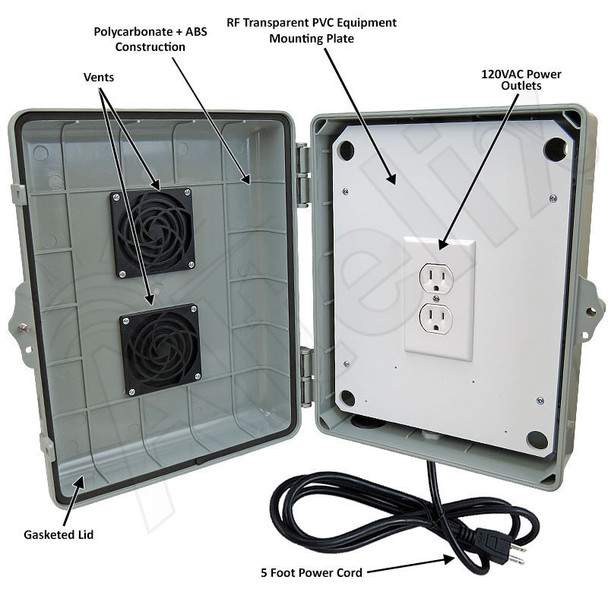

This sleek enclosure is molded out of UV resistant Polycarbonate + ABS, an industrial grade plastic with greater strength and durability than standard ABS. It features a gasketed hinged door with dual latches, a stainless steel security screw and provision for padlock. Integrated mounting feet simplify installation. It meets or exceeds NEMA 3R, 3RX and IP24.
Plug and Play Setup

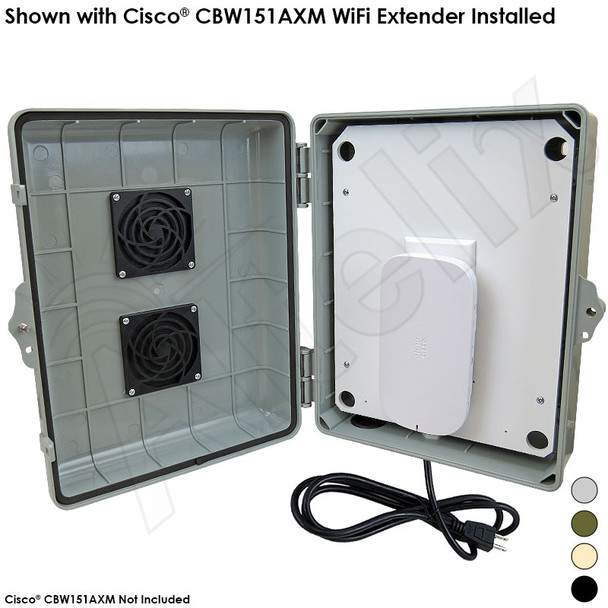

The Altelix WiFi Extender enclosure provides easy plug-n-play installation. Once the enclosure is mounted, plug the Cisco® CBW151AXM into the pre-wired 120VAC power outlet. Then plug the enclosure's 5 foot power cord into a 120VAC power outlet and you are up and running. A cable grommet on the enclosure allow cables to be connected to the device if needed.
RF Transparent Design
The non-metallic design of the enclosure and equipment mounting plate is RF transparent and will not interfere with the WiFi signal range or coverage pattern of the Cisco® CBW151AXM WiFi Extender.
Complete with Cable Grommets and Glands and Wire Management Straps
For convenience, the included accessory kit contains cable grommets and glands, wall anchors, zip ties, hook-and-loop wire management straps, door locking key and more.
Mounting
The enclosure can be wall mounted using the included wall anchors. An optional pole mount kit is also available for installation on poles up to 8 inches in diameter.
Features
- Designed to fit the Cisco® CBW151AXM WiFi Extender
- Plug-and-Play Design, Easy to Install
- Dual 3" Vents with Rain Shields to Expel Heat
- Features a RF Transparent PVC Non-Metallic Equipment Mounting Plate
- Pre-Wired 120VAC Power Outlet with 5 foot Power Cord
- Includes Wall Mounting Hardware
- NEMA Type 3R, 3RX / IP24 Rated
- Weatherproof and UV Stable
- Durable Polycarbonate + ABS Construction
- Gasketed Lid Featuring a Tamper-Proof Locking Screw with Key and Provision for Padlock
- Optional Pole Mount Kit Available
Applications
- Protection of the Cisco® CBW151AXM WiFi Extender from Theft or Damage
- Extend Wirless Coverage to Outdoor Locations
- Concealment of Equipment
- Deployment of Hospitality Wireless Networks
- Retail and Commercial Wireless Networks
Cisco® is a trademark or registered trademark of Cisco Systems, Inc.
