Atlona 16x4 Professional VGA with Audio Matrix Switch (AT-VGA1604-A )

Atlona 16x4 Professional VGA with Audio Matrix Switch.

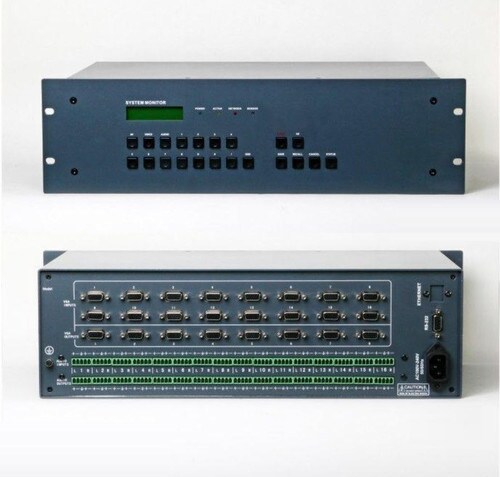

The Atlona AT-VGA1604-A is an 16 input 4 output Commercial VGA with Audio matrix switcher. The AT-VGA1604-A is one of the world&39;s advanced matrix switchers. Is is capable of being controlled though RS232 via software included or via a third party control system. Switcher is designed to handle any resolution up to UXGA (1600x1200) without any signal degradation. The switcher is capable of routing audio signals in a different matrix then video if applicable.

This device is mainly used in broadcast room, multi council-chamber, television teaching room and command center.

Key Features:

• Power-Fail Protection, allows switcher to restore previous settings
• LCD display, shows all programmed commands and switcher responses
• Preset ability, allows user to save specific tasks under one of the 10 presets and call it back with shortcut
• RS232 Communication Control Input, allows to control switcher via included advanced Control software or Third Party Control System
• IR Remote Control
• Audio and Video could have a separate matrix modes (Example: Video in 1 ---> Video Out 2, while Audio in 1---> Audio Out 3)
• Inputs: 16 x VGA female15-pin HD, 16 x screw audio terminals for balanced or unbalanced audio (Phoenix Connectors)
• Outputs: 4 x VGA female 15-pin HD, 4 x screw audio terminals for balanced or unbalanced audio (Phoenix Connectors)
• Connectors: 15-pin HD (Could be used for PC resolutions up to UXGA - 1600x1200 or HDTV up to 1080p)
• Compatible Formats: RGB, YPrPb or RGBHV
• Lock Safe, allows user to lock unit from being accidentally switched to incorrect mode
• Undo Function, allows user to undo the incorrect operation and return to the previous setting
• Standard 19&39;&39; Rack Mount Size - 3U

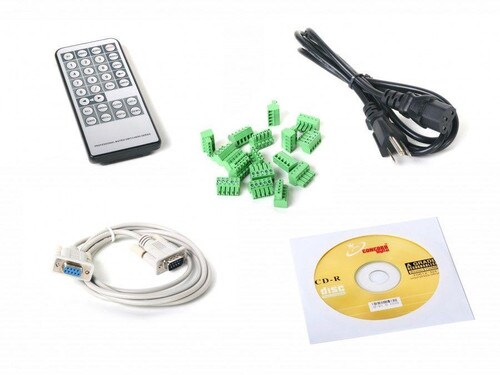

What's in the box:

• 1 x AT-VGA1604-A
• 1 x RS-232 Communication Cord
• 1 x Power Supply Cord (US)
• 1 x CD with RS232 Application Software
• 1 x IR Remote
• 20 x Phoenix Connectors for Audio
• 1 x User's Manual and Quality Guarantee
