BZBGEAR 4K 18Gbps HDMI Extender with Bi-directional IR/PoC/ARC and Audio De-embedding up to 230ft

  • Brand: BZBGEAR
  • P\N: BG-EXH-70C3
  • UPC: 850033687491
(0)No Reviews yet

Availability: In Stock

Your Price: $299.00

Do you have questions?

Please contact our experts for assistance.

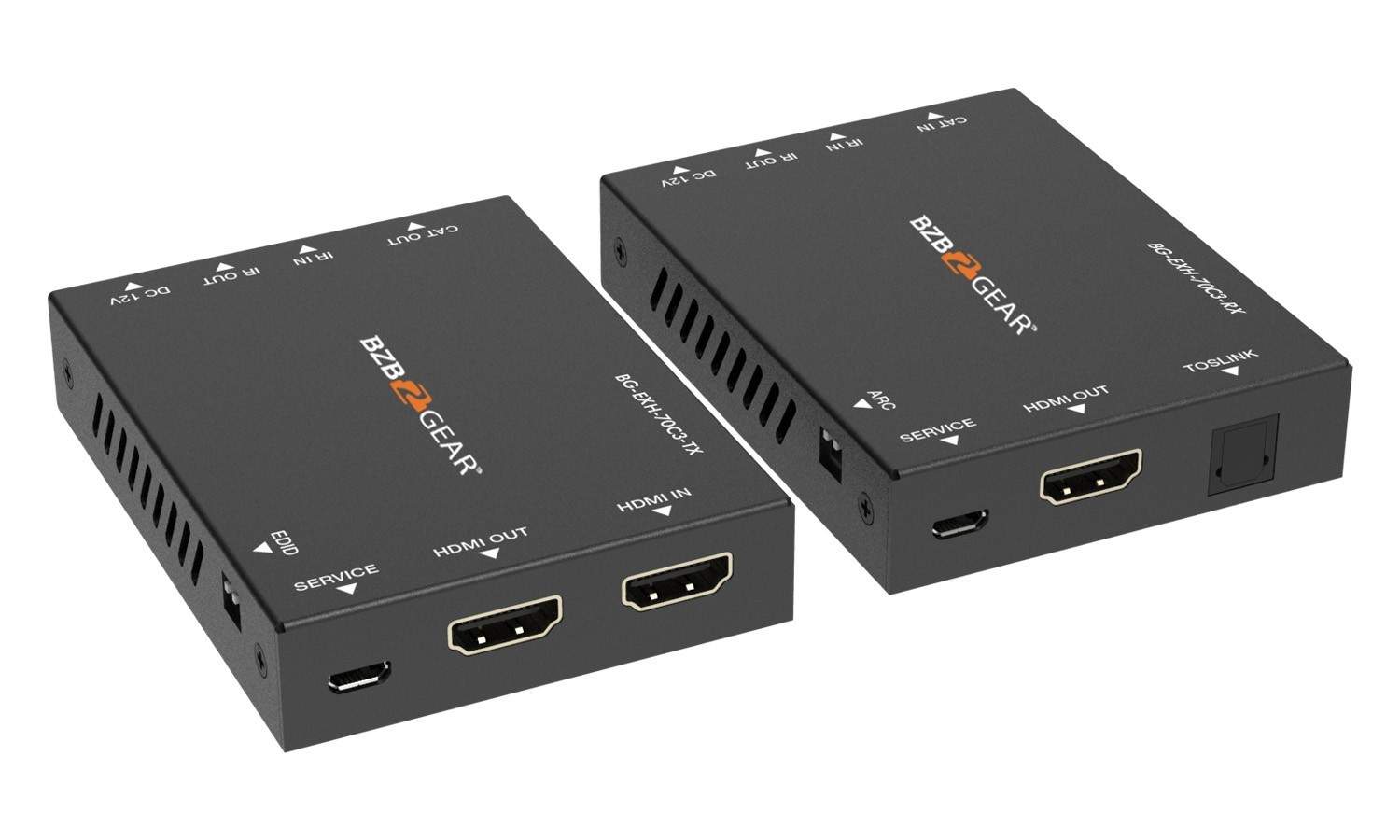

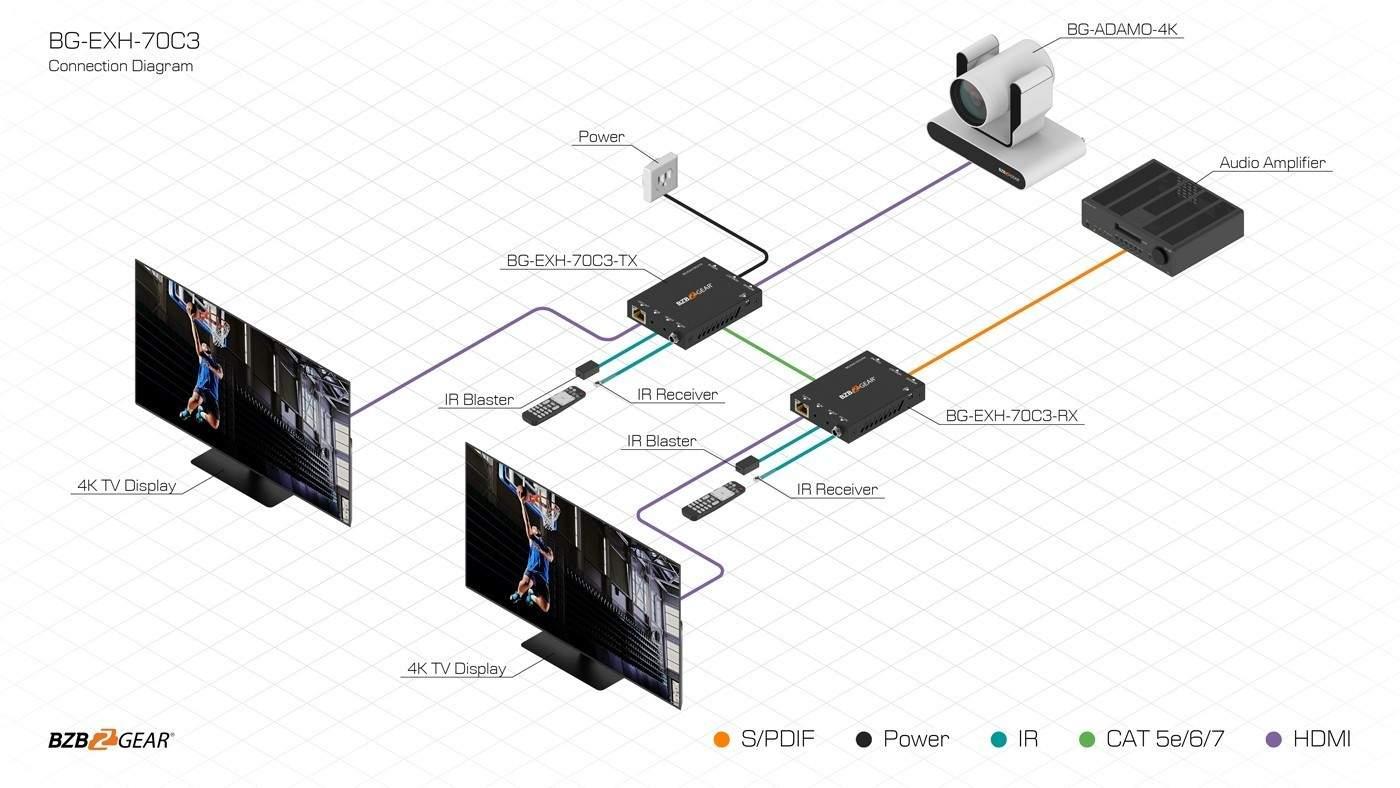

Introducing the BG-EXH-70C3, the ultimate solution for extending your HDMI signals over a long distance of up to 70m / 230ft. This extender is a highly efficient device that converts your HDMI signal to standard HDBaseT and transmits it via single CAT5e/6 ethernet cable.

With a bandwidth of 18Gbps, the device is compliant with HDMI 2.0b and HDCP 2.2 standards. The video resolution that can be achieved using this extender is up to 4K2K @ 60Hz RGB/YCBCR 4:4:4, which ensures that you enjoy crystal clear images and vibrant colors.

The BG-EXH-70C3 also supports bi-directional IR and RS-232 control signal pass-through, which enables you to easily control signal source or display devices from a remote location. Additionally, the device supports ARC functionality, which makes it possible to transmit audio signals from your TV back to your home theater system without the need for an extra cable.

This extender also supports PoC (Power over Cable) functionality, which means that you need to plug the power source only from one side for the extender kit to work. Moreover, the BG-EXH-70C3 comes equipped with advanced EDID management, which ensures that your video source always communicates with your display device seamlessly.

In terms of audio support, the device can handle various formats, including Dolby 5.1, DTS 5.1, and PCM2.0, etc. Lastly, the compact design of this device ensures that it can be easily and flexibly installed, making it an ideal solution for any home or office.


  • HDMI Loop-out: Loop-out to view content locally at transmitter side
  • Bi-Directional IR: Control devices via IR either from the receiver or transmitter
  • Rich Color Contrast: HDR, HDR10, HDR10+, Dolby Vision, and HLG supported
  • 4K: Stunning Image Quality with Crystal clear images at 4K 60Hz 4:4:4
  • Power Over Cable: Power only needs to be supplied to either the transmitter or receiver allowing for easier installation
  • Compliant: HDMI 2.0b and HDCP 2.2 supported to ensure content protection
  • Audio Formats: LPCM 7.1, Dolby True HD, DTS HD Master
  • EDID copy pass-through
  • ARC and audio de-embedding through S/PDIF optical port on receiver


HDMI Compliance: HDMI 2.0b

HDCP Compliance: HDCP 2.2

Video Bandwidth: 18Gbps

Video Resolution: Up to 4K2K@60Hz RGB/YCBCR 4:4:4

IR Level: 5Vp-p

IR Frequency: Wideband 20K-60KHz


HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2
Video Bandwidth18Gbps
Video ResolutionUp to 4K2K@60Hz RGB/YCBCR 4:4:4
IR Level5Vp-p
IR FrequencyWideband 20K-60KHz
Transmission Distance4K2K@60Hz 4:4:4–70m, 1080P–70m (CAT6/6a cable)
Color SpaceRGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
Color Depth8/10/12bit
HDRHDR, HDR10, HDR10+, Dolby Vision, HLG
Audio FormatsHDMI: LPCM 7.1CH, Dolby True HD, DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0

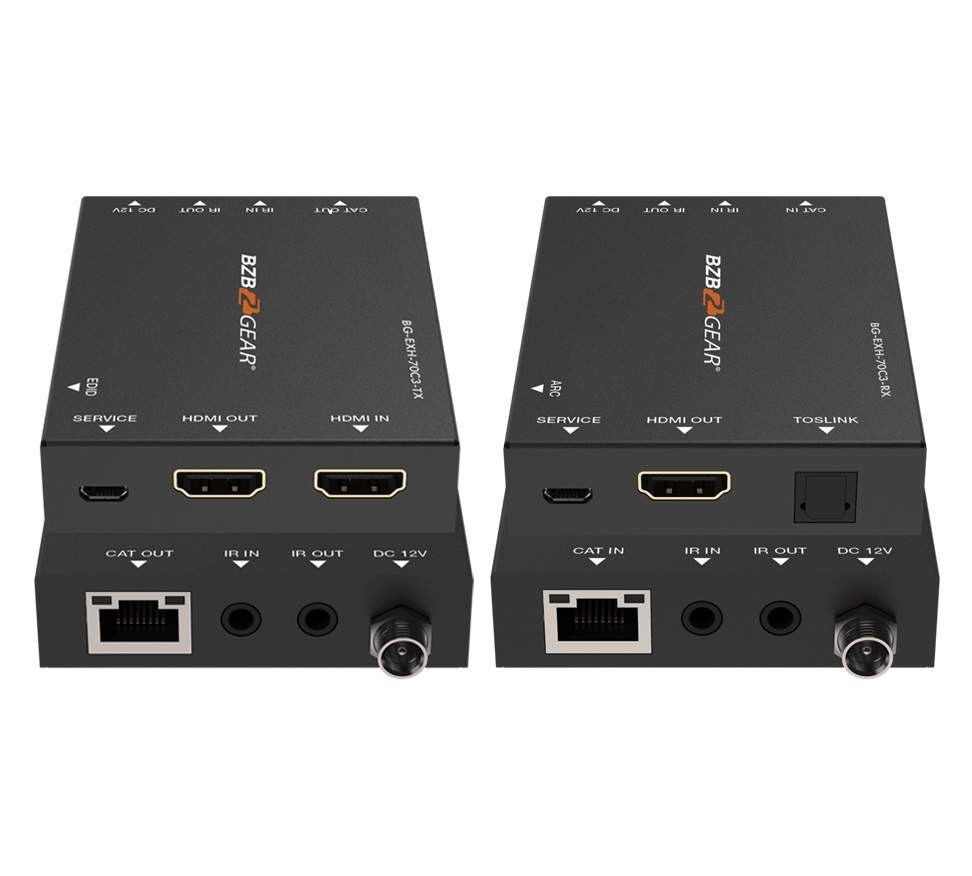

TransmitterInput: 1× HDMI IN [Type A, 19-pin female]
Output: 1× HDMI OUT [Type A, 19-pin female] / 1× CAT OUT [RJ45]
1× SERVICE [Micro-USB jack]
1× IR IN [3.5mm Stereo Mini jack]
1× IR OUT [3.5mm Stereo Mini jack]

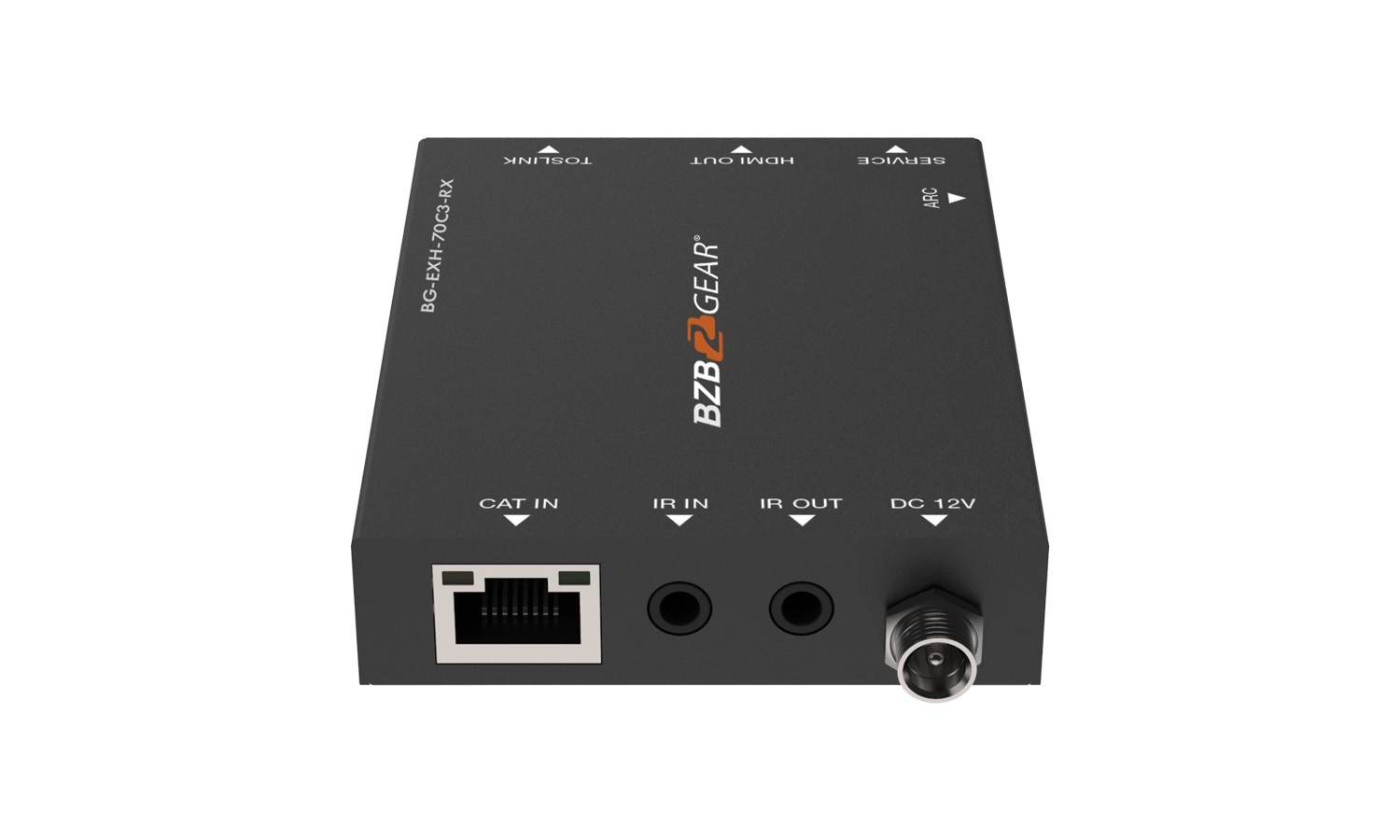

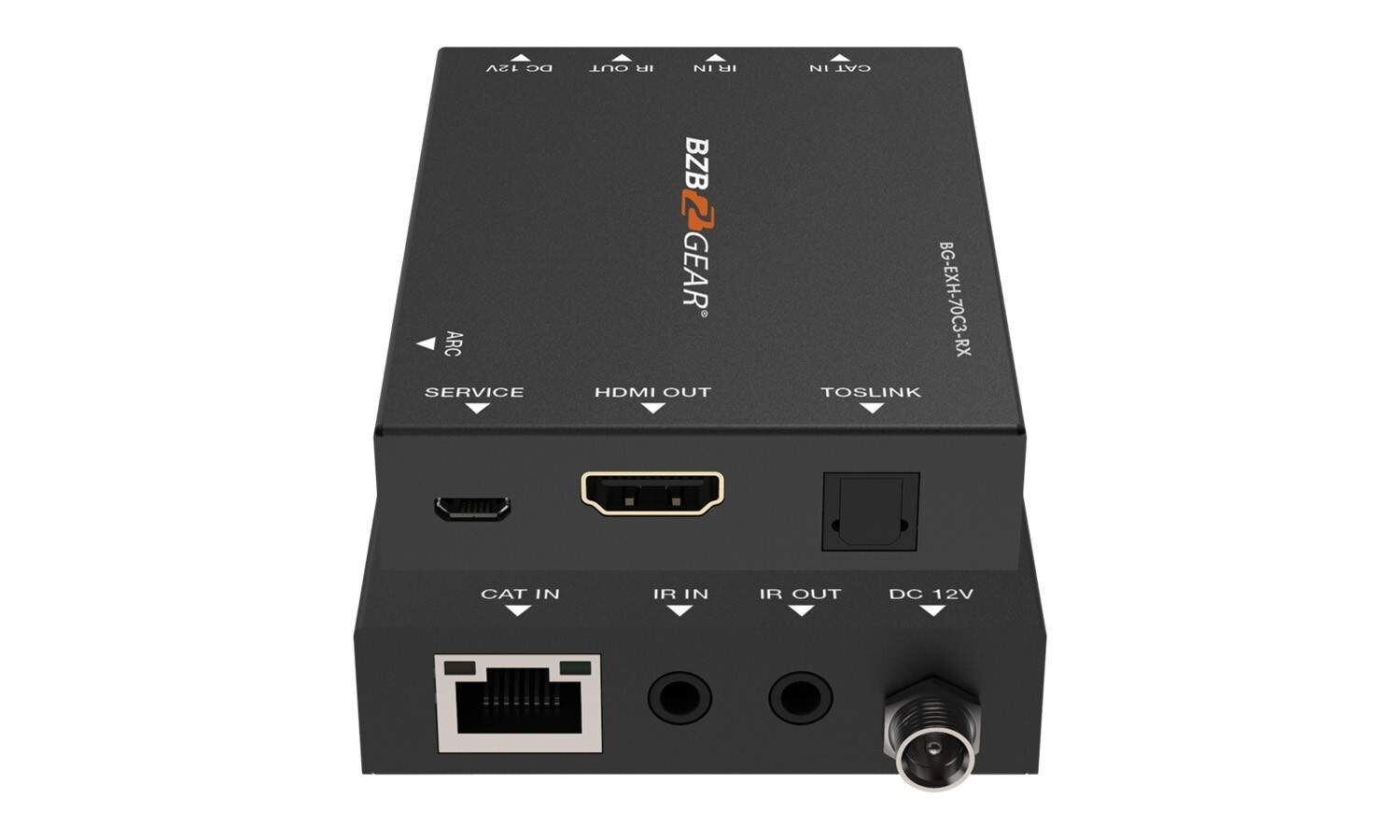

ReceiverInput: 1×CAT IN [RJ45]

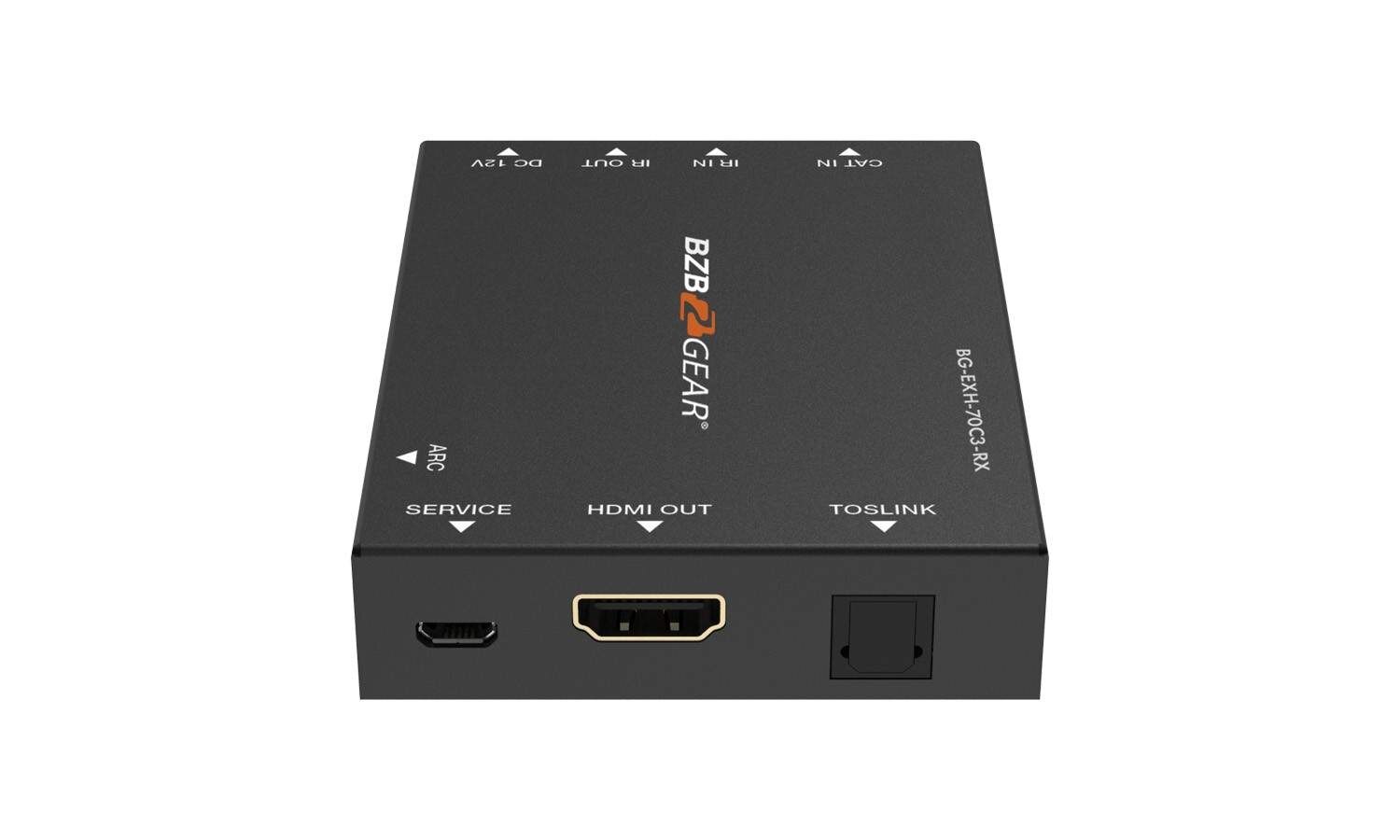

Output: 1×HDMI OUT [Type A, 19-pin female] / 1×TOSLINK S/PDIF
1×SERVICE [Micro-USB jack]
1×IR IN [3.5mm Stereo Mini jack]
1×IR OUT [3.5mm Stereo Mini jack]
HousingMetal Enclosure
DimensionsTransmitter / Receiver: 3.5″ (W) x 2.7″ (D) x 0.7″ (H) [90mm (W)×68mm (D)×18mm (H)]
WeightTransmitter: 5.64oz [160g], Receiver: 5.47oz [155g]
Power SupplyDC 12V/1A; Supported bi-directional PoC function
Power Consumption3.36 W (max)
Operating Temperature32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity20~90% RH (non-condensing)
