BZBGEAR 4K 18Gbps HDMI HDBaseT Extender w/ IR/ARC/PoC/RS-232 & Audio Embedding/De-embedding up to 230ft

  • Brand: BZBGEAR
  • P\N: BG-EXH-70C4
  • UPC: 850033687378
(0)No Reviews yet

Availability: In Stock


Your Price: $499.00

Do you have questions?

Please contact our experts for assistance.

Description

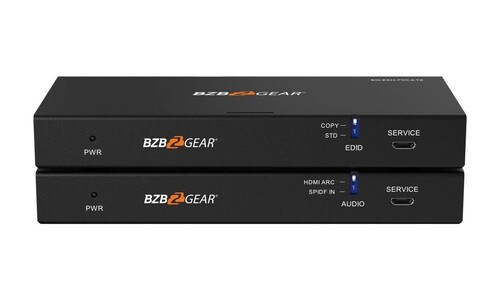

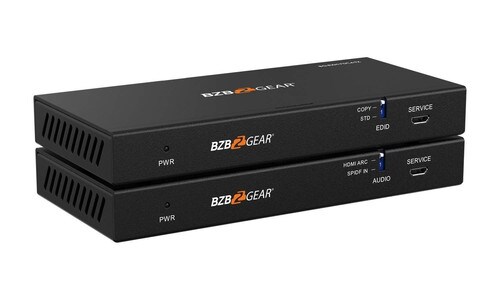

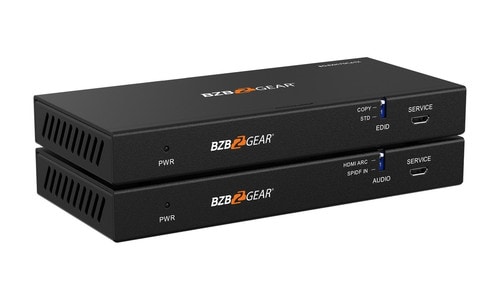

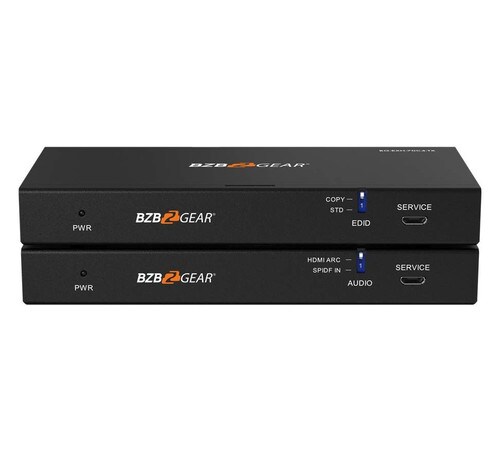

Introducing the BG-EXH-70C4, the ultimate solution for extending your HDMI signals over a long distance of up to 70m / 230ft. This extender is a highly efficient device that converts your HDMI signal to standard HDBaseT and transmits it via single CAT5e/6 ethernet cable.

With a bandwidth of 18Gbps, the device is compliant with HDMI 2.0b and HDCP 2.2 standards. The video resolution that can be achieved using this extender is up to 4K2K@60Hz RGB/YCBCR 4:4:4, which ensures that you enjoy crystal clear images and vibrant colors.

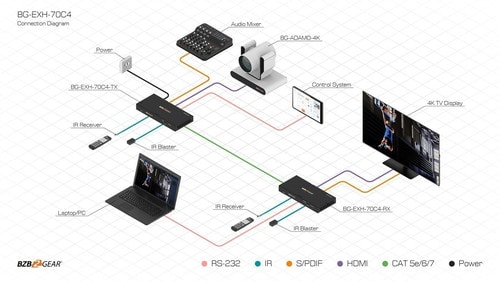

The BG-EXH-70C4 also supports bi-directional IR and RS-232 control signal pass-through, which enables you to easily control signal source or display devices from a remote location. Additionally, the device supports ARC functionality, which makes it possible to transmit audio signals from your TV back to your home theater system without the need for an extra cable.

This extender also supports PoC (Power over Cable) functionality, which means that you need to plug the power source only from one side for the extender kit to work. Moreover, the BG-EXH-70C4 comes equipped with advanced EDID management, which ensures that your video source always communicates with your display device seamlessly.

In terms of audio support, the device can handle various formats, including Dolby 5.1, DTS 5.1, and PCM2.0, etc. Lastly, the compact design of this device ensures that it can be easily and flexibly installed, making it an ideal solution for any home or office.

Features:

  • Audio Embedding: Embed audio through S/PDIF optical
  • Bi-Directional IR: Control devices via IR either from the receiver or transmitter
  • Long Range: Send a 4K signal up to 230ft (70m)
  • 4K: Stunning Image Quality with Crystal clear images at 4K 60Hz 4:4:4
  • Power Over Cable: Power only needs to be supplied to either the transmitter or receiver allowing for easier installation
  • Compliant: HDMI 2.0b and HDCP 2.2 supported to ensure content protection
  • Audio Formats: HDMI - LPCM 7.1, Dolby True HD, DTS HD Master. Optical - Dolby 5.1, DTS 5.1, PCM 2.0
  • Rich Colors with HDR, HDR10, HDR10+, Dolby Vision, HLG
  • ARC and audio de-embedding through S/PDIF optical port on receiver

Specifications:

HDMI Compliance: HDMI 2.0b

HDCP Compliance: HDCP 2.2

Video Bandwidth: 18Gbps

Video Resolution: Up to 4K2K@60Hz RGB/YCBCR 4:4:4

IR Level: 5Vp-p

IR Frequency: Wideband 20K-60KHz

Specifications

Technical
HDMI ComplianceHDMI 2.0b
HDCP ComplianceHDCP 2.2
Video Bandwidth18Gbps
Video ResolutionUp to 4K2K@60Hz RGB/YCBCR 4:4:4
IR Level5Vp-p
IR FrequencyWideband 20K-60KHz
Transmission Distance70m via a single CAT5e/6 cable
Color SpaceRGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth8-bit, 10-bit, 12-bit (1080P)
8-bit (4K60)
8-bit, 10-bit, 12-bit (4K24/30)
HDRHDR, HDR10, HDR10+, Dolby Vision, HLG
Audio FormatsHDMI: LPCM 7.1CH, Dolby True HD, and DTS-HD Master Optical: Dolby 5.1, DTS 5.1, PCM 2.0
Connection

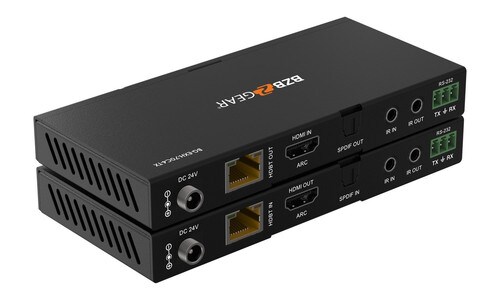

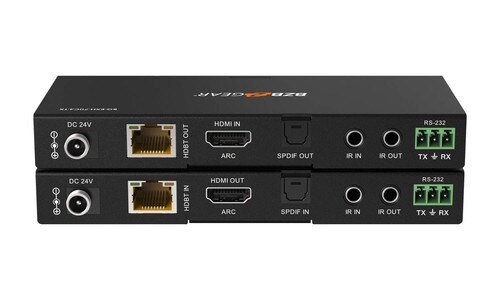

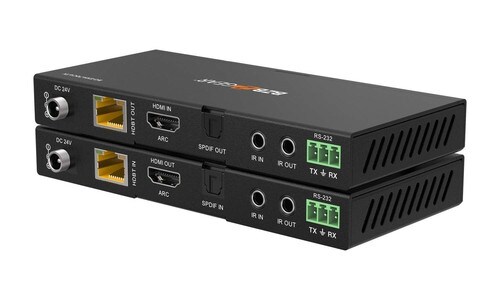

TransmitterInput: 1× HDMI IN [Type A, 19-pin female]
Output: 1× HDBT OUT [RJ45] / 1×SPDIF OUT
Control:
1× RS-232 [3pin-3.81mm Phoenix connector]
1× SERVICE [Micro-USB jack]
1× IR IN [3.5mm Stereo Mini-jack]
1× IR OUT [3.5mm Stereo Mini-jack]
ReceiverInput: 1× HDBT IN [RJ45] / 1×SPDIF IN
Output: 1× HDMI OUT [Type A, 19-pin female]
Control:
1× RS-232 [3pin-3.81mm Phoenix connector]
1× SERVICE [Micro-USB jack]
1× IR IN [3.5mm Stereo Mini-jack]
1× IR OUT [3.5mm Stereo Mini-jack]
Mechanical
HousingMetal Enclosure
ColorBlack
DimensionsTransmitter / Receiver:140mm (W)×65mm (D)×18mm (H)
WeightTransmitter: 235 g, Receiver: 239 g
Power SupplyDC 24V/1A;
Supports bi-directional Power over Cable (PoC) functionality
Power Consumption9.6 W (max)
Operating Temperature32°F ~ 104°F / 0°C ~ 40°C
Storage Temperature-4°F ~ 140°F / -20°C ~ 60°C
Relative Humidity20~90% RH (non-condensing)
