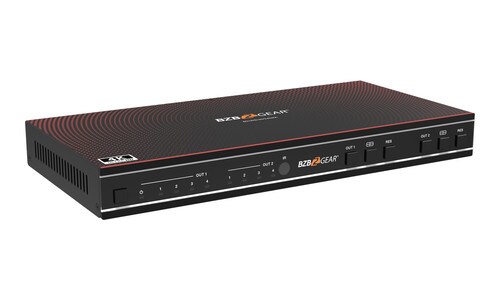

BZBGEAR 4x2 4K UHD HDMI Seamless Switcher/Quad MultiViewer with Audio De-embedder(BG-UHD-MVS42MA)
- Brand: BZBGEAR
- P\N: BG-UHD-MVS42MA
- UPC: 850033687811
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
BZBGEAR 4x2 4K UHD HDMI Seamless Switcher Quad MultiViewer with Audio De-embedder
OVERVIEW
The 4K@60 4x2 Multiviewer Seamless UHD Video Matrix Switcher is designed to allow you to display multiple video sources at 4K resolution on two screens. It combines four video signals and allows you to manage each input, create combinations of the four inputs, and adjust their positions on the displays.
Besides instant switching between 4 sources and routing to two displays the BG-UHD-MVS42MA has the ability to display the four video inputs in a Picture-in-Picture (PIP) or Picture-by-Picture (PBP) mode. In PIP mode, one of the video inputs is displayed as a small inset window on top of the other input, which takes up the majority of the screen. In PBP mode, the four video inputs are displayed side-by-side, taking up equal or partial amounts of screen space.
CONNECTIVITY AND QUALITY
This device supports a wide range of input resolutions up to 4096x2160p 60Hz. It also could de-embed audio from any of the sources in different formats for your external audio system. Supported audio formats are LPCM, AC3, DD+, DTS, DTS- HD. User can control the volume of audio in LPCM format.
CONTROL
Multiple control options are available for the BG-UHD-MVS42MA. It can be controlled through the front panel buttons, an IR remote, or RS-232 commands. EDID control is available through the RS-232 interface.
FEATURES
- SECURE CONTENT
HDMI 2.0b, HDCP 2.2, and HDCP 1.x compliant
- 4K
Input and output resolution up to 4K2K@60 4:4:4
- AUDIO FORMATS
LPCM, DD+, DTS, Dolby TrueHD, DTS HD-master pass-through
- CONTROL OPTIONS
Control via front panel buttons, IR remote, RS-232 commands
- EDID MANAGEMENT
Seamless scaling for the best results
- COMPACT DESIGN
For easy and flexible installation
- 18Gbps uncompressed Bandwidth
- Seamless switching between input channels
- Combined multiple images or independent layouts to display on two UHD TVs
- Up to 8 display modes: Single, PIP, PBP(1), PBP(2), Triple(1), Triple(2), Quad(1), Quad(2)
- Audio de-embedding via analog and optical fiber audio ports
- Output scaling
- Independent audio selection
Specifications
| Technical | |
| HDMI Compliance | HDMI 2.0b |
| HDCP Compliance | HDCP 2.2 / 1.x |
| Video Bandwidth | 18Gbps |
| Video Resolutions | Up to 4K2K@60 4:4:4 |
| IR Level | 5Vp-p |
| IR Frequency | 38KHz |
| Color Depth | 8/10/12-bit |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0 |
| Audio Formats | HDMI audio: PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio Analog audio [3.5mm L/R]: PCM2.0 Optical fiber audio: Dolby PCM2.0/5.1/7.1CH, Dolby Digital/plus, DTS 5.1 |
| ESD Protection | Human-body model: ±8kV (Air-gap discharge) & ±4kV (Contact discharge) |

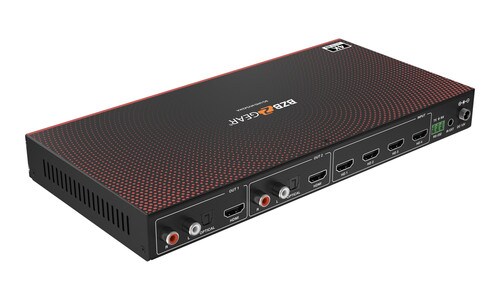

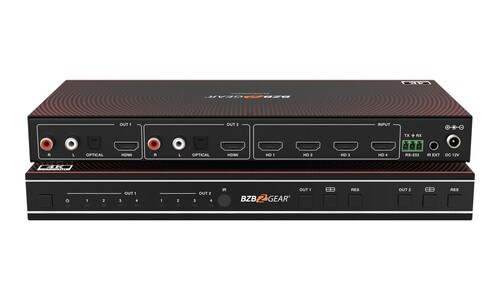

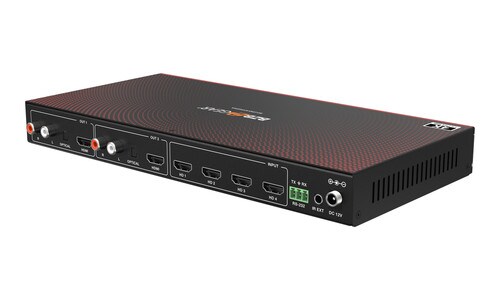

| Connection | |
| Input ports | 4 x HDMI IN [Type A, 19-pin female] |
| Output ports | 2 x HDMI OUT [Type A, 19-pin female] 2 x L/R OUTPUT [RCA] 2 x OPTICAL OUTPUT [S/PDIF] |
| Control ports | 1 x RS-232 [3pin-3.81mm phoenix connector] 1 x IR EXT [3.5mm Stereo Mini-jack] |
| Mechanical | |
| Housing | Metal Enclosure |
| Color | Black |
| Dimensions | 11”(W) x 5.1"(D) x 1.2”(H) [270mm(W) x 130mm(D) x 30mm(H)] |
| Weight | 2lbs [906g] |
| Power Supply | Input: AC 100~240V 50/60Hz Output: DC 12V/2.5A (US/EU standard, CE/FCC/UL certified) |
| Power Consumption | 15.72W (Max) |
| Operating Temperature | 32°F ~ 104°F / 0°C ~ 40°C |
| Storage Temperature | -4°F ~ 140°F / -20°C ~ 60°C |
| Relative Humidity | 20~90% RH (no-condensing) |
