BZBGEAR HDMI 2.0 to 12G/6G/3G/HD-SDI Converter with HDMI Loop-out and Audio Embedder

OVERVIEW

The BG-4KHS HDMI to SDI converter seamlessly converts an HDMI 2.0 signal to 12G/6G/3G/HD/SD-SDI in real time. The conversion between HDMI 2.0 and SDI is purely digital. When converting HDMI 2.0 to SDI, there is no loss or weakness of signal quality. Additionally, with up to 8 channels of audio support, 7.1 channel audio and 5.1 channel audio becomes available. With the use of BG-4KHS, users can expand their access to professional SDI compatible equipment!

The BG-4KHS provides two low jitter SDI outputs and one HDMI loop-out. To provide a more flexible application, the BG-4KHS is also equipped with a high quality analog stereo embedder. Analog audio supports 2ch and HDMI surround sound supports up to 7.1ch. Furthermore, this HDMI to SDI converter supports resolutions up to 4K@60Hz. The lowest resolution BG-4KHS supports is 720p@50Hz.

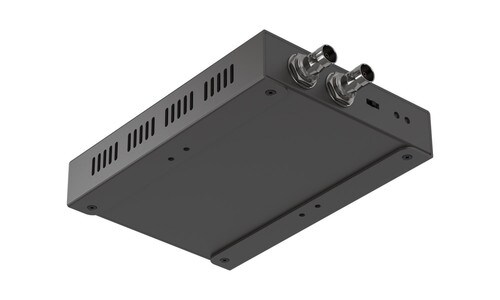

For additional application support, the BG-4KHS HDMI to SDI converter is wall mountable. One mounting rack set is included with the purchase of this device. The package also includes a 5V power adapter to ensure users have everything they need right out of the box.

FEATURES

• CRYSTAL CLEAR IMAGES

  Stunning image quality up to 4K@60Hz

• HDMI LOOP-OUT

  Loop out to view content locally at device

• DUAL SDI OUTPUTS

  Split an HDMI signal from 1 source to 2 SDI outputs for long range signal transmission

• AUDIO EMBEDDING

  Embed audio from a 3.5mm Stereo Mini input

• STATUS LEDS

  See signal and power status at a glance with built in status lights

• DURABLE METAL ENCLOSURE

  Designed for years of reliable use

• 7.1 or 5.1 channel surround
• 4K2K@24/25/30Hz RGB or YCbCr 4:4:4 deep color signal
• Digital conversion of signal ensures lossless transformation for audio and video
