BZBGEAR Intelligent 4K UHD All-In-One Auto Tracking Video Bar with HDMI/USB-C and 20W Speakers/6-MEMS Microphones (Black)(BG-CYCLOPS-4K-B)
- Brand: BZBGEAR
- P\N: BG-CYCLOPS-4K-B
- UPC: 850033687613
Live Chat
Contact Us
Description
BZBGEAR Intelligent 4K UHD All-In-One Auto Tracking Video Bar with HDMI/USB-C and 20W Speakers/6-MEMS Microphones (Black)
OVERVIEW
The BG-Cyclops-4K’s all-in-one design consolidates several devices into one streamlined, user-oriented video conferencing solution.
With a powerful 4K UHD camera and high-end 0.8M CMOS sensor, the BG-Cyclops-4K captures pristine lifelike images. The advanced auto-tracking functionality is bolstered by facial recognition software. The distortion-less 120° wide angle lens automatically tailors the image size based on the number of participants in the frame, eliminating the need to manually adjust the camera before each meeting.
The BG-Cyclops-4K’s built-in dual 10W studio speaker ensures every participant can hear and be heard clearly. The sophisticated 6 MEMS microphone array features voice localization and tracking that detects the presenter’s position in real time and locks in for a focused shot, removing any confusion as to who is currently speaking.
Complete with a privacy cover, the BG-Cyclops-4K automatically shields the lens when no output device or software is detected for and security and comfort.
By simplifying video conferences with its hands-free operation and professional grade image and sound quality, the BG-Cyclops-4K allows meeting members to present topics and focus on the task at hand.
FEATURES
- CRYSTAL CLEAR IMAGES
Stunning image quality at 4K2K
- AUTOMATIC PRIVACY COVER
Camera lens cover automatically closes when there is no output stream detected
- WIDE ANGLE LENS
120° wide angle lens ensures every participant is captured in frame
- 6 MICROPHONES
Multiple microphones enable the current speaker to be tracked in real time up to 6 meters
- AUTO FRAMING
Face detection algorithm automatically detects participants to provide the optimal shot
- COMPATIBLE
Works with Windows, Mac OS, and major conferencing software such as Zoom, Skype, etc.
- Bluetooth enabled and can be used as a Bluetooth speaker and microphone
- Low noise CMOS ensures high snr of images
- Brackets for desktop or wall mounting included
Specifications
| Camera | Lens | FOV | 120°(D) / 106°(H) / 72°(V) |
| Iris | F2.0 | ||
| Focal Length | 1.89mm | ||
| Sensor | High quality CMOS sensor, effective pixel 8 million, 16:9 | ||
| Image | Minimum Illumination | 0.5Lux | |
| DNR | 2D & 3D | ||
| Focus | Auto/Manual | ||
| BLC | On/Off | ||
| Exposure | Parameter can be adjusted, and AE (Auto Exposure) is available | ||
| Video Adjustment | Brightness, sharpness, saturation, contrast, white balance, gain, anti-flicker, low brightness compensation and other parameters can be adjusted | ||
| SNR | ≥50dB | ||
| Video Format | HDMI: 4KP30,1080P60 compatible downward USB: 4KP30,1080P60 compatible downward | ||
| Video Compression Format | MJPEG, YUY2, H.264, H.265, NV12 | ||
| Privacy Cover | Automatic privacy cover will close when no image output and open when there are image output. | ||
| Audio | Microphone | Microphone | 6 X MEMS Microphones |
| Pickup Distance | 6 meters | ||
| Frequency Response | 120 Hz - 16 kHz | ||
| Speaker | Speaker | Built in dual speaker | |
| Voltage | 2x10W | ||
| Output Voice Pressure | 80±3 dB 1.0M/1.0W | ||
| Frequency Response | 100 Hz - 20 KHz | ||
| Audio Processing | AEC, AGC, ANS | ||
| AI Function | Group Framing | Automatically adjust the screen size according to the number of participants to present the best framing | |
| Speaker Tracking | Track each speaker in real time, and ensure that the speaker is in the center of the screen. | ||
| Remote Control | Remote Control | Infrared remote control | |
| Physical Interfaces | USB | USB3.0 audio video output interface, Type C Support UVC1.1, UAC1.0 and higher | |
| HDMI | HDMI video output interface HDMI also compatible with HDMI2.0 standard | ||

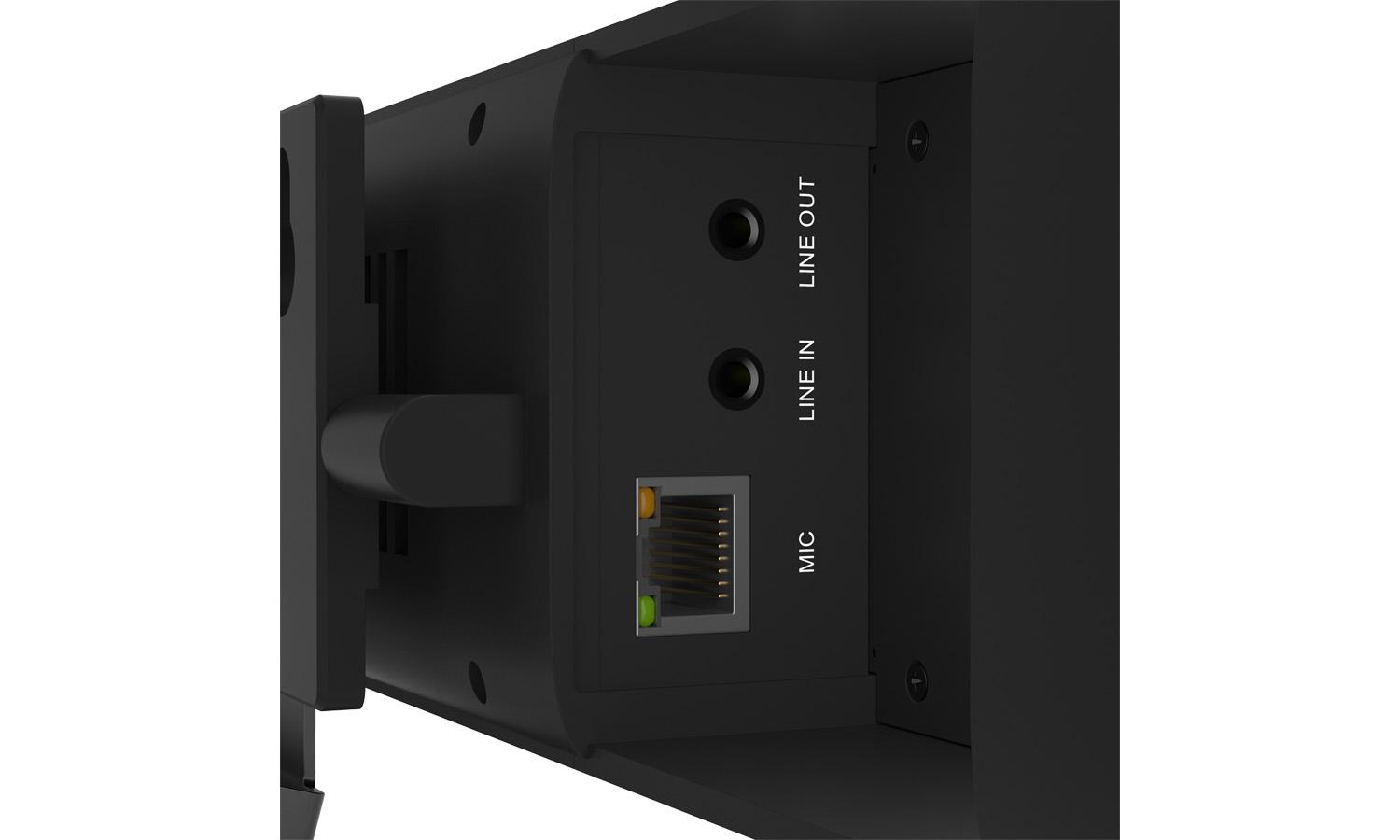

| LINE IN | 3.5mm audio line input interface (when an external pickup is connected, the audio input is automatically switched to the external pickup) | ||
| LINE OUT | 3.5mm line output, can be connected to external speakers (when connecting to external speakers, the audio output will automatically switch to external speakers) | ||
| Expansion Mic Interface | RJ45 interface, able to connect to expansion microphone. | ||

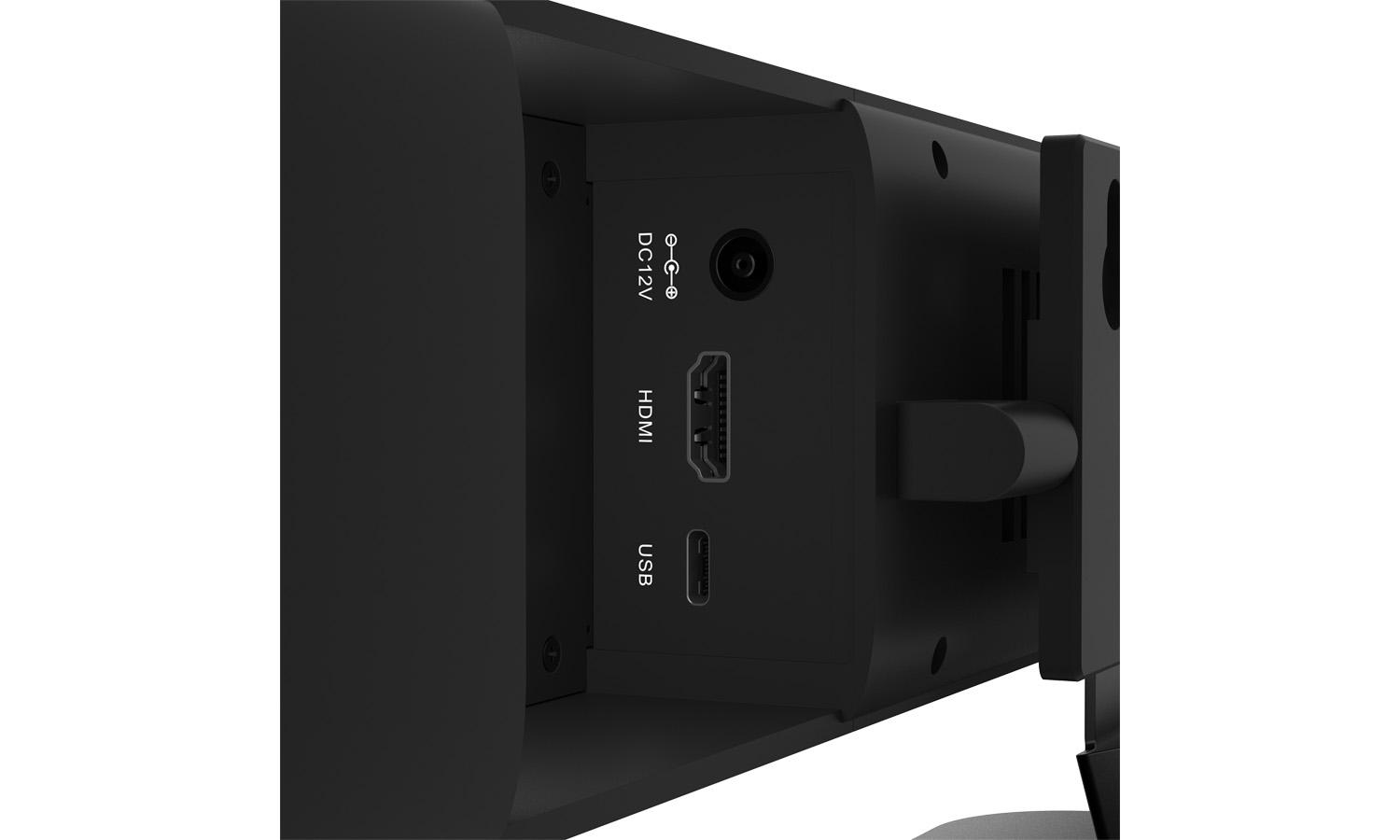

| Power Interface | HEC3800 power socket (DC12V), input AC110V-AC220V output DC12V/2.5A | ||
| Indicator | Bar-shaped Indicator | While displaying the working status, it can also be lit where the speaker's voice comes from. | |
| Bluetooth | Bluetooth 5.0 | Can be connected to a mobile phone or other device via Bluetooth as a Bluetooth microphone and speaker | |
| Compatibility | Available System | Windows 7, Windows 8, Windows 10, Mac OS X, Linux, Android | |
| Power Supply Method | Supply power through power adapter | ||
| Working Condition | Storage Temperature | 14°F～158°F / -10°C～+70°C | |
| Storage Humidity | 20%～95% | ||
| Working Temperature | 14°F～122°F / -10°C～+50°C | ||
| Working Humidity | 20%～80% | ||
| Environment | Indoor | ||

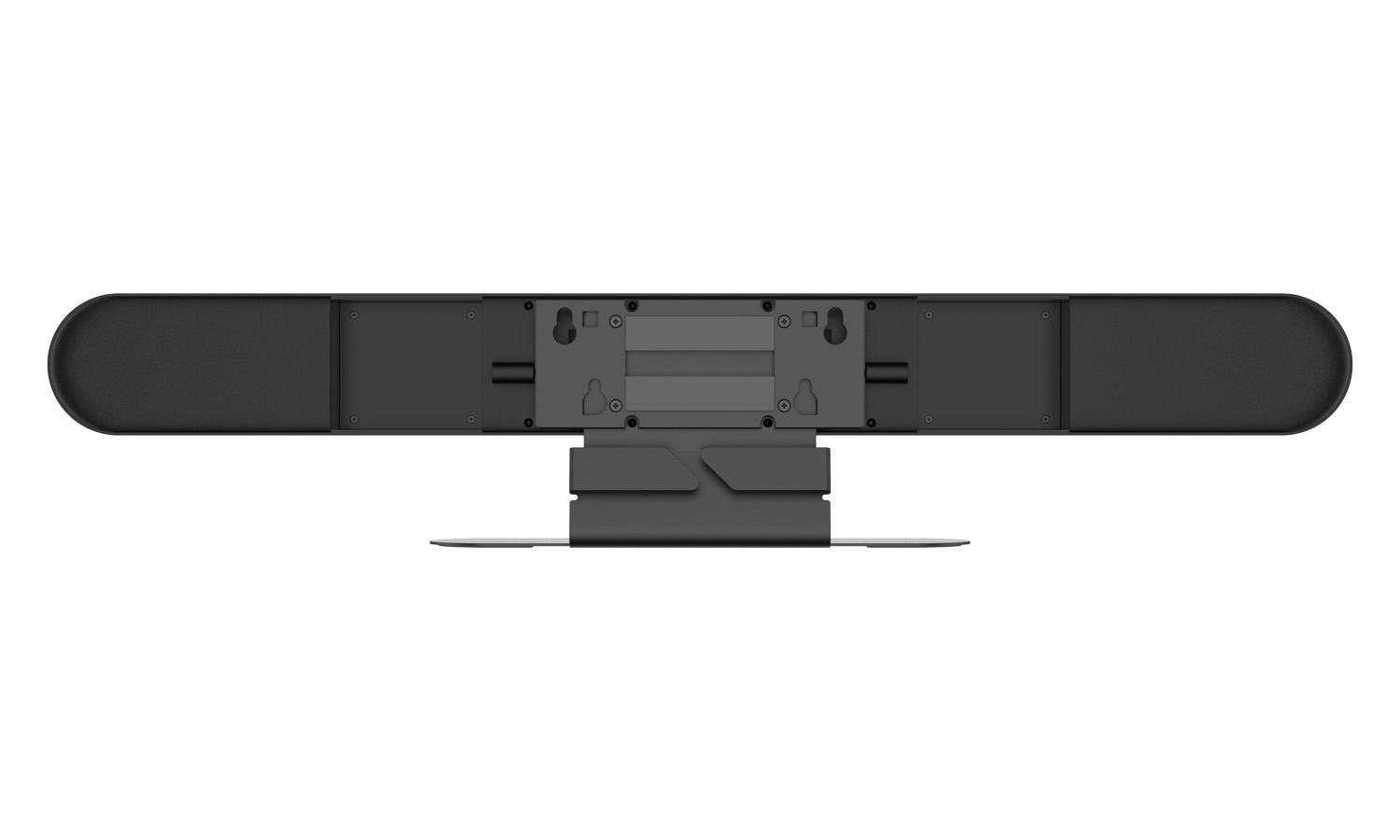

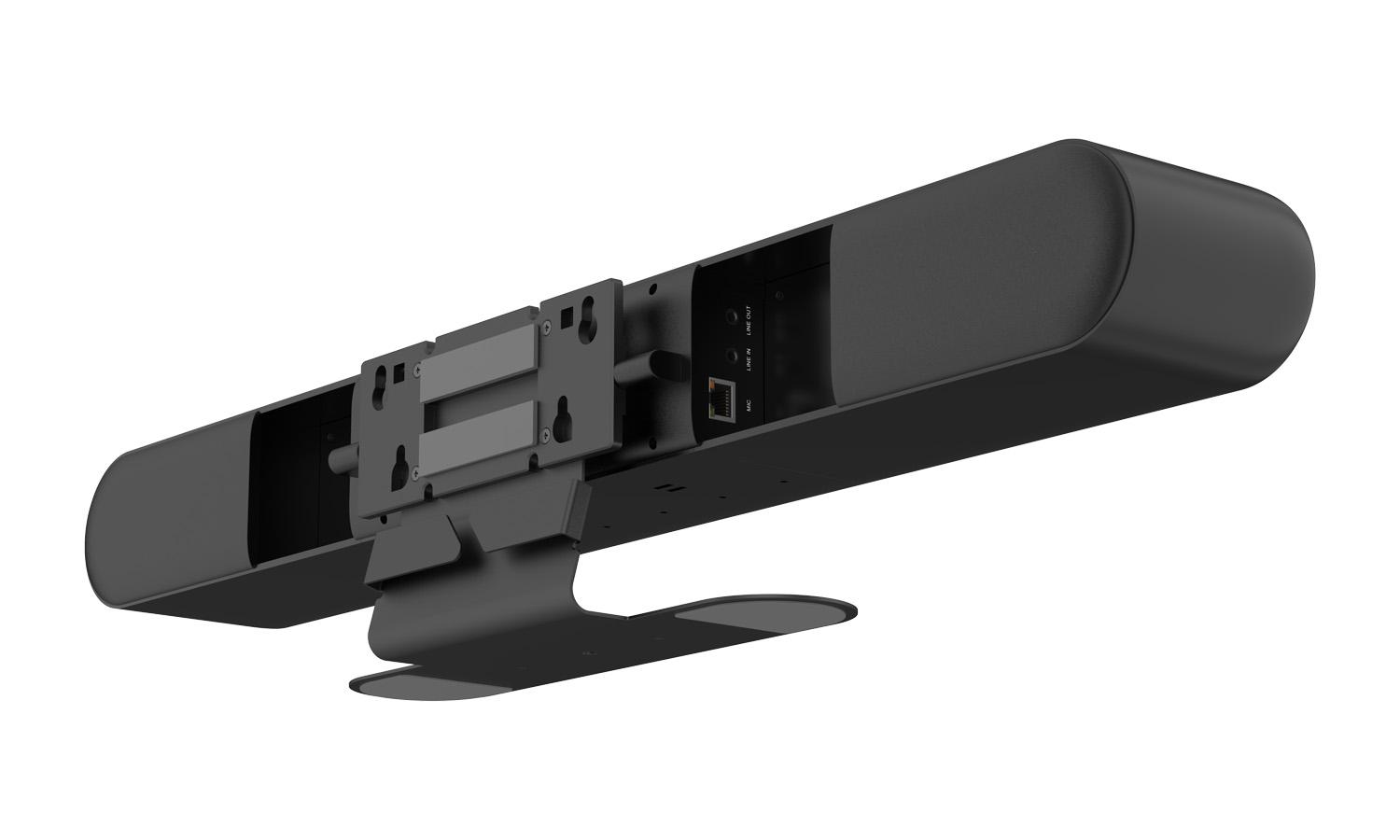

| Installation Method | Walling Mount | Comes with walling mount bracket. While mounting, the camera need to be as close to the wall as possible. | |
| Desktop | Comes with desktop mounting bracket | ||
| Installed on monitor | Bracket for monitor installation (optional) |
