BZBGEAR USB-C 4K120 Video Capture Box with Scaler, HDMI 2.1 Loopout, Audio & HDR10 to SDR Conversion

OVERVIEW

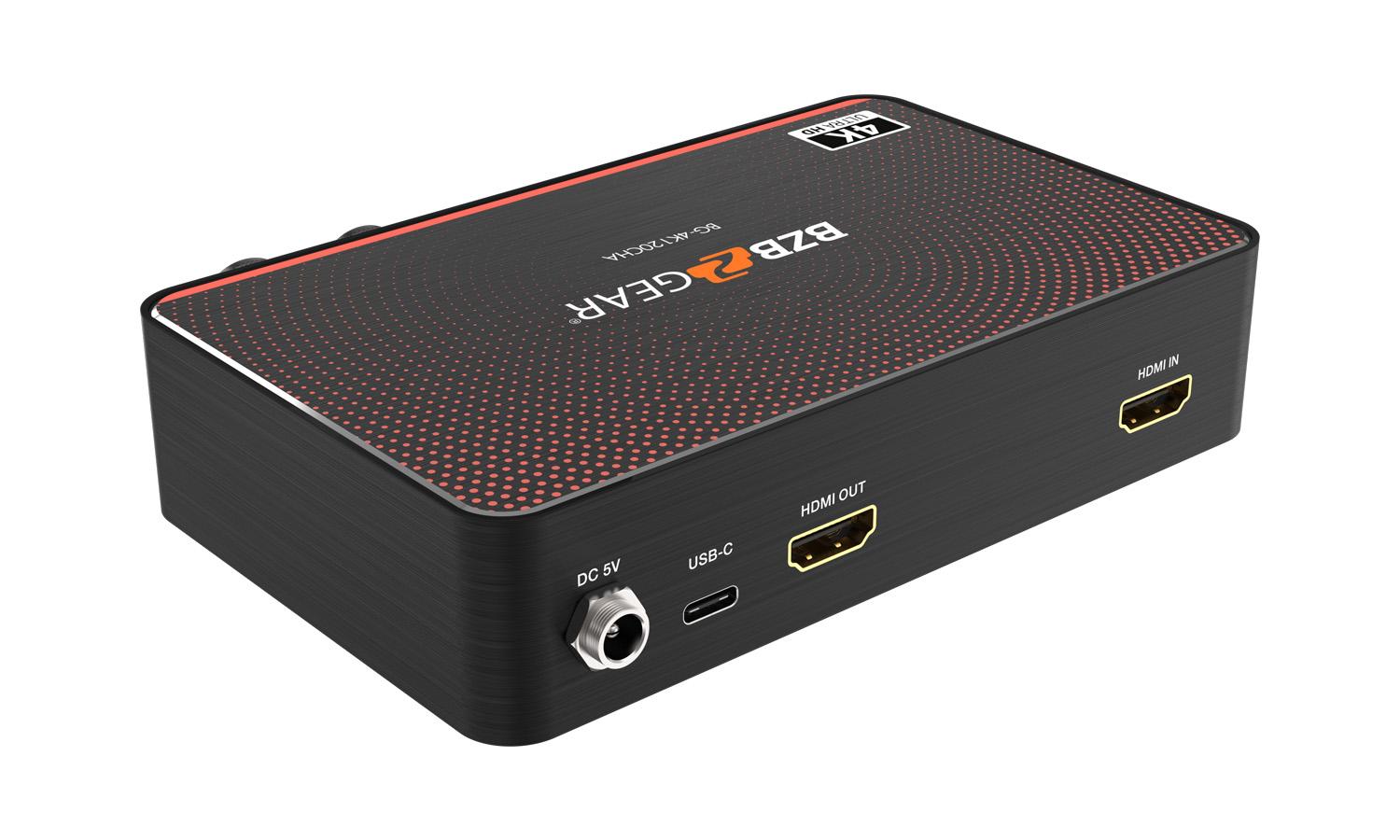

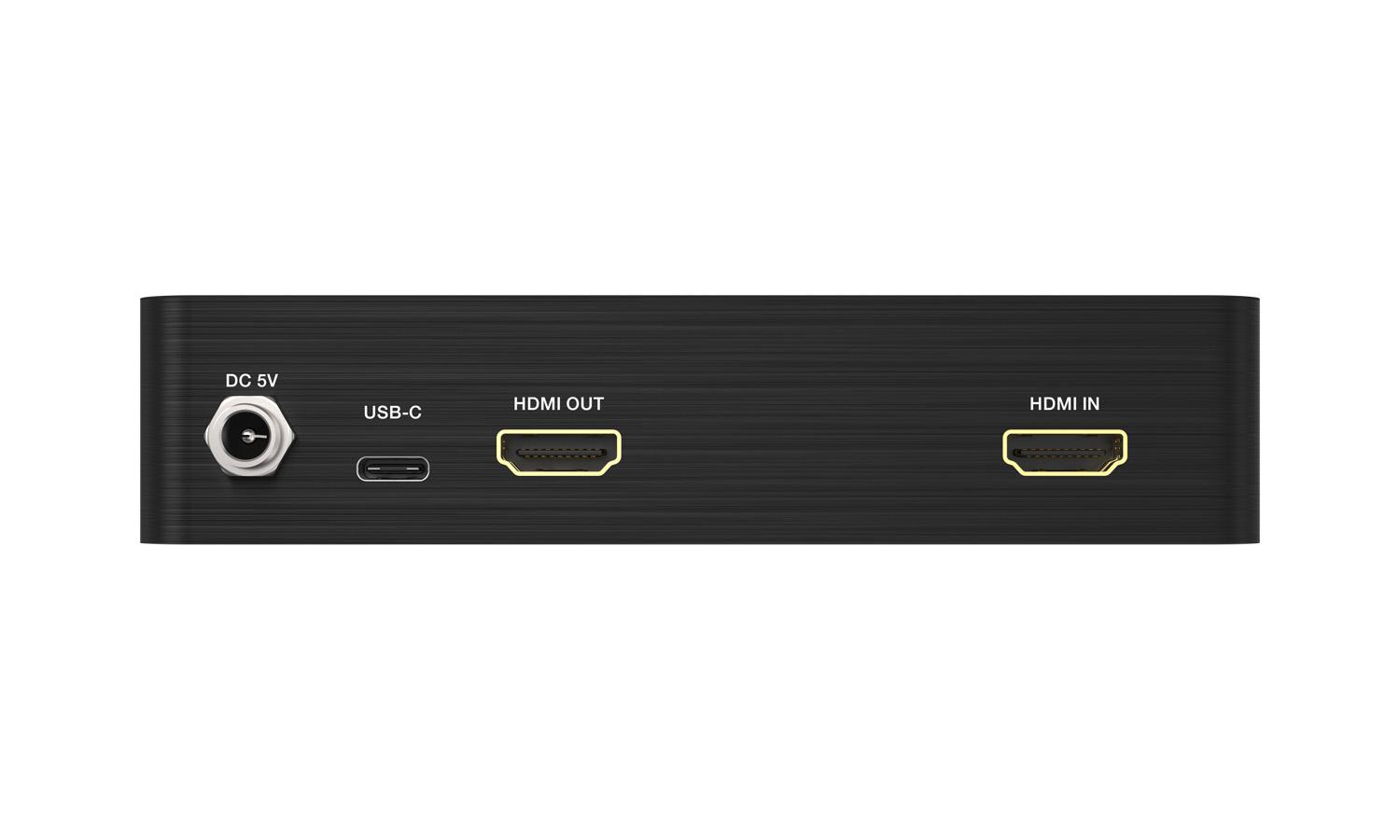

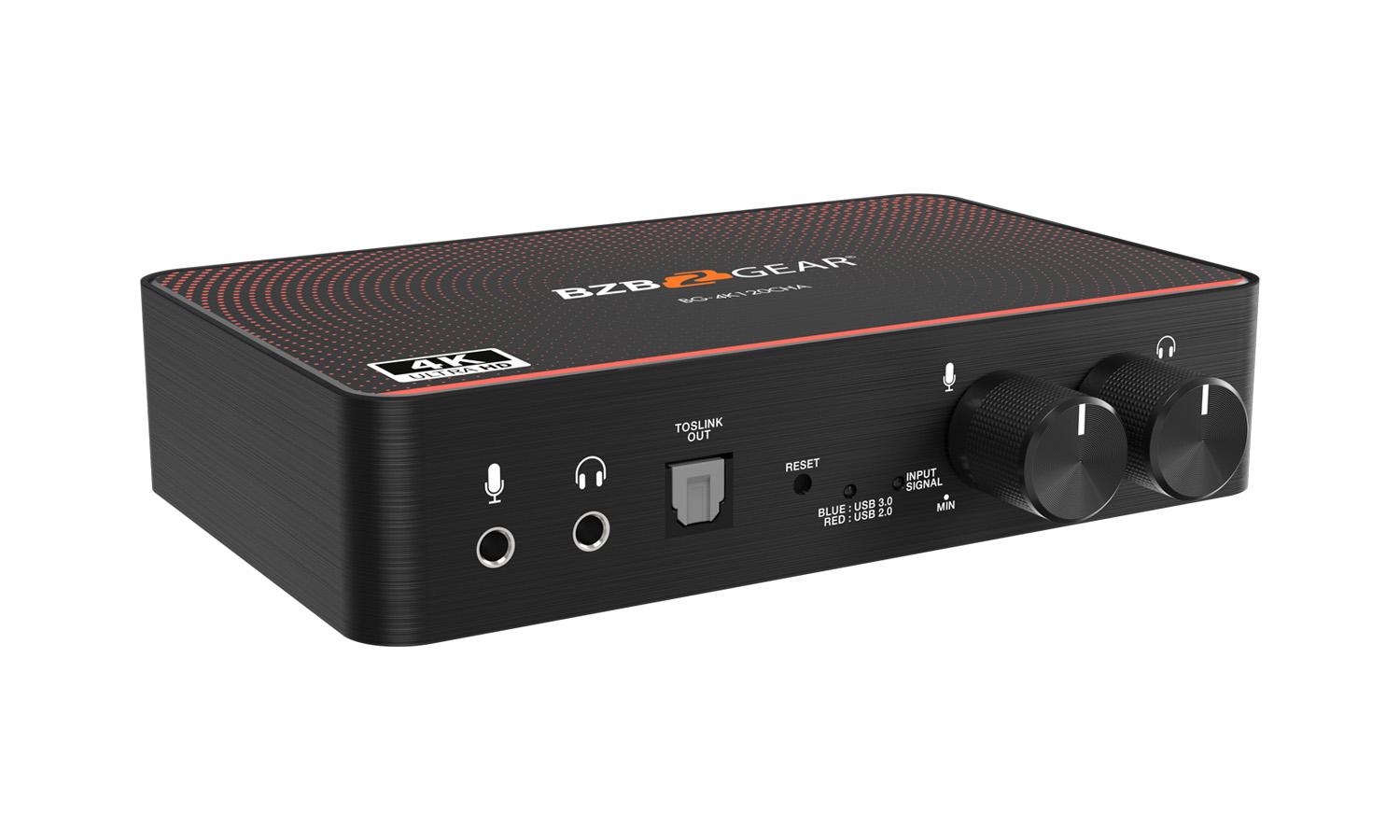

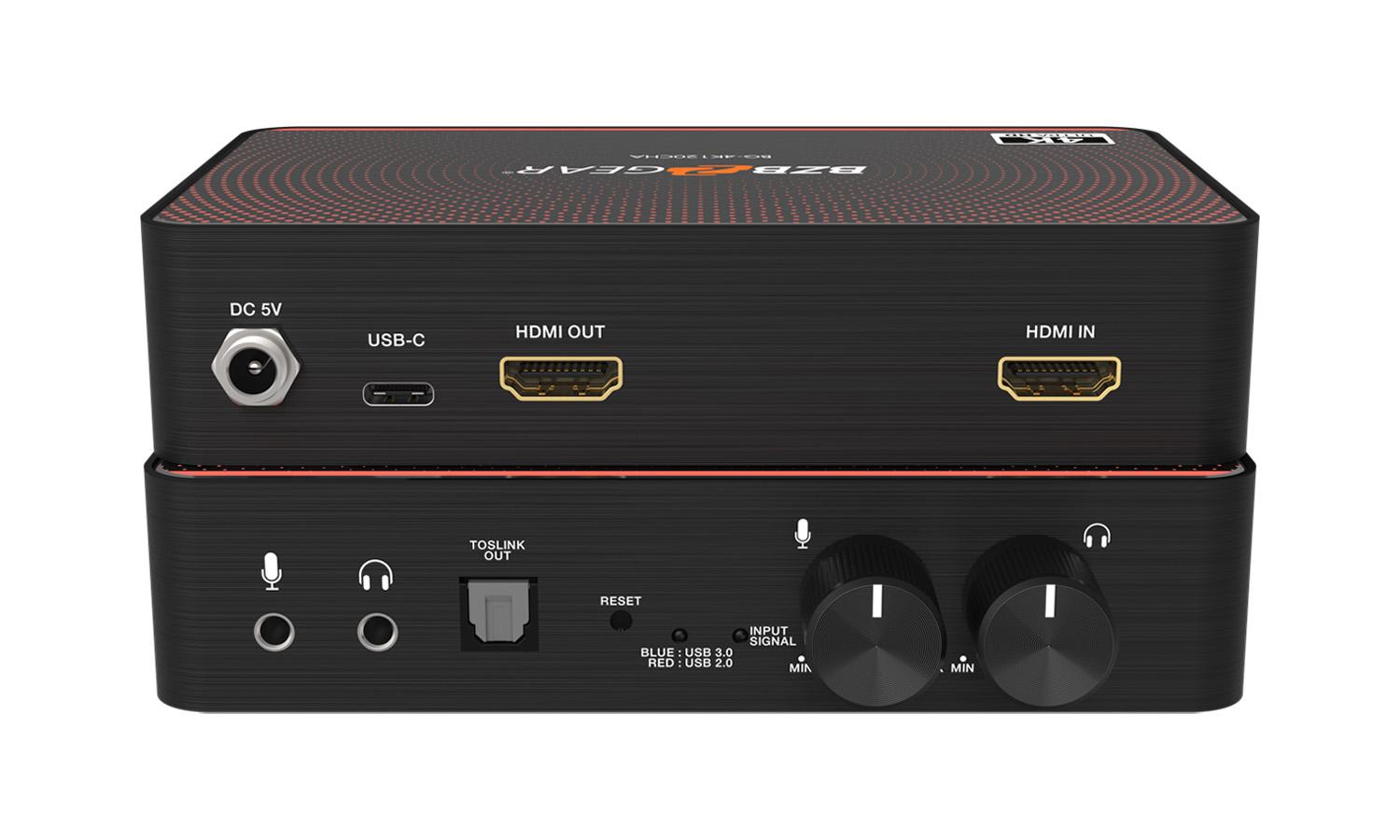

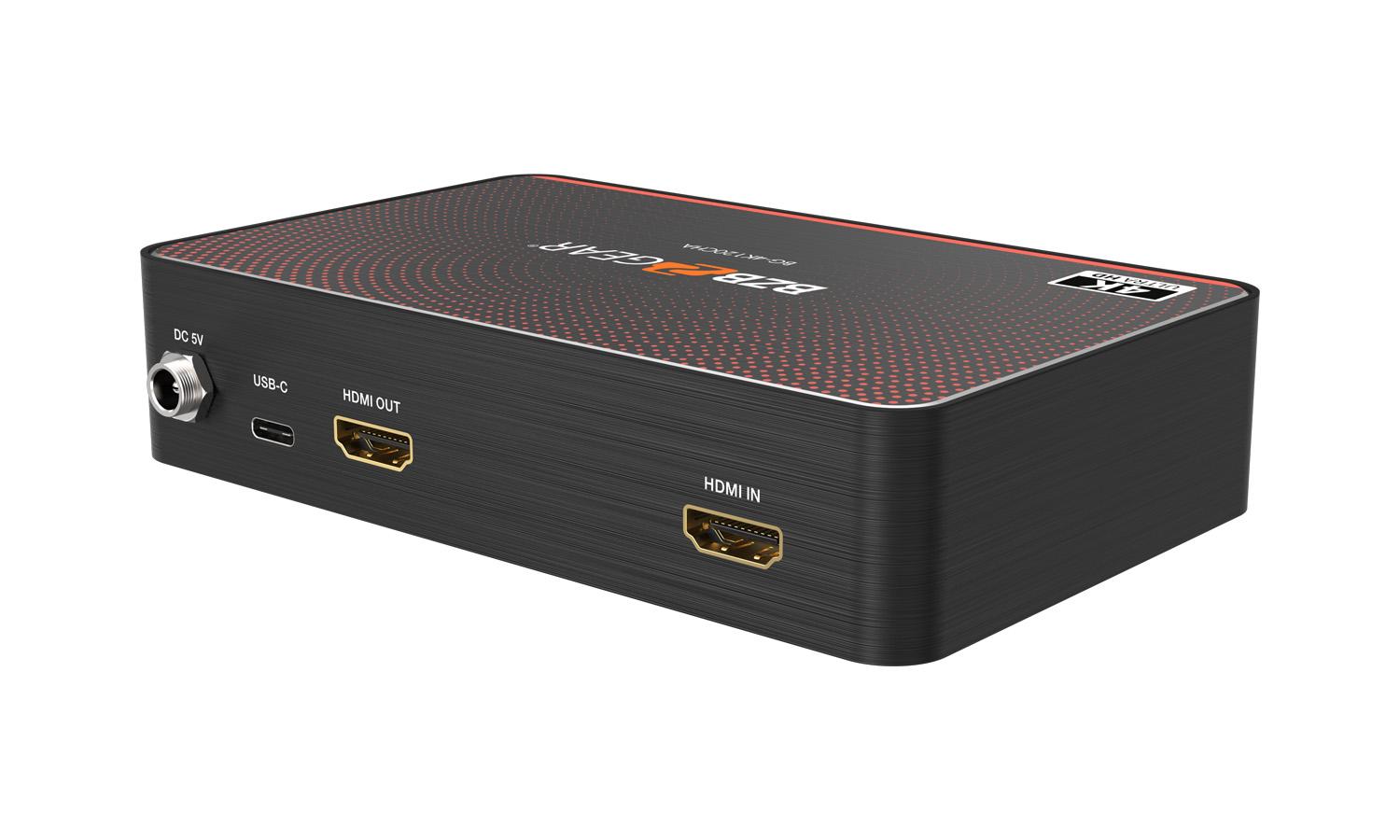

The BG-4K120CHA is a cutting-edge USB-C 4K120 video capture device with a scaler, HDMI 2.1 loopout, audio, and HDR10 to SDR conversion, designed for professional HDMI video signal capturing. It utilizes a USB 3.1 Type-C Gen 1 (USB 3.0) interface for high-speed transmission. Additionally, the HDMI input and loopout can support up to 4K2K 120Hz, enabling users to connect to a 4K2K 120Hz source and capture Ultra HD (4K2K@30) video. The BG-4K120CHA also captures and displays original uncompressed HDMI video, resulting in more realistic color rendition.

Moreover, the BG-4K120CHA incorporates large volume image buffer technology to effectively avoid video tearing, and the high sampling rate and accuracy ensure images with high sharpness, rich details, and fewer color edges. Furthermore, with HDR10 to SDR conversion, PS5/Xbox Players can enjoy 4K2K@120 HDR games on a 4K TV while recording real-time 4K2K@30/1080P@120 video streams with SDR quality through USB 3.0 simultaneously.

With its advanced features and high-end capabilities, the BG-4K120CHA is an ideal choice for demanding HDMI video capture applications, offering professional-grade performance and versatility.

* PS5 & Xbox Series X also support 1080P120.

FEATURES

• 4K@120HZ

  HDMI input & output up to 4K2K 120Hz 4:4:4/4:2:2/4:2:0

• VOLUME CONTROL

  Use the volume control knobs to adjust the MIC/Headphone volume

• PLUG AND PLAY

  Auto-detection of video format

• SOFTWARE COMPATIBILITY

  Compatible with most 3rd party software such as OBS Studio and AMCap

• MIC-IN-MIX

  Allows the microphone's audio input to be combined or mixed with the audio that is being transmitted through the HDMI connection

• LOW LATENCY

  3~4ms at 1080P

• HDMI video and audio streams over USB 3.1 Type-C Gen 1
• UVC1.0/1.1/1.5
• Video resolution up to 4K2K@30/1080P@120 (Video stream over USB-C)
• HDMI 2.1 compliant
• HDR 4K2K@60 4:2:0 10 bits/12 bits
• HDCP 2.3 and 1.4 compliant
• Deinterlace & scaling (upscaling supports up to 1080P@120)
• HDMI audio extraction
• HDR10 to SDR conversion***
• Play 4K@120 HDR on HDMI out while streaming 4K2K@30/1080P@120 with SDR colors for gameplay capture
• Supported operating systems: Windows 7/8.1/10/11, Mac, & Linux OS
• USB 3.1 Gen 1 (RGB/YUY2/NV12/P010) 4 (capture up to 4K2K@30) and USB 2.0 (YUY2/NV12) (capture up to 1080@15)
