CableTronix 8-Slot H25/H26K Rack Mount Shelf (CT-8PK-H256)

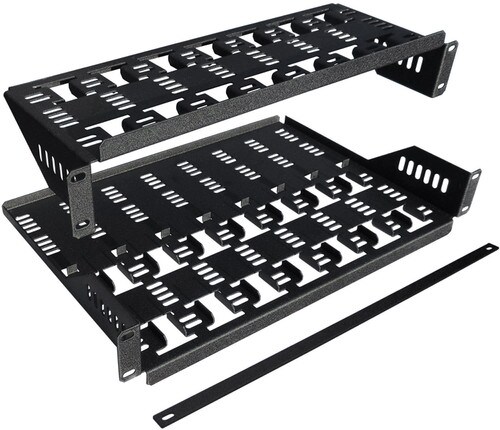

The Cabletronix CT-8PK-H256 is a custom rack mount shelving unit which will hold up to 8 H25 or H26K DIRECTV high definition satellite receiver units, vertically mounted into a standard 19” width equipment rack. This shelving solution allows for a true space-saving mindset towards loading needed equipment into the rack unit by avoiding a standard single rack space horizontal shelving unit per H25/H26K unit. The 6 inner slots have a width of 1.27” and the 2 outer slots have a width of 1.5”. and a top depth of 6.5”. The 12.5” bottom depth of the shelf is custom designed to allow room for the placement the H25/H26K external power supply. CT-8PK-H256 features a black powder coat finish, and each package includes 8 rack mount screws and a security bar, which can be mounted to secure the receivers in place to avoid tip and fall potential.

• 6 Inner Slot widths = 1.27 inches

• 2 Outer Slot widths = 1.5 inches

• Top Depth = 6.5 inches

• Bottom Depth = 12.5 inches
