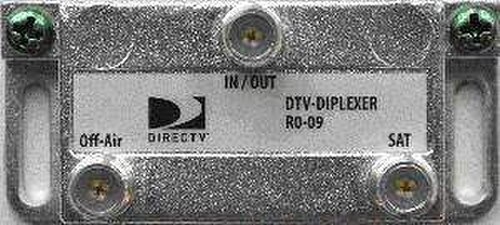

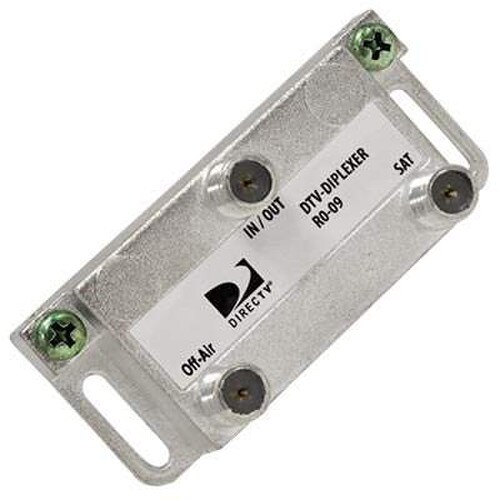

DIRECTV Diplexer R0-09 (DTVDIPLEXER)

DIRECTV Diplexer R0-09 (DTVDIPLEXER)

DTVDIPLEXER MODEL DTV Diplexer R0-09 DESCRIPTION Satellite/Terrestrial Diplexer ORDER # 215251 FEATURES Low insertion loss. SPECIFICATIONS Satellite input frequency range 2 - 4 and 950 - 2150 MHz Satellite frequency insertion loss < 3 dB Satellite return loss > 12 dB Terrestrial input frequency range 18 - 806 MHz Terrestrial input insertion loss < 3 dB Terrestrial return loss > 10 dB Isolation between satellite and terrestrial Sat. & MoCA Frequency > 40, FSK Frequency > 35 dB Satellite input DC Voltage pass N/A Tettestrial input DC voltage pass N/A Bias current N/A A Operating temperature range -34 ~ +60 (-31 ~ +140) Cº(Fº) APPLICATION For combining two signals with different frequencies into a common wire.
