DataTronix High Definition (HD) Modulator (DT-QAM-AMM-1)

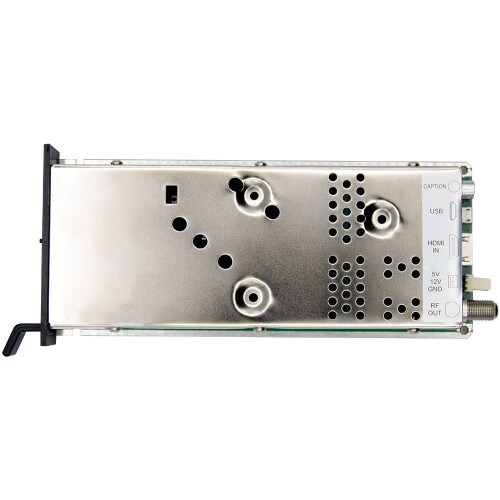

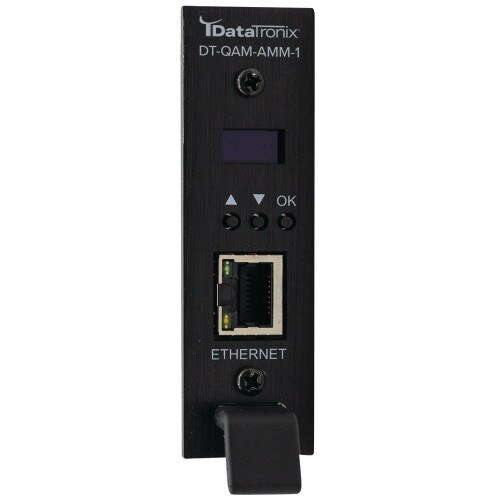

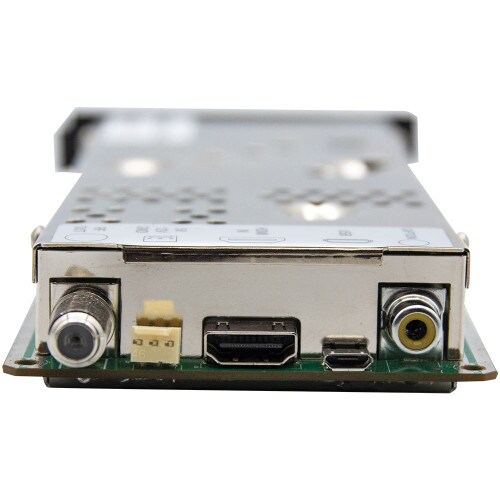

The DataTronix DT-QAM-AMM-1, High Definition (HD) Modulator, is the ultimate solution for adding local content seamlessly into a coaxial cable TV network. This innovative device boasts the ability to generate an MPEG-2 encoded signal in either QAM or ATSC format from an HDMI input. With its sleek design, it features one HDMI input, one RF output, and one LAN port for web management - making it the perfect addition to add locally generated content, such as digital signage and video surveillance. This innovative unit can be effortlessly installed into an existing analog micro-modulator slot, making upgrading your system to HD an effortless process

Key Features:

• QAM Channels: 2 - 135
• ATSC Channels: 2 - 69
• Output: 41 dBmV
• Impedance: 75 Ohms
• RF Output: “F” Type, Female
