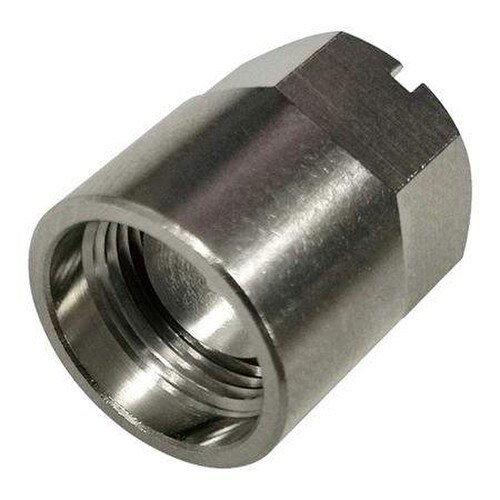

CommScope Female End Cap Assy Nex10 (NEX10-CAPKIT)

Introducing the CommScope NEX10-CAPKIT: A High-Performance Female End Cap Assembly

Upgrade your wireless and radiating connector system with the CommScope Technologies LLC Female End Cap Assy Nex10 - NEX10-CAPKIT. Designed for professionals who demand the best in performance and reliability, this high-quality end cap assembly is part of the renowned HELIAX® product line. With its compact dimensions and robust construction, the NEX10-CAPKIT is the perfect solution for your Nex10 series connectors.

Key Features and Benefits

• Compact design: With a length of 19.3 mm and a diameter of 12.5 mm, the NEX10-CAPKIT is designed to fit seamlessly into your existing Nex10 connector system.
• High-quality materials: Manufactured under an ISO 9001:2015 certified quality management system, this end cap assembly is built to last.
• Environmental resilience: With an operating temperature range of -55 °C to +85 °C and a storage temperature range of -65 °C to +125 °C, the NEX10-CAPKIT is designed to withstand harsh conditions.
• Regulatory compliance: The NEX10-CAPKIT is compliant with ROHS, CHINA-ROHS, REACH-SVHC, and UK-ROHS regulations, ensuring that you are using a safe and environmentally friendly product.

Technical Specifications

• Coupling Nut Proof Torque: 3 N-m | 26.552 in lb
• Interface Durability: 50 cycles
• Mechanical Shock Test Method: IEC 60068-2-27
• Corrosion Test Method: IEC 60068-2-11
• Immersion Depth: 1 m
• Immersion Test Mating: Mated
• Immersion Test Method: IEC 60529:2001, IP68
• Moisture Resistance Test Method: IEC 60068-2-3
• Thermal Shock Test Method: IEC 60068-2-14
• Vibration Test Method: IEC 60068-2-6
• Weight, net: 9.54 g | 0.021 lb

When installing the NEX10-CAPKIT, use a straight screwdriver tool with dimensions of 1.2x8.0mm and a work torque of 1.5-3N·M. This ensures a secure and reliable connection with your Nex10 female connector.

Don't settle for subpar performance and reliability in your wireless and radiating connector system. Upgrade to the CommScope NEX10-CAPKIT Female End Cap Assembly today and experience the difference that quality engineering and manufacturing can make. Click the "Add to Cart" button now to secure your NEX10-CAPKIT and elevate your connectivity to new heights!
