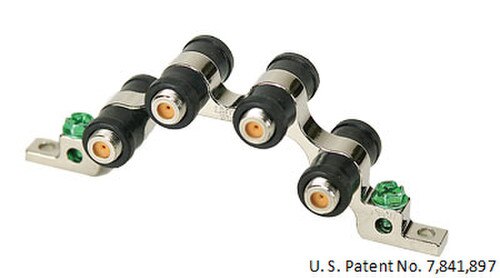

Ground Block, SCTE Quad with WS (GRDBLK4R1-05)

 The internal components of this ground blocks are much different from a standard frequency VHF/UHF ground block. The center coax conductor indexes into a close-tolerance tube that is resilient (spring) brass and is gold plated. The close center-tube tolerance assures a tight connection, the gold plating assures a good electrical connection and the overall performance is greatly improved over standard designs. DIRECTV approved.

• SCTE Outdoor Compliant bonding block
• Rated for 0 MHz to 3 GHz
• One inch spacing between centers of ports
• UV resistant rubber weather seals provided
• UL approved
• Internal components designed for high frequency and low loss
• Gold plated center conductor assures good connections
• Resilient internal metals for dependable repeated insertion connections
• Minimal insertion and return loss numbers
• Two mounting screws are provided with each block
