Hall Research HDMI 4K UHD 18Gps POE w/IR over a Single Cat5/6 up to 165ft Extender Kit (BZB-EXH-50)

  • Brand: Hall Research
  • P\N: BZB-EXH-50
(0)No Reviews yet

Availability: In Stock


Your Price: $99.00

Do you have questions?

Please contact our experts for assistance.

Description

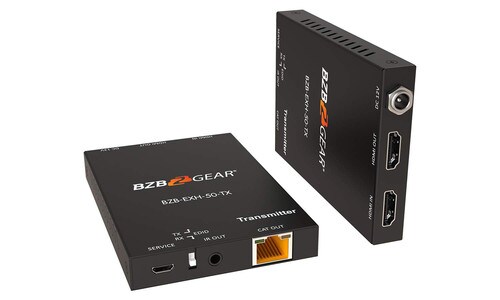

HDMI 4K UHD 18Gps POE w/IR over a Single Cat5/6 up to 165ft Extender Kit (BZB-EXH-50)

Key Features and Benefits

Experience the power of high-definition connectivity with the BZB-EXH-50 4K HDMI Extender kit by Hall Research. This advanced kit transmits audio, video, and IR signals at distances up to 50 meters over a single Cat5e/6/7 cable at resolutions up to 4K/60Hz.

  • HDMI 2.0, HDCP 2.2/HDCP 1.4 and DVI 1.0 compliant
  • Supports 18Gbps bandwidth
  • Supports input and output video resolutions the maximum up to 4k2k/60Hz RGB/Ycbcr 4:4:4/Ycbcr 4:2:2
  • Extends distance the furthest up to 164ft/50m
  • Supports one route HDMI loop output
  • Supports one-way IR control
  • Supports HDR function
  • Supports copy the EDID signal from transmitter's or receiver's display device
  • Compact design for easy and flexible installation

Technical Specifications

The HDMI loop out on the transmitter allows the connection of an additional display. Advanced EDID management assists integration by eliminating HDMI Handshake issues. One way IR control, deep color video, and multiple audio formats including Dolby TrueHD are also supported. These outstanding features coupled with a budget-friendly price make the BZB-EXH-50 an easy decision for any situation requiring long-range HDMI extension.

Why Choose the BZB-EXH-50?

With its advanced features and compact design, the BZB-EXH-50 is a perfect solution for extending HDMI signals over long distances. Whether you're setting up a home theater system or a professional presentation, this extender kit ensures a seamless and high-quality audio-visual experience.

Don't compromise on quality or distance. Choose the BZB-EXH-50 4K HDMI Extender kit for a superior connectivity solution.

Experience the difference today. Add the BZB-EXH-50 to your cart now!

Specifications

Technical
HDMI ComplianceHDMI 2.0
HDCP ComplianceHDCP 2.2/HDCP 1.4
Video Bandwidth18Gbps
Video ResolutionUp to 4K60Hz 4:4:4
Color SpaceRGB/YCbCr 4:4:4, YCbCr 4:2:2, YUV 4:2:0
Color Depth8/10/12-bit
HDMI Audio FormatsLPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS,
DTS-EX, DTS-96/24, DTS High Res, DSD-HD Master Audio, DSD
ESD ProtectionHuman body model: +/-8kV (Air-gap discharge) &
+/-4kV (Contact discharge)

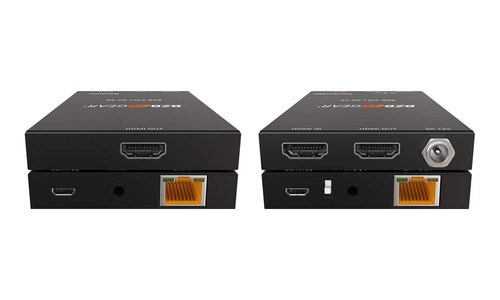

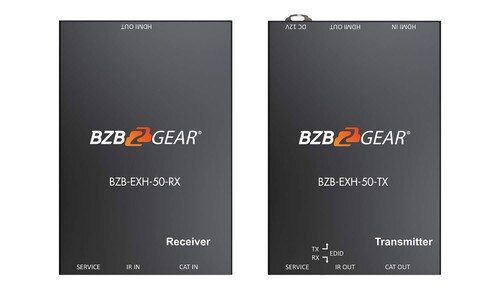

Connections

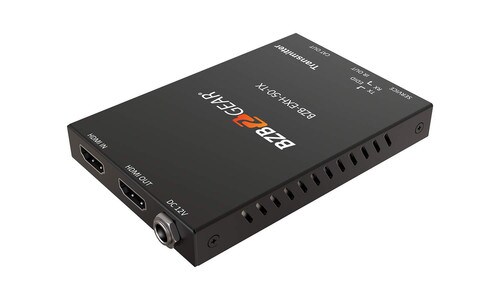

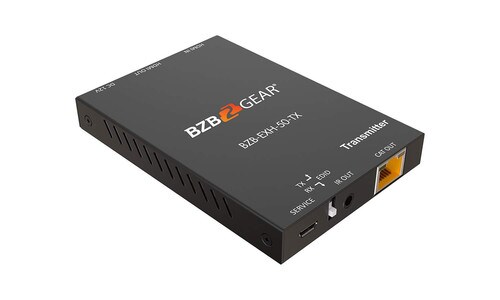

TransmitterInputs:
1x HDMI Type A [19-pin female]
1x SERVICE [Micro USB, Update port]
Outputs:
1x HDMI Type A [19-pin female]
1x IR OUT [3.5mm Stereo Mini-jack]
1x CAT OUT [RJ45, 8-pin female]

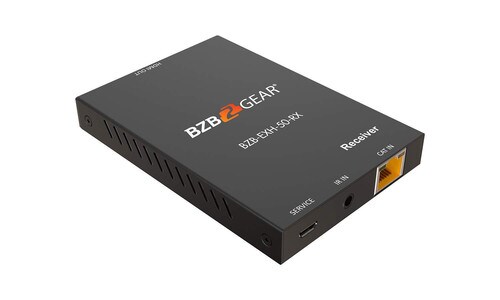

ReceiverInputs:
1x IR IN [3.5mm Stereo Mini-jack]
1x CAT IN [RJ45, 8-pin female]
1x SERVICE [Micro USB, Update port]
Outputs:
1x HDMI Type A [19-pin female]
Mechanical
HousingMetal Enclosure
ColorBlack
Dimensions (WxDxH)4.0in x 2.7in x 0.52in [101.5mm x 69.3mm x 13.3mm]
WeightTransmitter: 0.33lbs [150g], Receiver: 0.32lb [144g]
Power SupplyInput: AC100 - 240V 50/60Hz,
Output: DC 12V/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption6.36W
Operating Temperature32 - 104°F / 0 - 40°C
Storage Temperature-4 - 140°F / -20 - 60°C
Relative Humidity20 - 90% RH (no condensation)
