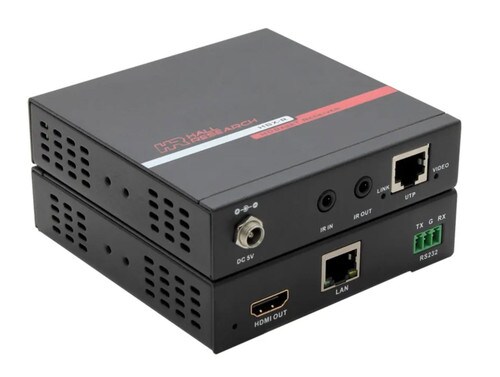

Hall Research HDMI Video Extender (Receiver) With Ultra-HD AV/IR/RS232 and Ethernet (HBX-R)
- Brand: Hall Research
- P\N: HBX-R
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
This product is a Class A HDBaseT compliant Receiver that supports 100meter Cat6 range and is used to extend HDMI, RS-232, IR, and Ethernet (100BaseT) up to 100 meters (328 feet) using a single Cat6 cable.
Since the product uses the HDBaseT standard, video is extended pixel-by-pixel with no compression or latency. The extender supports all PC and HDTV Resolutions including 4K @ 30 Hz 4:4:4 or 4K @ 60 Hz 4:2:0. The IR extension preserves the modulation (carrier) frequency thereby providing compatibility to most standards.
Receiver includes a universal 5v power supply. IR emitter and IR detector cables are included.
Key Features:
- Fully Compliant with HDBaseT standard
- Supports virtually all HDMI and DVI resolutions including 4K UHD
- Extends, Video, Audio, RS-232, IR, and Ethernet
- Supports extension to 100 m (330 ft)
- Fully isolates grounds between TX and RX sides
- Compact, Rugged, Reliable, and Economical
- Plug and play, no configuration needed
- Receiver can be powered via PoC from senders that provide PoC such as HSM-44-BX Matrix Switch with HDBaseT outputs
Specifications
Video Standards:
DVI (single link) and HDMI (compliant with HDMI 1.4 video specifications including 12 bit color depth, 3D video and 4K support)
Signal Type:
TMDS
Resolutions:
DVI signal - VGA (640x480) thru WUXGA (1920x1200) HDTV signal - 480i through 1080p Digital Cinema - 4K30 4:4:4 or 4K60 4:2:0 (4096x2160) up to 60 m
Audio Formats:
All HDMI Embedded Audio including: LPCM 7.1CH, Dolby TrueHD and DTS-HD Master Audio (32-192 kHz sample rate)
DDC:
Pass-Thru DDC for reading EDID directly from remotely connected LCD and HDCP handshake
CEC:
Pass-Thru CEC for Consumer Electronics Control compatible devices
RS232:
Bidirectional (full-duplex) any baud rate up to 115,200
Ethernet:
100BaseT Ethernet LAN
IR:
Extended in both directions. Carrier modulation range from 30 kHz to 60 kHz
Power Supply:
100 VAC to 240 VAC, 50-60 Hz, external; 5 VDC, 2 A, regulated
Power:
10 watts maximum
Temp/humidity:
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, non-condensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, non-condensing
Cooling:
Convection
Mounting:
End plates with hole for surface mounting
Enclosure type:
Metal (Aluminum ends, Aluminum Extrusion)
Dimensions:
1.0" H x 3.9" W x 3.9" D (25mm H x 100mm W x 100mm D) Depth excludes connectors
Safety:
CE
EMI/EMC:
CE, FCC Class A
MTBF:
90,000 hours (Calculated Estimate)
