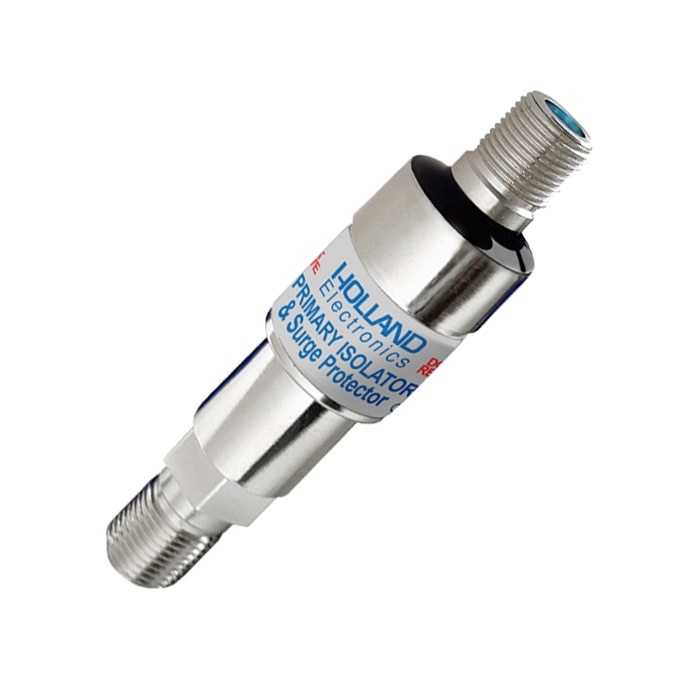

Holland Primary Isolator and Surge Protector (CPI-WHP)

The CPI-WHP is an IEC Class Level 5 isolator offering the surge protection performance necessary to ensure the highest telecom equipment survivability. The device protects cable modems, STB's and other CPE and plant equipment from damage due to fast transients and spikes from electrical storms and power surges.

High winds, thunder, rain showers and flooding are commonplace in regions with high electrical storm activity. The CPI-WHP is rated to IP67 standards for protection against wind-blown objects and moisture - up to full submersion in a meter’s depth of water.

Key Features:

• HIPOT Tested in accordance with EN-60728-11 2005
• Subscriber and CPE Protection
• Reduces the Current Spike Magnitude of each Lightening Strike
• Repeated Lightening Strike Events do not Degrade Performance or Protection
• Sealed for IP67 Compliance Outdoors
• IEC Class A - RFI (EN 50083-2 [2006])
• IEC Class Level 5 (61000-4-5 [2005])

Specifications:
Frequency Range: 5-1000 MHz
Insertion Loss (5-1000 MHz): <0.5 dB
Return Loss (5-1000 MHz): >20 dB Typ
RF Shielding (5-1000 MHz): Meets or Exceeds IEC Class A
