Televes Mast amplifier with BOSS-Tech and “F” Power Supply Unit - 1 input (560383)
- Brand: Televes
- P\N: 560383
- UPC: 8424450214961
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

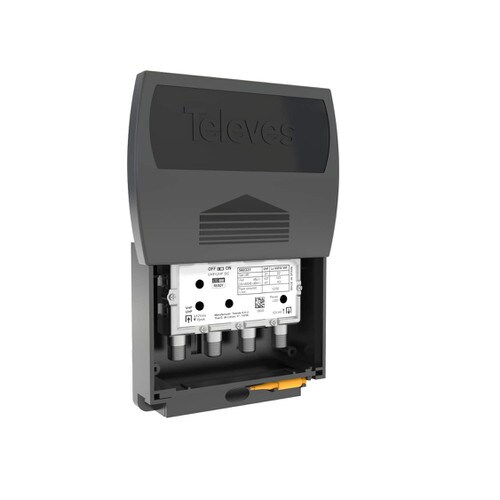

Televes Mast Amplifier with BOSS-Tech and F" Power Supply Unit - 1 input (560383)
This mast-mounted preamplifier features one input covering the entire TV band and can be used with any TV antenna (VHF, VHF/UHF or UHF). Unique to Televes, the new T-Force preamplifier family features automatic gain control ensuring an optimum amount of signal is delivered at all times despite changes in the receiving conditions and avoiding over or under amplification situations. The automatic gain control is independent per band so that adjustments to the UHF channels do not impact VHF channels and vice-versa. It features high gain and powerful output level while the high screening cast metal chassis ensures best-in-class electromagnetic shielding protection. Cast metal and high-grade ABS plastic construction for reliable outdoor installation withstanding the harshest elements.
This particular unit is an entirely new design optimized for the new repack TV frequencies.Its fine tuned steep filters reject any out of band interference, including FM and 5G signals over 608 MHz.
A low-consumption UL-listed power supply is included providing two outputs for convenient distribution to additional TV sets. This Televes preamplifier can also pass power to an active antenna when needed.
Key Features:
- Repack Ready - Fine tuned filtering avoids 5G cellphone interference and allows compatibility with ATSC 3.0 broadcasting (NextGenTV)
- Automatic gain adjustment compensates fluctuations on the received signal ensuring the best output level is delivered and avoiding over/under amplification
- Dual band amplification with independent automatic gain regulation per band. The VHF and UHF bands are independently and automatically adjusted
- Maximum gain: 31dB (UHF, channels 14-36), 22dB (high VHF, channels 7-13), 22dB (low VHF, channels 2-6)
- Very low noise and high output level (47dBmV UHF, 43dBmV VHF)
- 5G and FM filtering eliminates cellphone and radio interference
- Cast metal and resistant ABS-plastic construction for reliable outdoor installation in the harshest conditions
- High-screening metal chassis provides optimal electromagnetic shielding
- ON/OFF switch to allow DC passing towards the input to power up active antennas or other preamplifiers

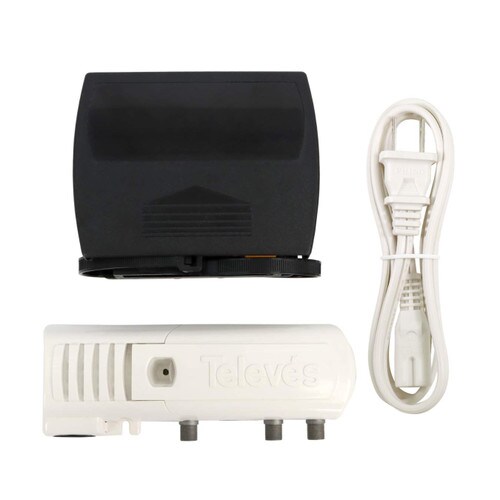

What's in the box:
- Mast Amplifier part - 560331
- Power Supply Unit - 550104
Experience the difference with the Televes Mast Amplifier. It's not just a device, it's a game-changer for your TV viewing experience. Don't settle for less, upgrade your TV signal with the Televes Mast Amplifier today!
Specifications
Mast amplifier:
| Inputs/Bands | LowVHF/HighVHF/UHF | ||||
| Frequency margin | MHz | 54-88 | 174-216 | 470-608 | |
| Gain | dB | 22 | 31 | ||
| Automatic gain adjustment range | dB | 0 ... 15 | |||
| Output level | DIN 45004B | dBmV | 43 | 47 | |
| EN 60728-3 (IMD3 2CH -35dB) | 51 | 55 | |||
| Power supply | Vdc/mA | 12 / 50 | |||
| Max current through inputs | OFF | mA | 0 | ||
| ON | 70 | ||||
| Operating temperature | ºF | +23 ... 113 | |||
| Protection index | IP | 23 | |||
Power Supply Unit:
| Frequency margin | Mhz | 5 - 862 | |
| Through loss (typ.) | dB | 1 Out | Main: 1.5 / Aux: ---- |
| 2 Out | Main 4 / Aux: 4 | ||
| Output interstage equalizer | V | 12 ±1.5 | |
| Max. output current | mA | 220 | |
| Min. output current | mA | 30 | |
| Powering | V~ / Hz | 108 - 132 / 50-60 | |
| Máx. Consumption | mA~ / W | 65 / 3.6 | |
| Protection index | IP | 20 | |
| Operating temperature | ºF | 14 ... +113 | |
Mast amplifier:
| Inputs/Bands | LowVHF/HighVHF/UHF | ||||
| Frequency margin | MHz | 54-88 | 174-216 | 470-608 | |
| Gain | dB | 22 | 31 | ||
| Automatic gain adjustment range | dB | 0 ... 15 | |||
| Output level | DIN 45004B | dBmV | 43 | 47 | |
| EN 60728-3 (IMD3 2CH -35dB) | 51 | 55 | |||
| Power supply | Vdc/mA | 12 / 50 | |||
| Max current through inputs | OFF | mA | 0 | ||
| ON | 70 | ||||
| Operating temperature | ºF | +23 ... 113 | |||
| Protection index | IP | 23 | |||
Power Supply Unit:
| Frequency margin | Mhz | 5 - 862 | |
| Through loss (typ.) | dB | 1 Out | Main: 1.5 / Aux: ---- |
| 2 Out | Main 4 / Aux: 4 | ||
| Output interstage equalizer | V | 12 ±1.5 | |
| Max. output current | mA | 220 | |
| Min. output current | mA | 30 | |
| Powering | V~ / Hz | 108 - 132 / 50-60 | |
| Máx. Consumption | mA~ / W | 65 / 3.6 | |
| Protection index | IP | 20 | |
| Operating temperature | ºF | 14 ... +113 | |
Downloads
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.govReviews
7 reviews
Great product
by Alan
Brought in a lot of channels
Televes Mast Amplifiers
by Greg
Solid Signal shipped very quickly. The Televes amplifiers are well built and seem to perform well. Not sure about the plastic case but, to be fair, our old Channel Master amps had no cover what so ever.
I would highly recommend this product.
by Mike
Amplifier arrived in 2 day's in good condition. I installed it two weeks ago, and my signal strenth lncreasd from 45 to 84 . My channel's increased from 23 to 41 . Very easy to install, very happy with product.
Not worth the Money
by David Caughron
Not worth the money, cheap construction. Not fully weather proofed. Better off with a Channel Master 777u
Televes Mast Amplifier
by Walter
I was very pleased with the product and especially how quickly my order was processed. My item was received the next day via UPS and there was no shipping charge.
SOLID-SIGNAL !!!
by J.D.
Excellent results, no more pixelating, picked up several out-of-the-way extra stations, Quality product…. Very happy with SOLID signals customer service.
Televes Mast amplifier 560383
by Douglas
Overall the performance seems to be good. I was however disappointed with the coax connection area of the mast unit. The connectors I have (weatherproof) didn't fit perfectly when trying to close the clam-shell. I had to modify it with a dremel to allow it to close completely. Also, the electronics aren't mounted as securely as I had hoped. As I feared it would knock a round a bit in the wind I wrapped a bit of Velcro tape around it. Additionally I added a second zip tie to the upper half of the unit for added security on the mast; the one supplied was on the bottom. I don't think it the best location.
