Olson Technology Premise Node Receive Only (OTPN-412C)

  • Brand: Olson Technology
  • P\N: OTPN-412C
(0)No Reviews yet

Availability: In Stock


Your Price: $376.00

Do you have questions?

Please contact our experts for assistance.

Description

Description

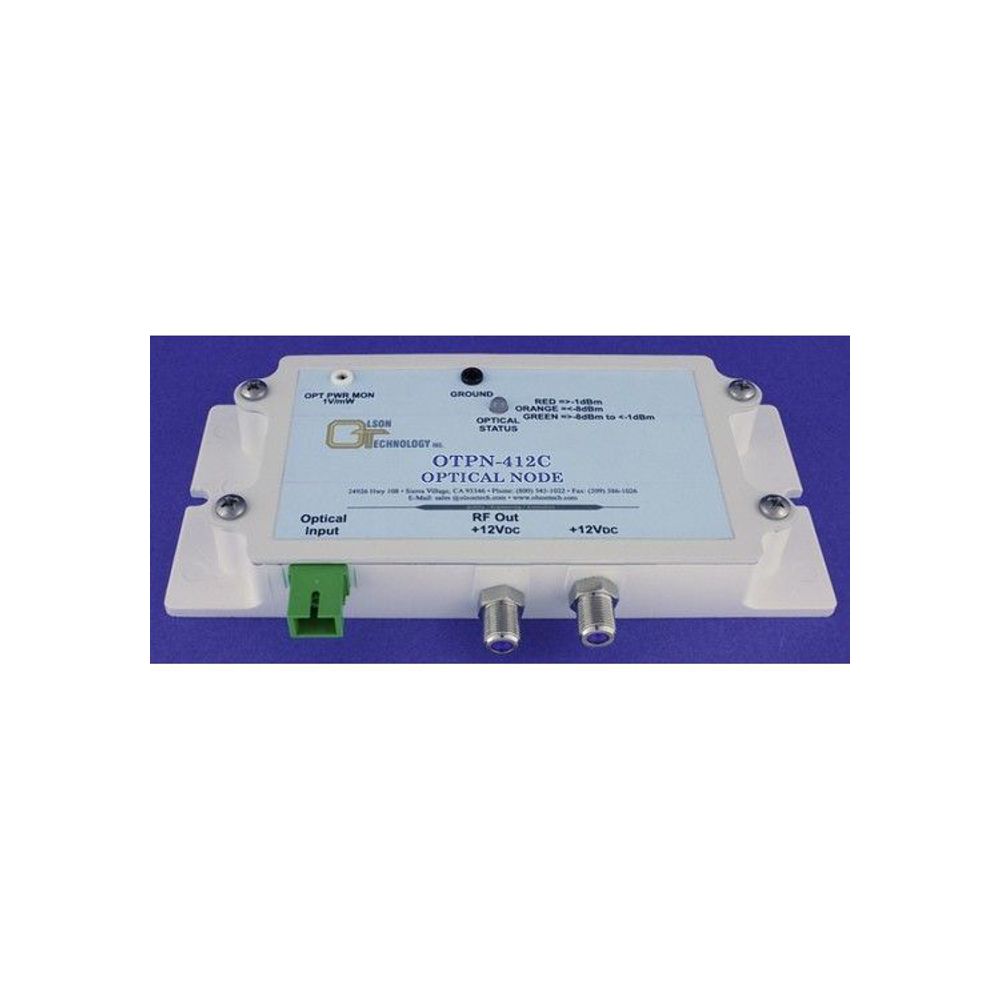

Olson Technology Premise Node Receive Only (OTPN-412C)

Key Features and Benefits

The Olson Technology Premise Node Receive Only (OTPN-412C) is a compact, indoor CATV receive-only node that delivers multiplexed video, data, and telephony services in an HFC or PON broadband CATV environment. This high-performance, compact indoor node is perfect for FTTH, FTTx, MDU, corporate, government, educational, and other applications.

  • Enhanced RF bandwidth of 48-1,220MHz supports most analog and QAM digital broadcast transport applications, including new DOCSIS 3.1 bandwidths.
  • Wide optical input window of 0 to -8dBm at 1310/1550nm.
  • High RF output range: +28dBmV @ -1dBm optical input and +14 dBmV @ -8 dBm optical input.
  • Full forward path bandwidth of 40-1,220MHz with low noise and distortion.
  • Calibrated DC test point for optical input power (1V/mW).
  • Tri-colored LED indicates optimal input range and power on.
  • +12 VDC for local or remote "up-the-coax" powering via a Power Inserter Coupler (PIC).
  • 6kV surge tolerant RF output and SMT construction for consistency, reliability, and performance.
  • Low power consumption.
  • New compact, light-weight, rugged cast aluminum housing for easy installation.

Technical Specifications

The OTPN-412C is designed with the latest optical receiver technology and is constructed with high-quality components to meet its performance specifications over a wide temperature range in an uncontrolled environment. It requires protection from the elements and is designed for desktop, shelf, or wall-mounting. The OTPN-412C offers good optical sensitivity, high RF output level, optical input power DC test point, and optical level LED indicator. The unit includes a provision for flexible powering of the node, either locally through the DC Power IN "+12V " port, or remotely up the coax drop DC through the "RF OUT/+12V " port via an optional Power DC Inserting Coupler (PIC). The OTPS-12A-F ships with the unit. The OTPS-12A-F consists of a +12V/1.5A AC/DC power supply and a "F" connector adapter. The OTPN-412C is the perfect companion to the Olson Technology, Inc. LaserLite and LaserPlus forward transmitter product families. It is also designed to mate with 1310nm, 1550nm, CWDM and DWDM optical transmitters from most leading manufacturers.

Experience the power and reliability of the OTPN-412C. Upgrade your network today and enjoy the benefits of advanced technology and superior performance. Order now!
