CommScope Stand-Off Bracket, 2 Foot (S-200)
- Brand: CommScope
- P\N: S-200
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

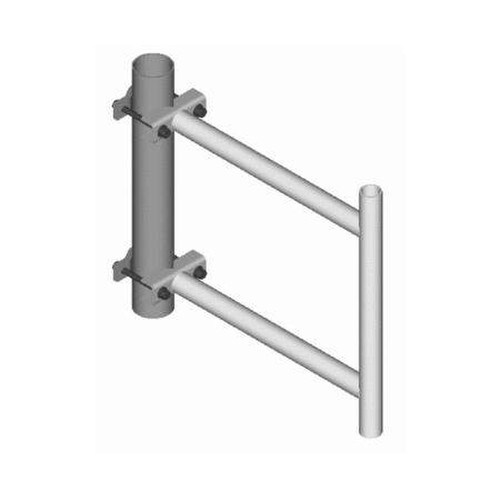

Introducing the CommScope S-200 Stand-Off Bracket: A Reliable Structural Support Solution
When it comes to building a reliable and efficient network infrastructure, the CommScope S-200 Stand-Off Bracket is an essential component. This versatile stand-off mount is designed to provide structural support for your antennas, ensuring optimal performance and longevity. With its robust construction and easy installation, the S-200 is the perfect solution for professionals looking to enhance their network infrastructure.
Key Features:
- Designed for straight or tapered legs up to 88.9 mm (3-1/2 in) OD
- Includes clamps for easy mounting
- Accommodates one 20 ft omni antenna
- Constructed with hot dip galvanized steel for durability
- Tested for wind resistance up to 120 mph at 150 ft AGL
Upgrade your network infrastructure with the CommScope S-200 Stand-Off Bracket today and experience the difference in performance and reliability. Don't wait – invest in the best for your network now!
Specifications
Product Classification
| Product Type | Stand-off mount |
General Specifications
| Mounting | Straight or tapered legs up to 88.9 mm (3-1/2 in) OD, clamps included |
| Note | One 20 ft omni antenna |
| Pipe, quantity | 1 |
| Tower Taper | Non-tapered | Tapered |
Dimensions
| Height | 609.6 mm | 24 in |
| Width | 127 mm | 5 in |
| Length | 609.6 mm | 24 in |
| Pipe Length | 609.6 mm | 24 in |
| Pipe Outer Diameter | 48.26 mm | 1.9 in |
| Stand-off Distance | 609.6 mm | 24 in |
Material Specifications
| Material Type | Hot dip galvanized steel |
Mechanical Specifications
| Wind Rating | 120 mph (BWS) at 150 ft AGL |
| Wind Rating Test Method | TIA/EIA-222 |
Packaging and Weights
| Included | Clamps | Stand-off |
| Packaging quantity | 1 |
| Weight, net | 9.9 kg | 21.826 lb |
Regulatory Compliance/Certifications
| Agency | Classification |
|---|---|
| ISO 9001:2015 | Designed, manufactured and/or distributed under this quality management system |
Downloads
