Televes Ellipse Mix Amplified TV Antenna - LTE Ready (148883)
- Brand: Televes
- P\N: 148883
- UPC: 8424450230060
Do you have questions?
Please contact our experts for assistance.
Description

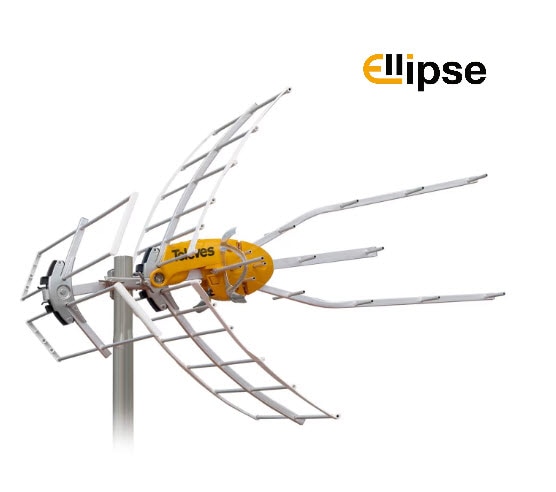

The Ellipse Mix is an advanced over the air TV antenna that automatically adapts its gain in real time to optimize the reception of television signals, ensuring the optimum level of signal is delivered at all times. This latest repack-ready version has been completely redesigned from the ground up for the new US broadcast frequencies, filtering any interfering 5G signals above 608MHz, and providing independent amplification for the VHF and UHF bands. The antenna is able to receive very weak signals while at the same time avoiding overload caused by very strong signals. The Ellipse Mix is a high gain directional antenna designed to offer stable and high quality reception of High VHF and UHF only (RF channels 7-36) in mid to long-range receiving scenarios despite continuous changes in weather and transmitting conditions thanks to its exclusive and intelligent built-in TForce amplifier.

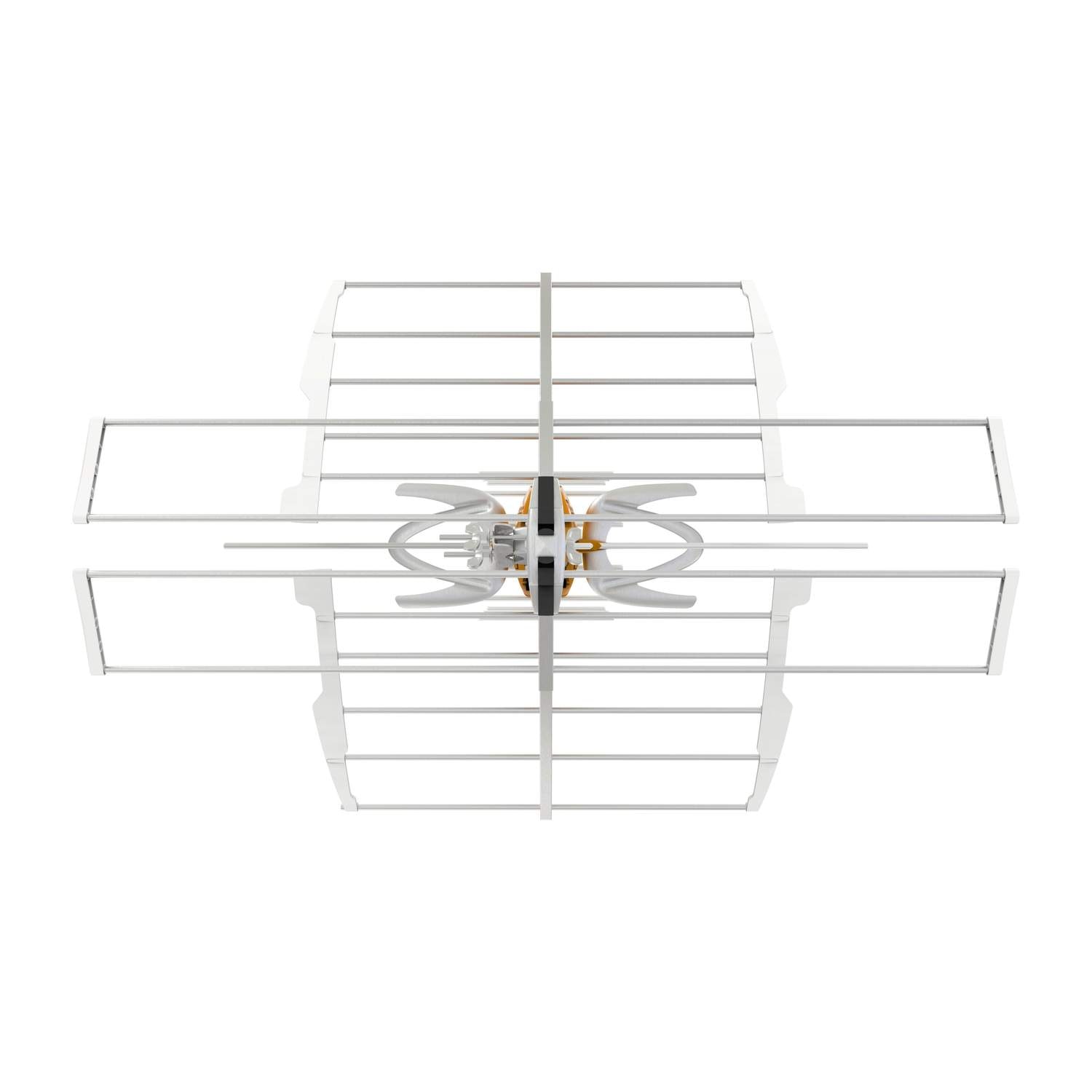

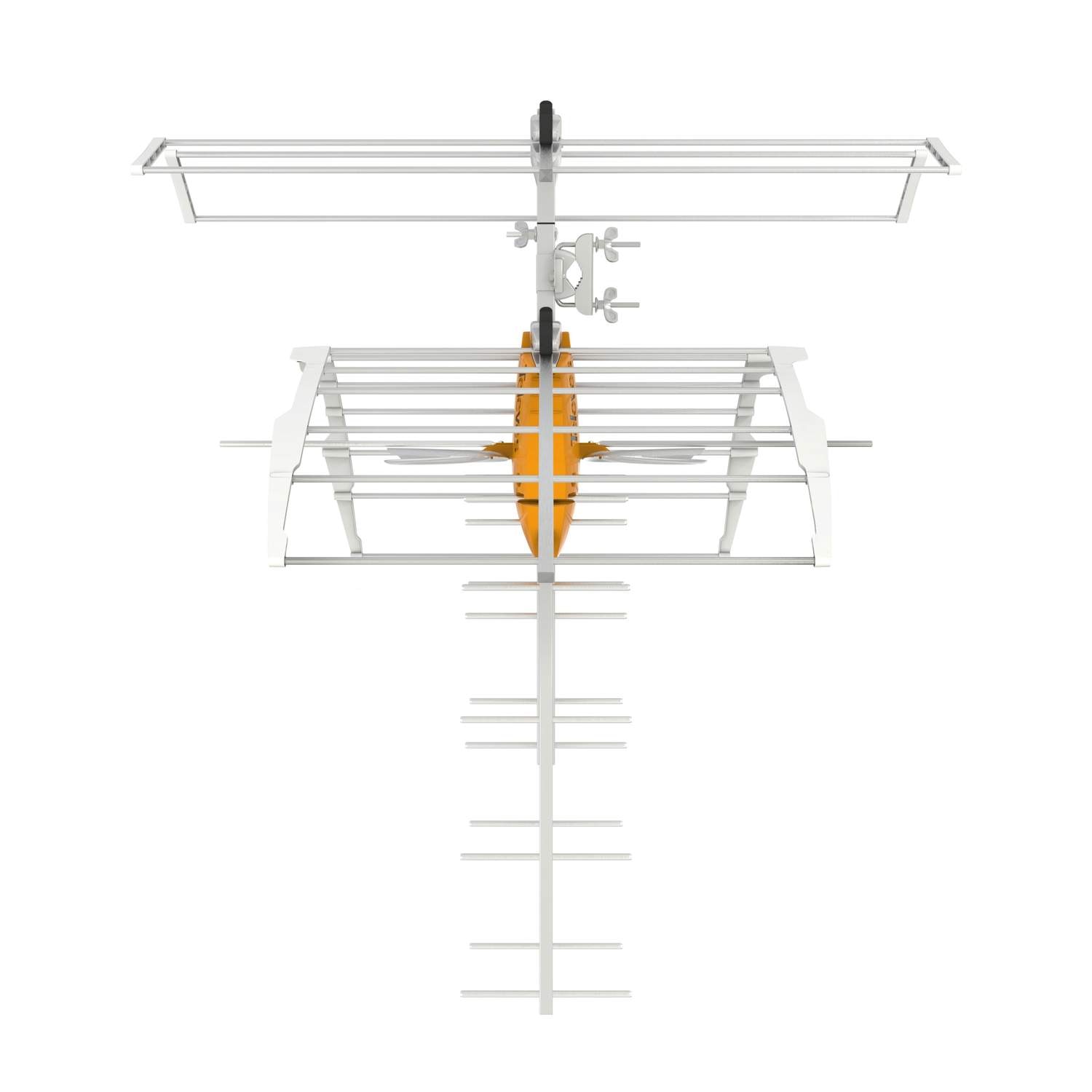

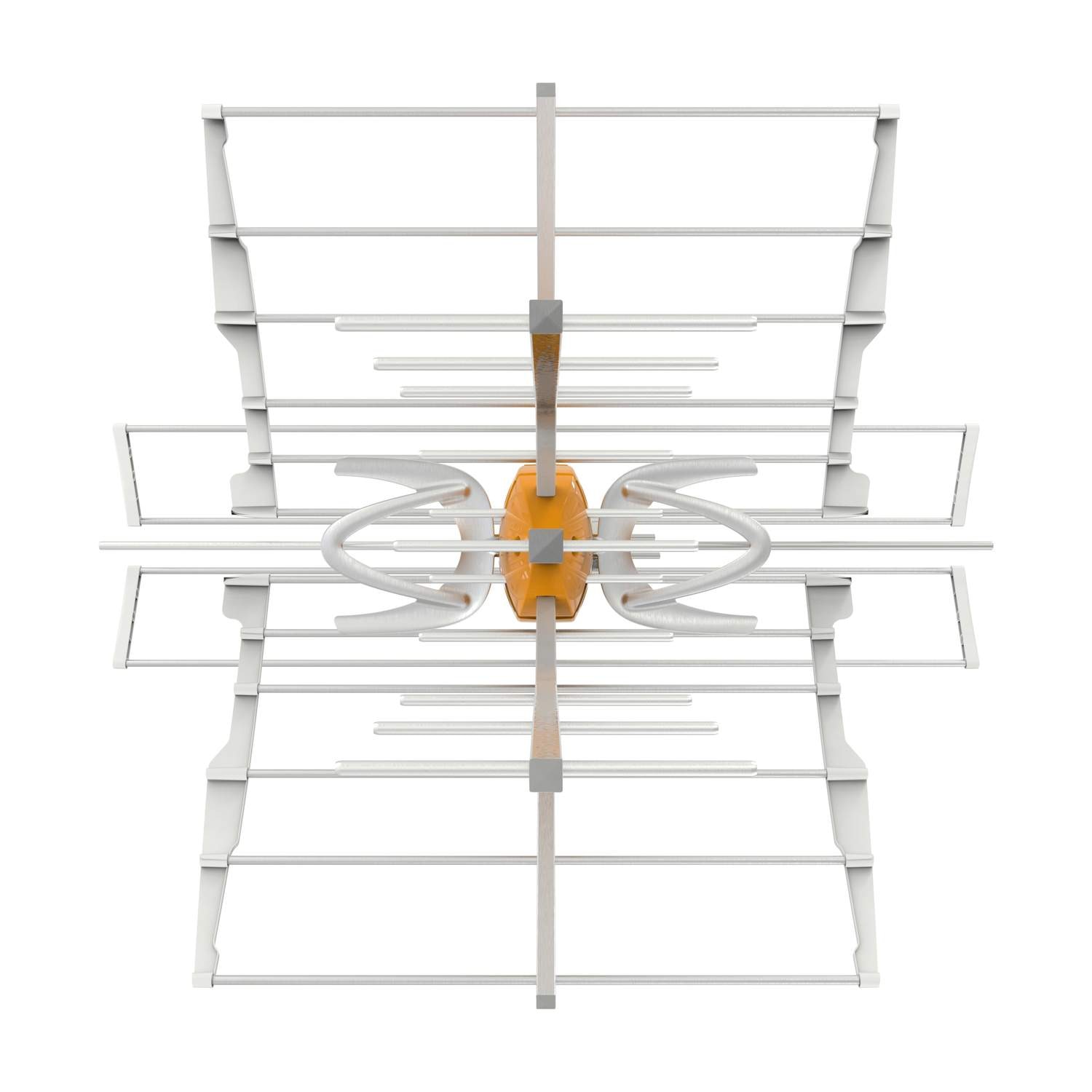

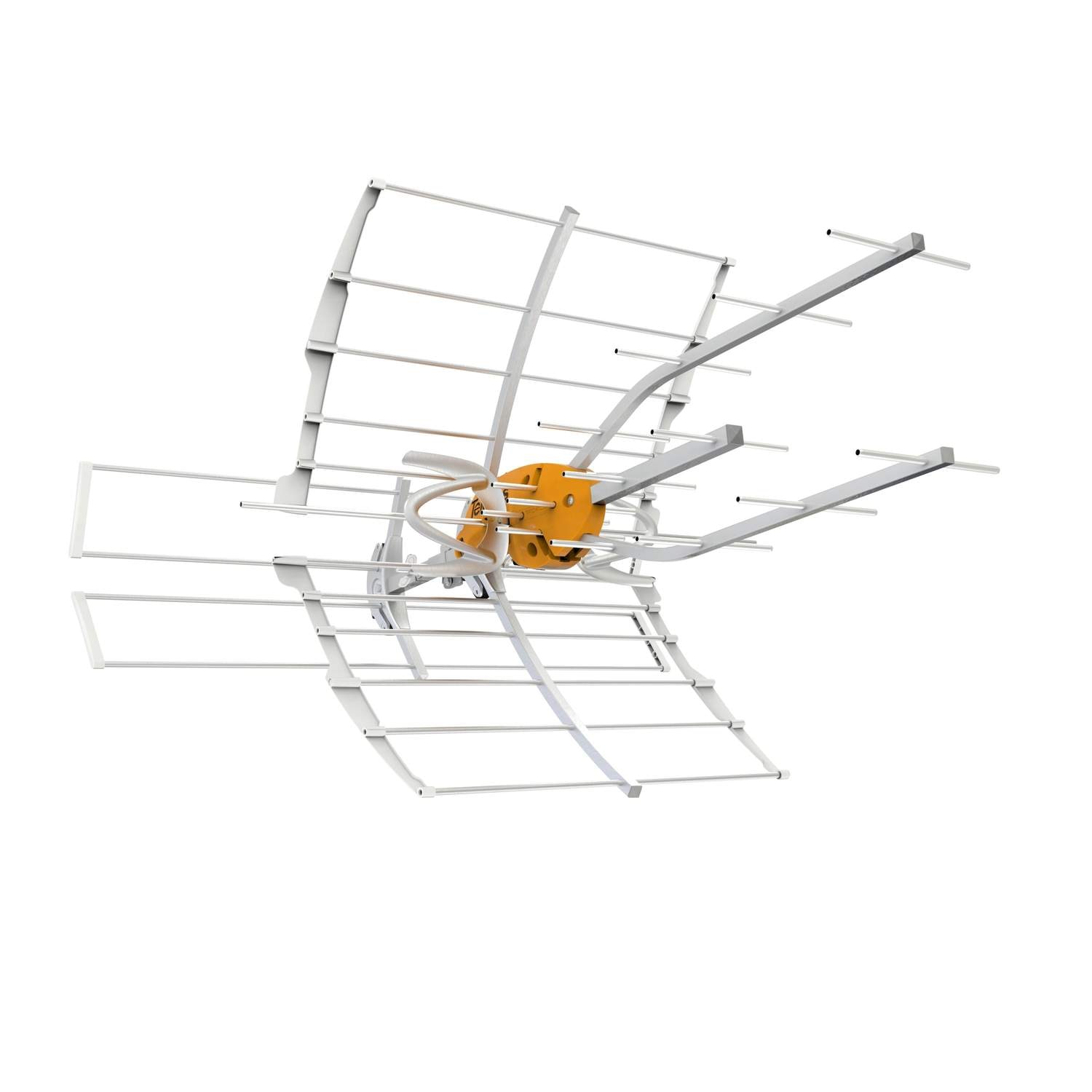

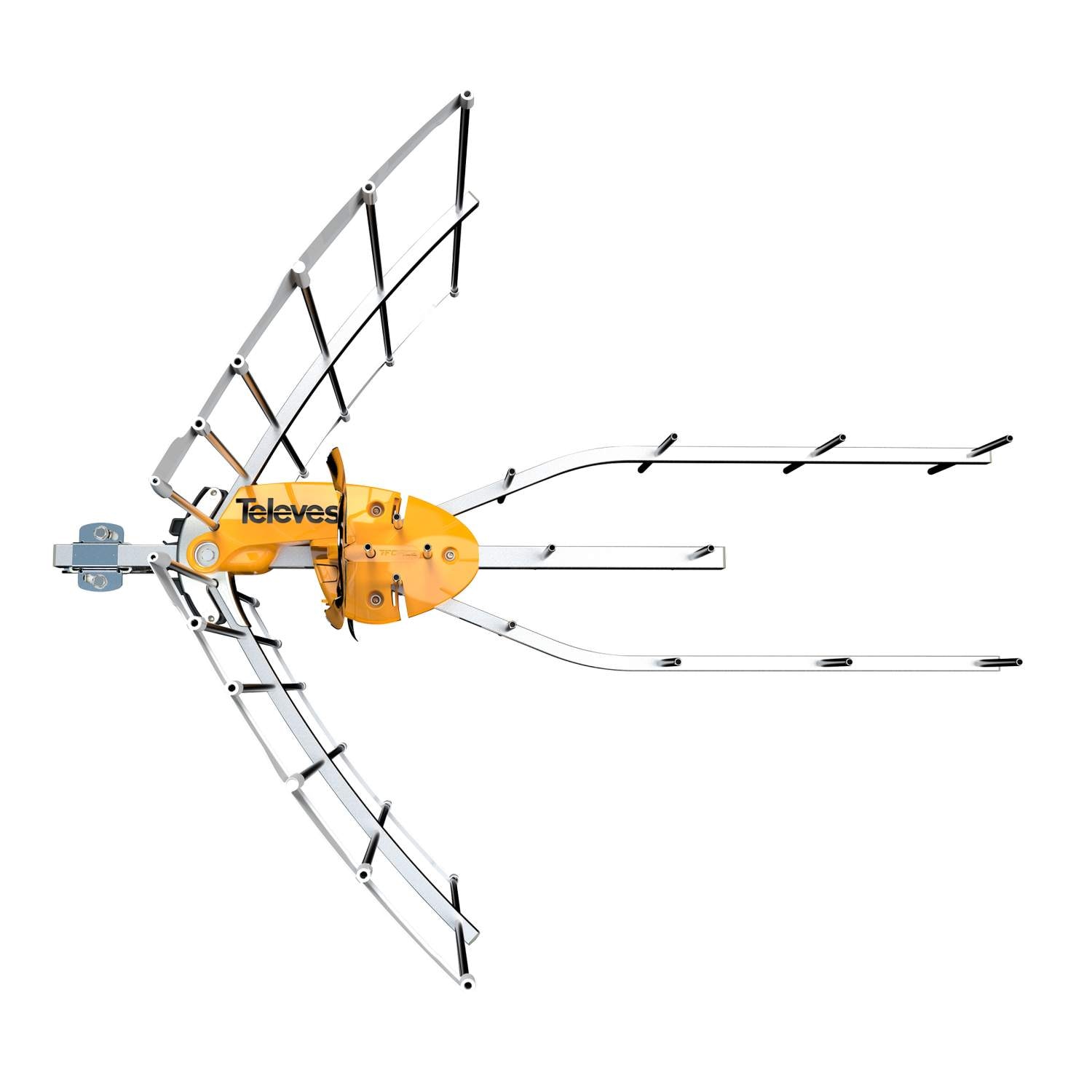

The Televes proprietary triple boom design ensures maximum raw gain in a compact and install friendly form factor suitable for outdoor or attic install. The Ellipse Mix ships in an eco-friendly compact package and assembles in less than 60 seconds. No additional preamplifier purchase is required as the antenna includes a best-in-class very low-noise TForce preamplifier built in right at the dipole with automatic gain control, plus FM and cellphone signal filtering adapting to any installation situation. A low-consumption UL-listed power supply is included providing two outputs for convenient distribution to additional TV sets. Not only do industry experts rave about the Ellipse Mix exceptional performance but also the unparalleled manufacturing quality using only the finest materials (aluminum, stainless steel, ABS plastic) ensuring years of trouble free operation in the most challenging environments. The Ellipse Mix is your best option for a compact high gain TV antenna with uncompromising performance.
Key Features:
- The antenna has been completely redesigned for reception of TV signals on RF channels 7-36
- Crystal clear TV reception enabled by a built-in T-Force preamplifier that automatically adjusts its gain independently for VHF and UHF signals for an optimum no-compromise performance
- Elegant cutting edge design built strong to withstand the harshest elements
- FM and LTE/5G filtering eliminates radio and cellular phone interference

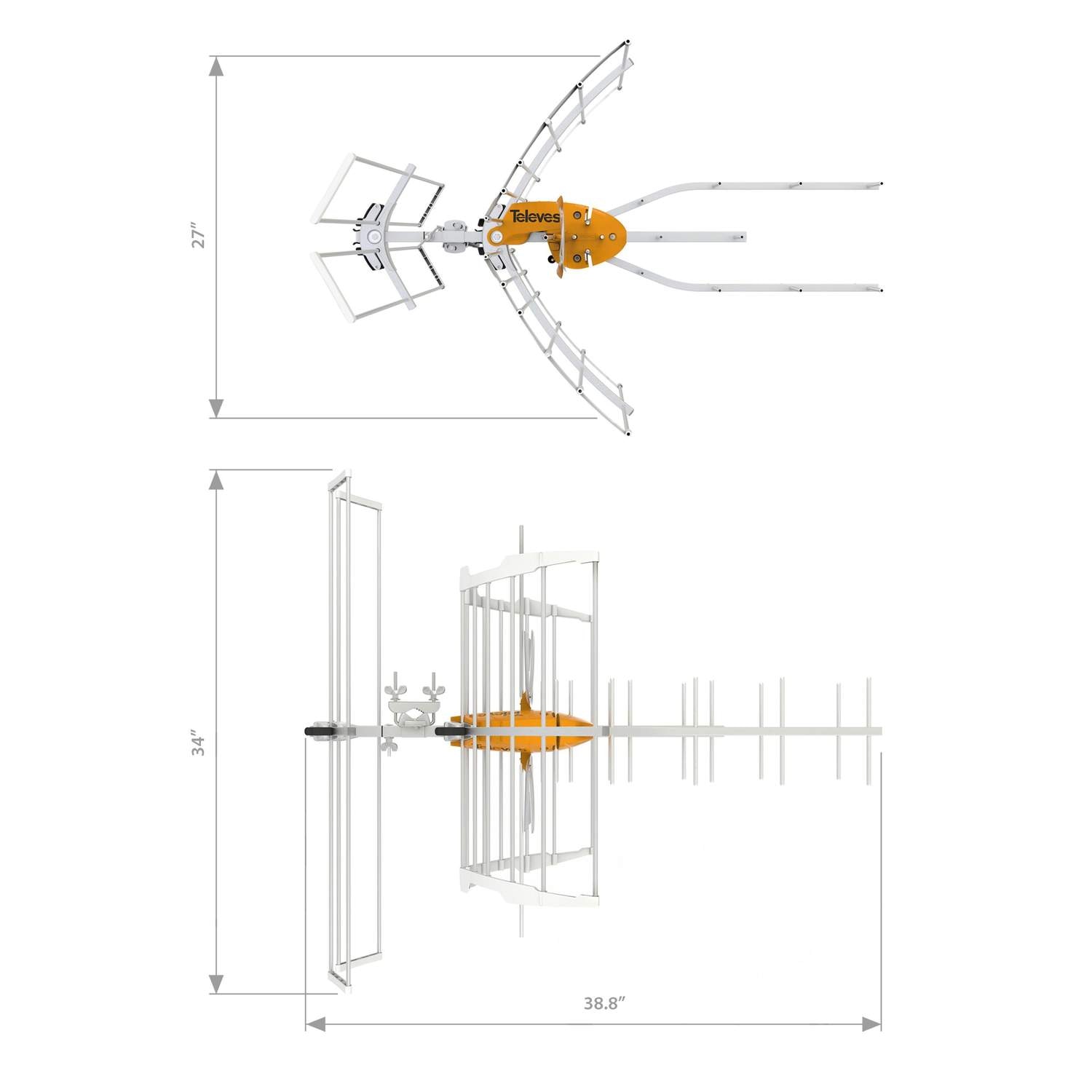

- Designed as a compact easy to install product for professionals and consumers alike (38.8 x 34 x 27 in)
- Unlike most other antennas the preamplifier, power supply and LTE/5G filter are included making Ellipse your best value
- Built-in TForce preamplifier continuously analyzes TV signals received by the antenna to provide the optimum gain and delivered signal level at all times. Based on proprietary MMIC technology exclusive to Televes offering unparalleled performance
- In the event of power failure, the Ellipse Mix will continue to work in passive mode, bypassing the built-in antenna electronics. The antenna can operate in active (amp turned on) or passive mode (amp turned off)
- Televes, a world renowned leader of commercial and consumer television solutions with its own research, development and manufacturing facilities provides outstanding quality products for your TV signal reception
What's in the box:
- Televes Ellipse Mix Amplified TV Antenna - LTE Ready (148883)
- Assembly hardware
- Mounting hardware
- Instruction Manual
Features
- Extremely lightweight and compact: it makes installation in challenging locations easier and offers lower wind resistance
- The highest dynamic range: it allows the reception of a quality signal in a variety of situations, detecting very weak signals and avoiding overload with high reception levels
- Optimal C/N: the signal quality is always preserved thanks to a very low noise figure
- Optimal gain: intelligence auto adjusts the gain to the optimal level
- Special double-U dipole: it's open/close format provides optimal frequency response flatness
- A fully shielded switch box protects the BOSS system from impulsive noise; grounded for full protection against electrical discharge
- Low consumption in intelligent mode
- Made in Europe: Manufactured in a fully automated production and verification line that ensures the highest level of performance guarantee
TForce technology:
Televes transitions from the traditional silicon era into a new era of electronic component design, allowing integrated circuits to be precisely manufactured for microwave frequency bands. Utilizing “State of the Art” MMIC technology TForce is manufactured using semiconductor compounds such as gallium arsenide (GaAs), providing the resulting products with unparalleled features and performance
Televes has reinvented the antenna concept. Until now, an antenna was just the reception component of a TV installation in which gain and directivity were the main features. The introduction of a smart device like BOSS provides the antenna with the capacity to receive very weak signals without the risk of being affected by very strong signals, the result is a dynamic balance between weak and strong signals that provides optimum signal levels at all times: the "dynamic range" concept turns out to be the most outstanding among quality parameters.
The creation of TForce with BOSS technology using MMIC components is an extraordinary milestone in the optimization of the dynamic range. The technology that allowed the reception of lost signals from distant satellites is now allowing the enhancement of the coverage range in DTT installations.
Specifications
Bands |
| ||||||||
---|---|---|---|---|---|---|---|---|---|
Frequency range | MHz |
| |||||||
Channels |
| ||||||||
|
| ||||||||
Gain | dBi |
| |||||||
Output level |
| ||||||||
Signal level of use |
| ||||||||
Powering |
| ||||||||
Max. current |
| ||||||||
Beamwidth | º |
| |||||||
F/B ratio | dB |
| |||||||
Wind load (@130Km/h) | N | 96 | |||||||
Wind load (@150Km/h) | N | 132 |
*1 The gain is automatically adjusted according to the level of output.
*2 The gain is automatically adjusted according to the level of output.
Downloads
Reviews
52 reviews
Blew me away - from the floor
by Springbok
Our house is on the back side of a wooded hill. We suffer from sometimes-patchy reception at night, especially in rain. The Televes 148883 replaces my second HD Stacker from Denny's Antenna Service which was mounted on a ten-foot pole attached to a roof gable. Both worked well for over ten years, but I wanted to try the 148883 for a number of reasons: 1) I no longer need access to low-VHF; 2) to see if the adaptive amplifier would help. The Televes went together easily once I understood the instructions. As the Stacker would be difficult to remove and harder to replace, I tried the Televes on the lounge floor without re-tuning and was surprised to receive all the old stations, albeit somewhat weaker. In place on the 10' pole, all stations are now substantially stronger than before: (virt ch 31) 32->34dB; (19) 23->30; (25) 25->27; (15) 27->27; (34) 36->36. Without power to the amplifier, channels 8 and 10 dropped to the dB teens; the others remained high. I am impressed.
Very good reception
by William Morris
The antenna was able to get many more channels in the same location. This antenna is well built and should last many years.
Best antenna for the price
by Marty ricker
Great medium size antenna that powerful in pickup great range
No more intermittent signal.
by JOHN -
I live in Livonia MI. It’s not too far from the stations, but the tall trees here cause problems for some channels; especially on windy days. I have tried five different antennas over the last 20 years. This antenna fixes it! Very pleased with the product.
Happy customer
by Chuck
Am very pleased with Solid Signal service. My item was delivered on time and the Televes Ellipse Mix Antenna is performing as I expected. Would definitely recommend Solid Signal and Televes to anyone in the future. Kudos to all
Happy
by John
Televes Ellipse is a great antenna. I am about 45 miles from my towers and I am getting signals above 60 in most cases. Very happy with purchase.
Great Antenna
by D in Northwest Ohio
The Televes Ellipse Mix exceeded my expectations. It pulls in 46 channels from a fixed mount on my chimney. I’m very happy with it.
Eclipse mix antenna
by Jerry
Our cottage is 60 - 70 miles from any tv station. We had a cheap antenna from ebay that worked ok getting about 13 stations. After installing the eclipse mix model we got 33 channels. Works well especially since I have it mounted only about 12 feet from the ground. Very satisfied with quality and great customer service
I’M IMPRESSED!
by Roy K
The Ellipse Mix is a great antenna! I’ve only had it about two weeks, but it has exceeded my expectations, so far. My location is about 60 miles from Austin and 70 miles from San Antonio. The difference in direction angles is nearly 90° and I’m getting a good signal from both areas. Also, it was easy to assemble and install.
Excellent choice
by Steve
Shipping was extremely fast. Received in 2 days. Very easy to assemble took about 20 minutes, no tools. Increased signal strength on the 5 stations I really wanted to 100 on 3 and over 80 on the other 2. Went from receiving a total of 31 stations to 43. Very pleased as this was the 3rd antenna I have purchased over the past 6 years and none of the previous ones worked as expected. Solid purchase!!
