Televes High-VHF Yagi Antenna (106501)
- Brand: Televes
- P\N: 106501
- UPC: 8424450134955
Live Chat
Contact Us
Description

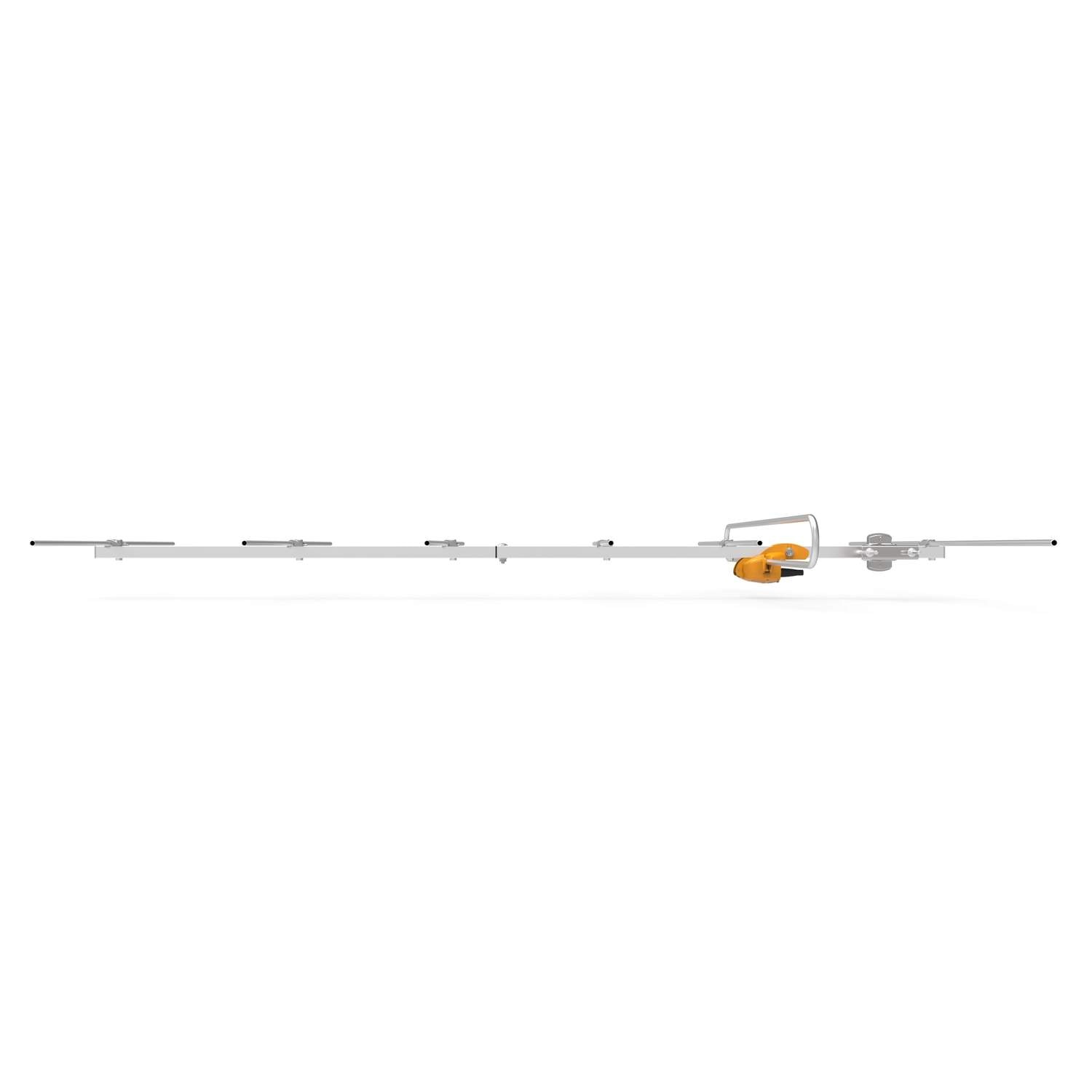

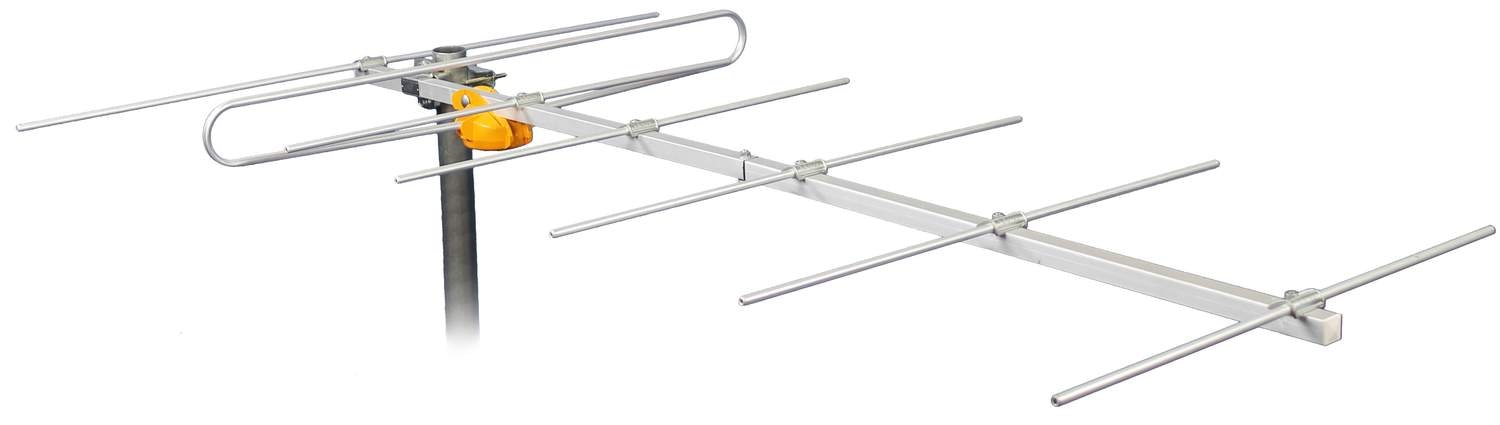

Televes High-VHF Yagi TV Antenna (106501)
Best For
Outdoor over-the-air TV installations that specifically need directional reception of high-VHF channels 7-13.
Why Choose the Televes 106501?
This passive Yagi antenna is optimized for high-VHF reception and uses a directional design to focus reception toward the desired broadcast towers while rejecting signals outside its intended band.
Key Benefits
- Designed for high-VHF RF channels 7-13

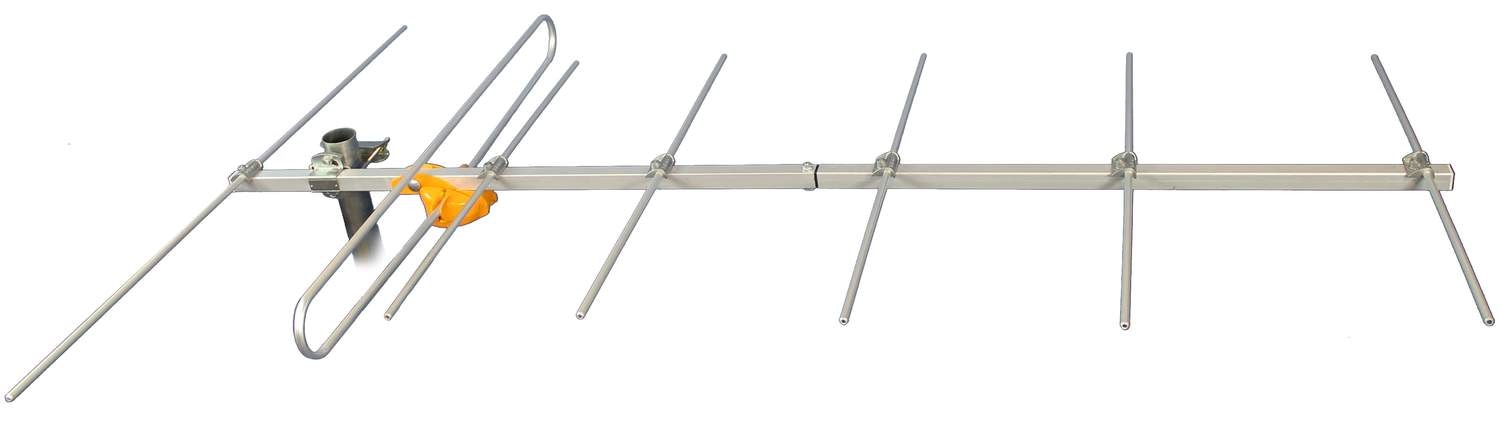

- Directional Yagi antenna design
- Passive operation with no amplifier power required

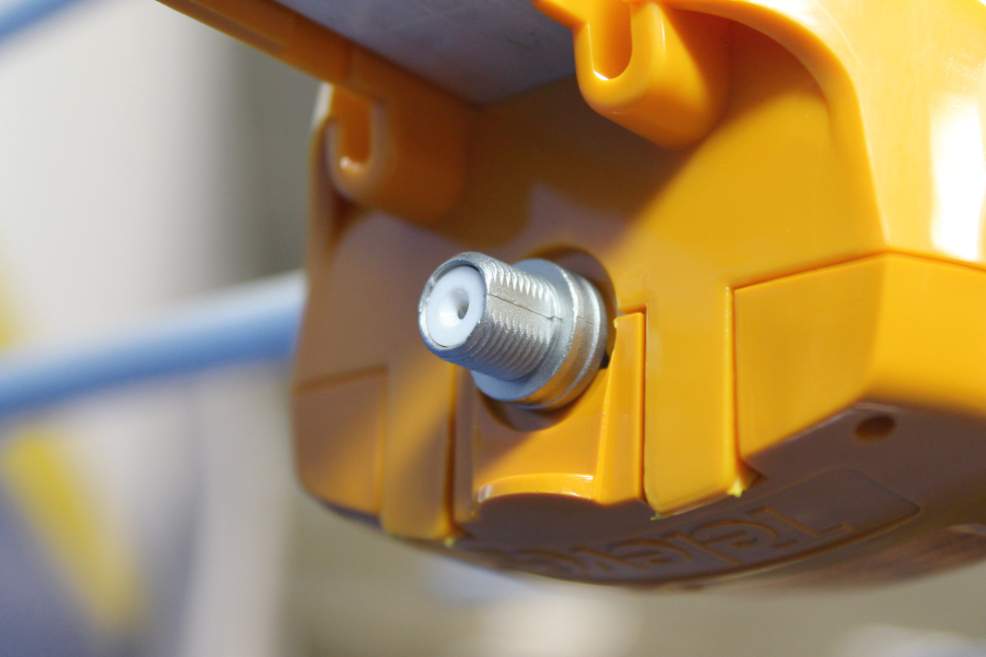

- Connection box includes a balun for impedance matching
- Corrosion-resistant aluminum and high-grade ABS construction

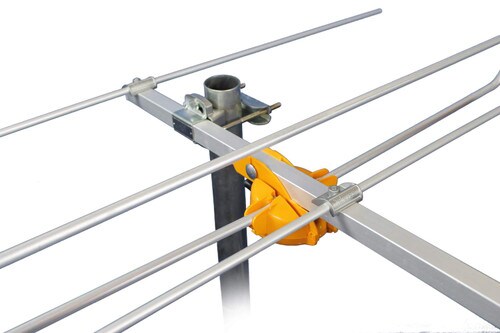

- Heavy-duty zamak mast clamp
- Approximate dimensions: 55.5 x 35.3 x 4 inches
Who Should Buy the 106501?
OTA viewers and professional installers who have confirmed that their desired stations broadcast on high-VHF channels 7-13 and need a directional antenna for those frequencies.
What's Included
- Televes High-VHF Yagi antenna
- Assembly hardware
- Mast clamps
- Instruction manual
Actual reception depends on transmitter frequency and power, terrain, obstructions, antenna height, aiming, and local conditions.
Learn more:Visit the Solid Signal blog for Televes articles.
Specifications
| Bands |
| ||
|---|---|---|---|
| Frequency range | MHz |
| |
| Channels |
| ||
| Gain | dBi |
| |
| F/B ratio | dB |
| |
| Wind load (@130Km/h) | N | 71 | |
| Wind load (@150Km/h) | N | 97.7 | |
| Mast diameter | mm | 20 ... 50 |
Downloads
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov
Reviews
13 reviews
Best VHF antenna
by Great antenna
This is my second one and second review. Works great
Great high VHF Antenna.
by Guy
Bought one for a new tv with high end amp.(not here, sorry) Only set that has been getting KGTV 10 lately. 8 and 10 are my hard stations to get in San Diego. UHF easy. 15, 39, 51, 69. (also ATSC3, sometimes). Using old uhf Channel Master. Wrong direction.
great well built antenna.
by steve f
I use this antenna now after using the stellar labs deep fringe vhf 76.This antenna is smaller and better built than the China stellar labs and works just as good after testing both of them.I have this combined with the televes elipse. Same price too.
Excellent quality!
by Steve
Very high quality, I really like it. Assembly is a bit of a pain, but it's a good antenna.
Good Quality; Careful Assembly Required
by K8SS
The TELEVES HI-VHF is a seven element yagi with anticipated gain of 9.5 dBi. The construction quality is very good. Assembly requires a 10mm wrench (not supplied). Care must be used in attaching the folded dipole and integral plastic housing, with close attention to orientation and location. Signal strength was measured using the signal diagnostic function of a SONY BRAVIA 4K television set. and its relative signal strength indicator and SNR indicator. The TELEVES antenna did not appear to produce a marked improvement in relative signal strength nor in SNR compared to the log-periodic antenna being replaced, but reception seemed to improve in that an error-free signal was being received at a SNR that was about 1 dB lower than was needed on the comparison antenna to produce an error-free signal. I attribute this perhaps being due to a tighter pattern and thus better rejection of multipath signals. I am a retired Television Broadcast Engineer and very familiar with antennas.
Very well built solid, light, WORKS
by CaptnE76
I think this antenna has about 9db gain and its well built, 10mm hardware, solid and very light yet strong. Works great.
hi band yagis
by Keith A.
outperforms better than other 5 element yagis; meaning skyblu and stellar
Good Vakue and Performance
by Jay H Ballard
This antenna works very well. Good performance for the money. Highly recommended
Good VHF HD antenns
by Chuch Jr
worked well - Excellent gain on VHF which is needed in our area in order to get ABC & PBS stations from NY city - Instructions could be a little better to understand
Excellent antenna!
by Paul g
Excellent antenna.bought it for fm, adequate for fm reception.then tried it for TV was surprised it picked up uhf channels.got good reception on all channels in Birmingham and tucaloosa market
