Toner Cable Diplex Filter 5-42/54-1220 MHz (DPX-42-1220)

Toner Cable Diplex Filter 5-42/54-1220 MHz (DPX-42-1220)

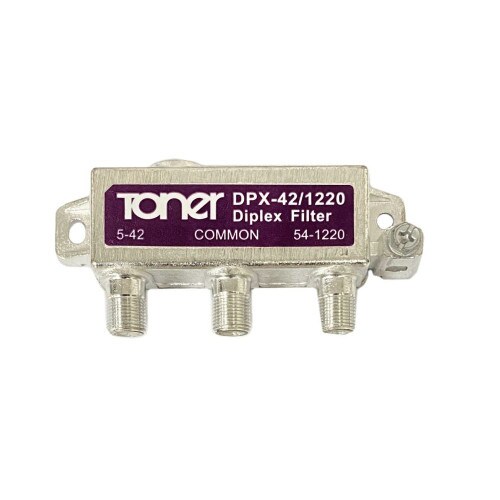

Toner’s Diplex Filters are designed for the new DOCSIS 3.1 frequencies but are also compatible with standard 1000 MHz system.

They feature a small compact housing that has a solder back for 120 dB RFI shielding. Three models are available to fit different reverse frequencies 5-85 MHz, 5-42 MHz and 5-204MHz for use depending on system requirements.

The DPX-42 passes to 1222 MHz and the DPX-85, DPX-204 pass to 1794MHz so they are future proof as systems increase bandwidth.

Impedance: 75 Ω
Connectors: “F” Female
Size: 3-1/2” x 1-3/8” x.5/8”

Insertion Loss: (5- 42 MHz)
0.85dB (typ)/1.5 dB (Max)
Insertion Loss: (54-1220 MHz) 1dB(tap)/1.8 dB(Max)
Return Loss: (5-42 MHz, 54-1220 MHz)
18 dB(typ)/ 14dB(min)
Isolation: (5-42 MHz, 54-1220 MHz)
50dB(typ) / 45dB(min)
