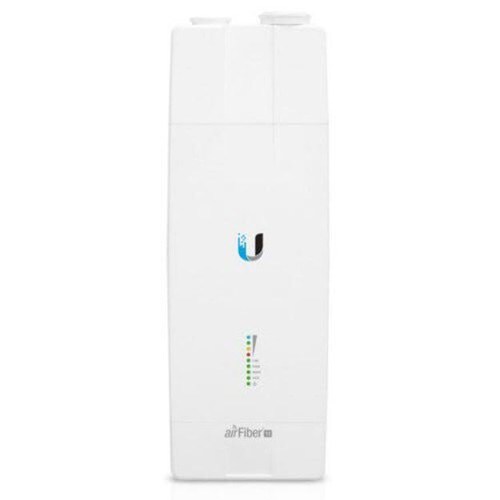

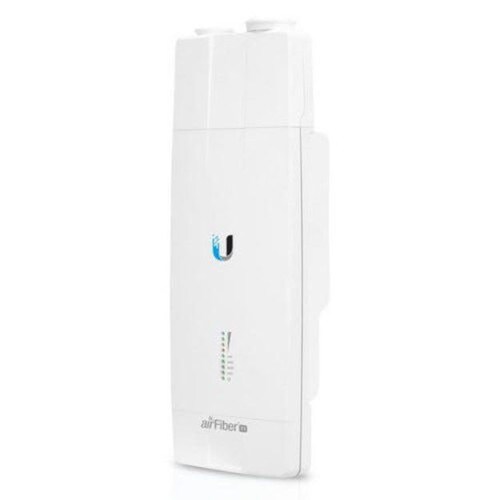

Ubiquiti airFiber® 11 (AF-11)

Brand: Ubiquiti Networks
P\N: AF-11

(0)No Reviews yet

Do you have questions?

Please contact our experts for assistance.

Description

Ubiquiti airFiber® 11: Revolutionizing Wireless Connectivity

Introducing the Ubiquiti airFiber® 11, a groundbreaking product from Ubiquiti Networks. This innovative device is the first modular airFiber radio system specifically designed for the 11 GHz licensed frequency market. With its compact and highly efficient design, the airFiber 11 delivers exceptional wireless gigabit+ performance, low latency, and long range. It's the perfect solution for carrier backhaul, enterprise use between buildings, or public safety applications.

Key Features

Full Duplex Point-to-Point Radio: Enables simultaneous two-way communication for improved efficiency and performance.
11 GHz Frequency Operation: Operates in a less congested band, ensuring reliable and uninterrupted connectivity.
Proprietary INVICTUS Processor: Provides superior processing power for faster data transmission and enhanced performance.
Integration with airFiber® 11 GHz Antennas: Ensures optimal signal strength and range for superior connectivity.

The Ubiquiti airFiber 11 is a modular airFiber radio system designed for the 11 GHz licensed frequency market. It features a full duplex point-to-point radio, operates on the 11 GHz frequency, and is powered by a proprietary INVICTUS processor. The device is also designed to integrate seamlessly with airFiber® 11 GHz antennas.

Experience the difference of a less congested band with the Ubiquiti airFiber 11. Its compact, efficient design delivers impressive wireless gigabit+ performance, low latency, and long range. Whether you need a solution for carrier backhaul, enterprise use between buildings, or public safety applications, the airFiber 11 is the ideal choice.

Don't settle for less when it comes to your wireless connectivity. Choose the Ubiquiti airFiber 11 and experience the future of wireless technology today.

Upgrade your connectivity now with the Ubiquiti airFiber 11. Experience the difference of superior wireless performance. Make your purchase today!

What's in the Box:

airFiber AF-11
Zip Ties (Qty. 2)
airFiber Gigabit PoE (50V, 1.2A)
Power Cord

Interested in learning more about this product?Check out our blog!

Features

Compact, point-to-point radio system that operates at 11 GHz frequency.

11 GHz, 300+ km link range

1.2+ Gbps throughput

Distinct RX and TX frequencies

1+ Mpps processing

Specifications

Mechanical
Dimensions	327 x 112 x 86 mm (12.9 x 4.4 x 3.4")
Weight	2.3 kg (5 lb)
Mounting	AF-11G35 mount compatible

Hardware

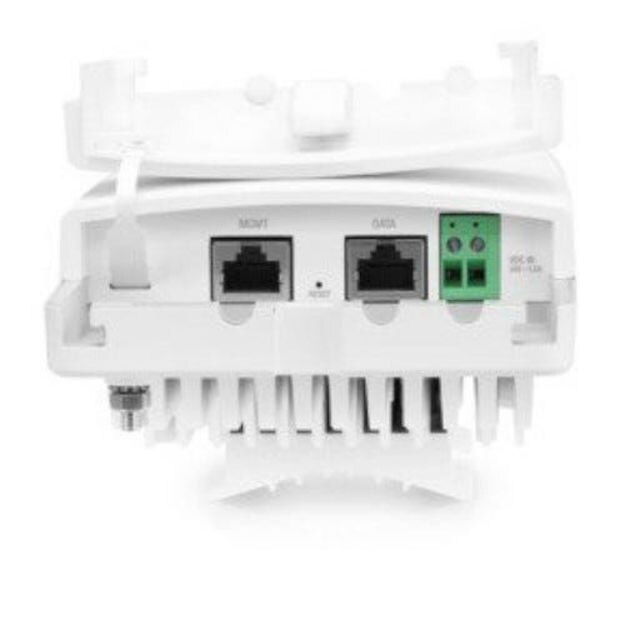

Networking interface	(1) GbE RJ45 port (1) 10/100 MbE RJ45 port
Power method	Passive PoE 4-pairs (1, 2+; 3, 6-) (4, 5+; 7, 8-) Terminal block direct-wire
Power supply	50V DC, 1.2A gigabit PoE adapter (Included)
Supported voltage range	38-56V DC
Max. power consumption	36W
RF connectors	(4) SMA Weatherproof, Two per Chain: TX 0, RX 0 (Chain 0) and TX 1, RX 1 (Chain 1) (2) N-Type Waterproof, One per Duplexer
Ambient operating temperature	-40 to 55° C (-40 to 131° F)
Certifications	CE, FCC, IC

Software
Modes	SISO/MIMO

System
Max. throughput	1.2+ Gbps
Max. range	300+ km
Encryption	128-bit AES

RF
Operating frequency*	10.7-11.7 GHz *Depends on regional regulations.
Max. conducted TX power*	30 dBm *Depends on regional regulations.
Frequency accuracy	± 1 ppm
Channel bandwidth*	3.5/5/7/10/14/20/ 28/30/40/50/56 MHz selectable Programmable Uplink and Downlink duty cycles
