Ubiquiti Networks Access Point AC Lite - US Version(UAP-AC-Lite)
- Brand: Ubiquiti Networks
- P\N: UAP-AC-Lite
- UPC: 729198775797
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description

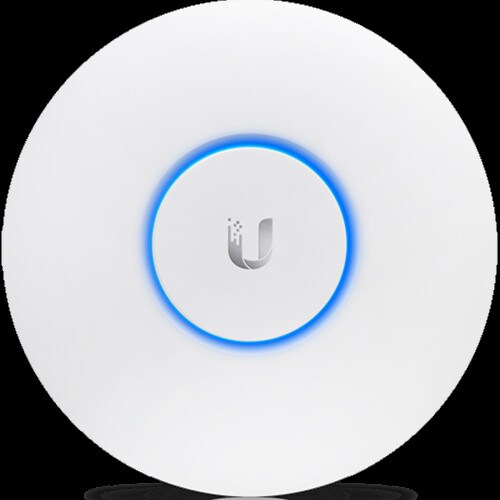

Ubiquiti Networks Access Point AC Lite - US Version(UAP-AC-Lite)
Experience the power of high-speed connectivity with the UAP-AC-Lite from Ubiquiti Networks. This UniFi 802.11ac access point Lite is designed to provide you with a seamless and uninterrupted internet experience.
Key Features
- High-speed connectivity: The UAP-AC-Lite offers superior speed and performance, ensuring that you stay connected at all times.
- US version: This product is the US version, ensuring compatibility with US networks and devices.
- Ubiquiti Networks: As a product of Ubiquiti Networks, a trusted name in the industry, you can be assured of its quality and reliability.
With the UAP-AC-Lite, you can enjoy a seamless and uninterrupted internet experience. Its high-speed connectivity ensures that you stay connected at all times, while its US version guarantees compatibility with US networks and devices. And as a product of Ubiquiti Networks, a trusted name in the industry, you can be assured of its quality and reliability.
Don't let slow internet speeds hold you back. Upgrade to the UAP-AC-Lite and experience the difference. Order now and enjoy seamless connectivity!
What's in the Box:
- UniFi AP AC Lite
- Mounting Bracket
- Ceiling Backing Plate
- Flat Head Screws (Qty. 4)
- Keps Nuts (Qty. 4)
- Screws (Qty. 4)
- Screw Anchors (Qty. 4)
- Gigabit PoE (24V, 0.5A) with Mounting Bracket
- Power Cord
- Quick Start Guide
Features
WiFi 5
4 spatial streams
115 m² (1,250 ft²) coverage
250+ connected devices
Powered using PoE*
GbE uplink*PoE power adapter included with single unit purchases.
Specifications
| Mechanical | |
|---|---|
| Dimensions | Ø160 x 31.45 mm (Ø6.3 x 1.2") |
| Weight | Without mount: 170 g (6 oz) With mount: 185 g (6.5 oz) |
| Hardware | |
|---|---|

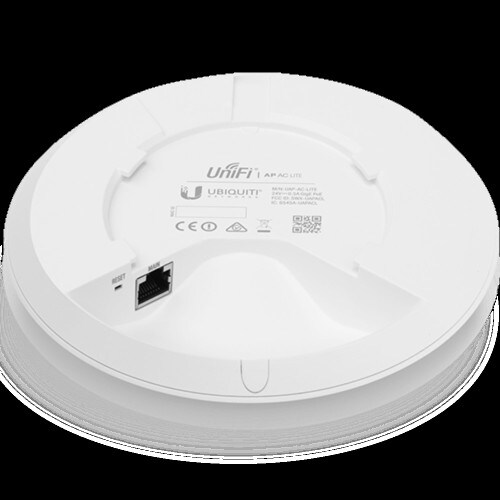

| Networking interface | (1) GbE RJ45 port |
| Management interface | Ethernet |
| Power method | PoE Passive PoE, 24V (Pairs 4, 5+; 7, 8 return) |
| Power supply | UniFi PoE switch 24V, 0.5A Gigabit PoE adapter* *5-packs do not come with PoE adapters. |
| Max. power consumption | 6.5W |
| Max. TX power 2.4 GHz 5 GHz 6 GHz | 20 dBm 20 dBm – |
| MIMO 2.4 GHz 5 GHz 6 GHz | 2 x 2 2 x 2 – |
| Throughput rate 2.4 GHz 5 GHz 6 GHz | 300 Mbps 867 Mbps – |
| Antenna gain 2.4 GHz 5 GHz 6 GHz | 3 dBi 3 dBi – |
| Button | Factory reset |
| Mounting | Wall, ceiling (Included) |
| Ambient operating temperature | -10 to 70° C (14 to 158° F) |
| Ambient operating humidity | 5 to 95% noncondensing |
| Certifications | CE, FCC, IC |
| Software | |
|---|---|
| WiFi standards | 802.11 a/b/g/n/r/k/v/ac |
| Wireless security | WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES) |
| BSSID | Up to 8 per radio |
| VLAN | 802.1Q |
| Advanced QoS | Per-user rate limiting |
| Guest traffic isolation | Supported |
| Power save | Supported |
| WMM | Voice, video, best effort, and background |
| Concurrent clients | 250+ |
| Supported Data Rates (Mbps) | |
|---|---|
| 802.11a | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11b | 1, 2, 5.5, 11 Mbps |
| 802.11g | 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| 802.11n | 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40) |
| 802.11ac | 6.5 Mbps to 867 Mbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80) |
