WilsonPro Enterprise 4330 Rack Mount Indoor Cellular Amplifier Kit (463075)

WilsonPro Enterprise 4330 Rack Mount Indoor Cellular Amplifier Kit (463075)

The Enterprise 4330 delivers the versatility, power, and performance for amplifying cellular signals in large buildings or campus environments. It’s designed for a continuous, precision signal in any environment and on any band, enabling the highest level of confidence in system performance. Now organizations can have a future-ready, affordable solution for managing evolving connectivity challenges.

Key Features:

• For large businesses or campuses up to 100k sq ft
• An ideal solution to the near-far signal mitigation challenge
• Configures for wideband, single or multiple, contiguous channels in a single unit
• Optimizes signal strength and quality in any environment, on every carrier network
• Aggregates carriers across bands for very high data rates and enhanced 5G capability
• Maximizes performance and gains without wasteful power consumption
• Remotely configure with WilsonPro Cloud

The Enterprise 4330 provides unmatched versatility and performance to optimize cellular coverage in large buildings or campus environments. It’s the first DAS solution to combine wideband advantages and bandwidth with the flexibility to channelize — presenting an ideal solution to the near-far signal mitigation challenge. The Enterprise 4330 optimizes the cellular connectivity needed for today’s modern device applications from communications and productivity to access and entertainment. It is part of our exclusive connected architecture that uses open design, modularity, and technology to scale easily and utilize passive and active DAS components as needs extend. Now organizations can have a future-ready, affordable solution for managing the most challenging connectivity demands.

The Enterprise 4330* cell signal amplifier systems provides significantly enhanced 4G LTE and 5G coverage inside buildings where cell signals may not otherwise penetrate. Installation of an Enterprise 4330 cell signal amplifier system results in fewer dropped calls, improved voice quality, uninterrupted texts, and faster data speeds—along with better audio and video streaming. For installers and integrators, subscribing to the WilsonPro Cloud means you can sell your clients extended service plans, generating recurring revenue streams for your business. And for your clients, the WilsonPro Cloud provides ultra-high system reliability and guaranteed uptime. The Enterprise 4330 cell signal amplifier system now incorporates Wilson Electronics’ channelization technology. Specific sub-blocks within a cell band, can be selected for amplification. This capability proves critical in situations in which a strong outside carrier signal is interfering on a frequency band. Filtering can also be essential in installations where only one specific carrier is required. The Enterprise 4330 also incorporates standard WilsonPro Enterprise features such as “split mode” (a.k.a “Multi-Tower Targeting”), XDR (eXtended Dynamic Range: never shuts down due to a strong signal), and an easy-to-use color LCD screen. Like all WilsonPro cell Signal amplifiers, the Enterprise 4330 cell signal amplifier systems are universal: they work for all cellular devices, all services, and all U.S. and Canada cell phone carriers, including smaller local and regional providers

*Depending on outside signal conditions

What's in the Box:

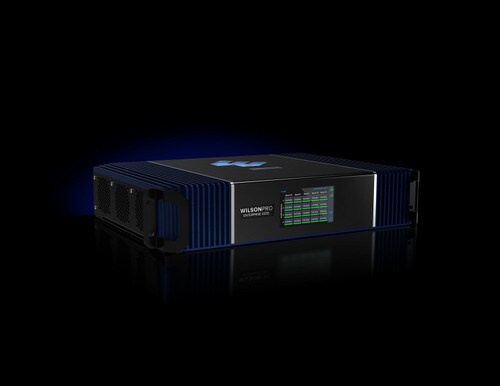

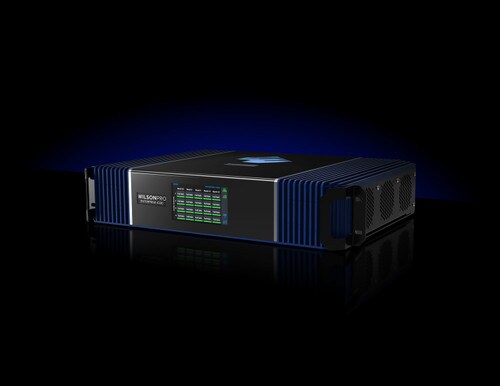

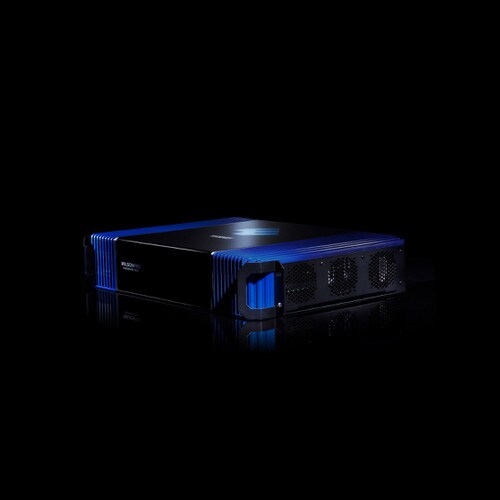

• WilsonPro Enterprise 4330 Amplifier (461075)
• Wide Band Directional Outside Antenna (314411)
• Dome Inside Antennas (Qty. 4) (304412)
• 100 Feet (30 m) Wilson 400 Cable (qty. 5) (952300)
• 2 Feet (60 cm) Wilson 400 Cable (952302)
• 50 Ohm Lightning Surge Protector (859902)

• Wideband and Channelized Capability: specific sub-blocks within a band
can be selected (filtered) for amplification.

• Frequency-specific “split mode” option, facilitating separate outdoor
antennas for different bands, resulting in improved indoor coverage

• Wired or LTE WilsonPro Cloud access for remote functionality

• Network Scanning for real-time measurements of cell signal

• Up to 26 dBm in uplink power

• 17 dBm in downlink power per port

• XDR technology to virtually eliminate shutdown or signal loss

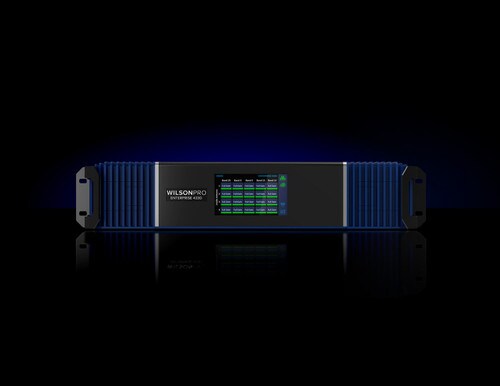

• Color LCD touchscreen for an enhanced user-experience

• Works with ALL phones and cellular devices on ALL carriers

• FREQUENCIES:
  • Band 12/17 700 MHz
  • Band 13 700 MHz
  • Band 5 850 MHz
  • Band 4 1700/2100 MHz
  • Band 25 1900 MHz
• MAX GAIN: 70 dB
• MAX UPLINK POWER: 26 dBm
• MAX DOWNLINK POWER: 17 dBm
• IMPEDANCE: 50 Ohm
• POWER 120...240V / 50...60 Hz / 1.4...0.7A

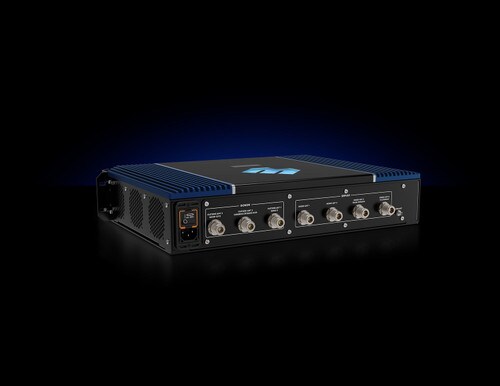

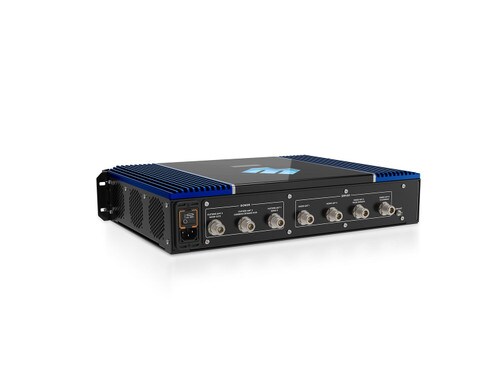

• CONNECTORS: N-Female
• AMPLIFIER DIMENSIONS 3.50 x 18.89 x 14.04 inches
• AMPLIFIER WEIGHT 18.0 lbs.
