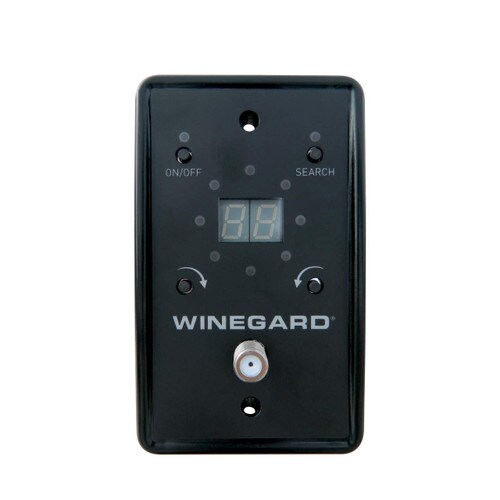

RAYZAR REPLACEMENT WALL PLATE

Model: WP-RZ31

• Replacement LED wallplate interface for Winegard Rayzar Automatic
• Illuminates all locations where TV signals are available
• Optional manual controls allow for fine-tuning a channel for optimal picture
• Watch your favorite shows in the absolute best quality possible

FEATURES

• Cable Mode - When the control panel is powered off, park cable signals will be passed to the TV. In this mode, all LEDs are turned off.
• Antenna Mode - When the Control panel is powered on by pressing the On/Off button, the LEDs will flash and begin its power-on process. At this time, the antenna amplifier is powered on and TV antenna signals will be passed. Initially, GREEN "Positional LED(s)" will be lit to indicate the direction the antenna is positioned.
• Automatic Search - To begin a new search, press the Search button. The antenna will go through its initialization process and begin searching for TV frequencies. The system does not move until the Search button is pressed, and channels will be received whenever the system is powered on.
• Sleep Mode - While in Antenna Mode, if no buttons are pressed for 3 minutes, the system will enter into Sleep Mode. During Sleep Mode, the POWER LED will remain lit, and the antenna amplifier will remain on, allowing you to watch TV. All other LEDs will be turned off.

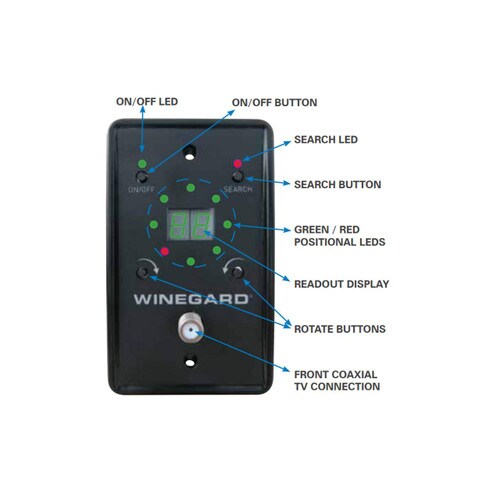

• Manual Control - The Rayzar Automatic wall plate also allows you to move the antenna with a manual control function. This can either be used for fine-tuning a channel that may be pixelating or used as a manual search method in a known location. Pressing the rotate buttons will move the antenna in small increments. The GREEN LED will show the antenna position. If 2 adjacent GREEN LEDs are lit, the antenna is positioned halfway between the corresponding LEDs. Pressing the search button after using manual controls will return the antenna to Automatic Search Mode and move to the next best stored location.

TECH SPECS

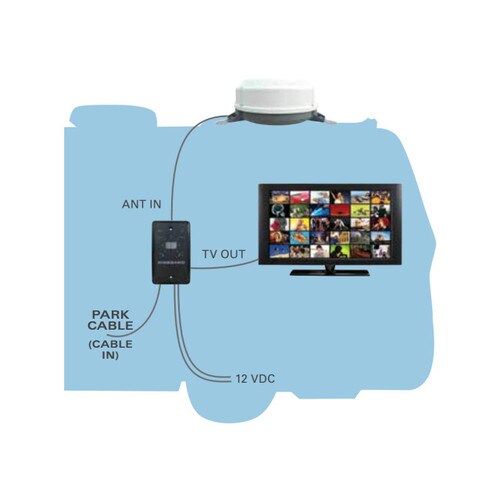

• Cables/Outputs: Antenna In, Cable In, TV Out, +12 VDC
• Modes: Cable, Antenna, Automatic Search, Sleep, Manual Search
• Complimentary: Telephone and email support
• Online: Technical manuals and instructions
• Support: Large Dealer Support Network

IN THE BOX

• +12 VDC Wallplate Interface and Power Supply
• Hardware Bag
• Printed Documentation

Package Dimensions and Weights

• Weight: 0.35 LBS
• Height: 4.75 Inches
• Width: 6.00 Inches
• Depth: 4.00 Inches

Warranty

• 2-Year Parts, 1-Year Labor Warranty
