Winegard Replacement Power Inserter, for Carryout G3 and G2+ (PI-GM60)

SATELLITE POWER INSERTER AND CABLE EXTENDER

FEATURES

• Replacement Kit for Carryout G2+ and Carryout G3 Antennas - Carryout antennas offer provider flexibility with the ability to switch between DIRECTV, DISH, and Bell TV at the power inserter. The PI-GM60 power inserter eliminates the need for an antenna power cable and allows you to easily switch programming providers from inside your cab.
• Add-On Accessory for DISH Playmaker and Pathway Series Antennas - The PI-GM60 gives you the ability to add an in-line power inserter, providing additional power for longer coaxial cable runs.

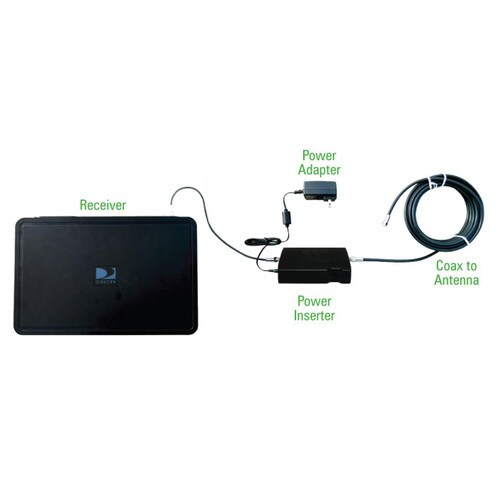

• Easy 3-Step Installation -
  1. You will need an antenna coaxial cable (not included). Connect the cable between the primary port of your ANTENNA and the antenna port on the power inserter
  2. Connect the included 3' coaxial cable betwen the SAT IN port of your satellite receiver and the RECEIVER port of the power inserter
  3. Plug the power adapter into a 110/120 VAC outlet and connect it to the power port on the power inserter

What's in the Box:

• Power Inserter
• 24 VDC Power Supply
• 36" Jumper Cable
• Printed Documentation

• Replacement power inserter
• Compatible with Carryout G2+ and G3
• Add-on accessory for DISH Playmaker and Pathway
• Get additional power to your satellite antenna

TECH SPECS

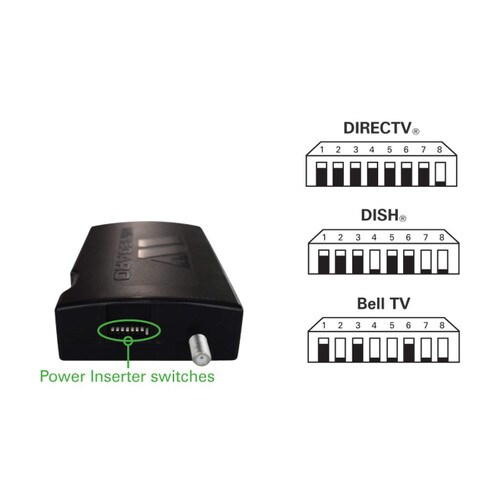

• Carryout antennas: Compatible with DIRECTV, DISH, and Bell TV programming. The PI-GM60 power inserter settings are preset for DIRECTV programming. To set your Carryout antenna for DISH or Bell TV programming, locate the switches on the power inserter and set according to the diagram located on the PI-GM60 instruction sheet
• DISH Playmaker and Pathway series antennas: Only compatible with DISH programming. The
  PI-GM60 power inserter settings are preset for DIRECTV programming. To set your antenna for DISH programming, locate the switches on the power inserter and set according to the diagram located on the PI-GM60 instruction sheet
• Coax Length: The length of coaxial cable you can add to your configuration will vary depending on the length and quality of coaxial cable inside your coach/cab. If you have copper-coated steel coax in your coach/cab, you can add up to 75 feet of solid copper coax; however, if your coach/cab has solid copper coax, you can add up to 125 feet of solid copper coax to your configuration
• Complimentary: Telephone and email support
• Online: Technical manuals and instructions
• Support: Large Dealer Support Network

Package Dimensions and Weights

• Weight: 1.30 LBS
• Height: 5.38 Inches
• Width: 7.25 Inches
• Depth: 6.25 Inches

Warranty:

• 1-Year Limited Warranty
