Altelix NP171406VA1C - 17x14x6 Polycarbonate + ABS Vented Weatherproof NEMA Enclosure with Aluminum Mounting Plate, 120 VAC Outlets & Power Cord
- Brand: Altelix
- P\N: NP171406VA1C
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Description
The Altelix NP171406VA1C Vented Polycarbonate + ABS NEMA Weatherproof Enclosure with 120VAC Power and Aluminum Equipment Plate is ideal for protecting equipment from harsh environments and tampering. This enclosure features a fully gasketed door to protect from dust and water ingress. The door features reinforced hinges, dual latches, and a tamper-proof locking screw with a key to secure the enclosure. There is also a provision for padlock use. Internal and external electrical ground points are also provided.
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability, and dimensional stability even at extreme cold and hot temperatures. Great for Indoor / Outdoor WiFi Equipment, SCADA Remote Terminal Unit, Security and Surveillance Systems, Outdoor use of Indoor Equipment, Protection of Equipment from Theft or Damage, Concealment of Electronic Equipment, and more.

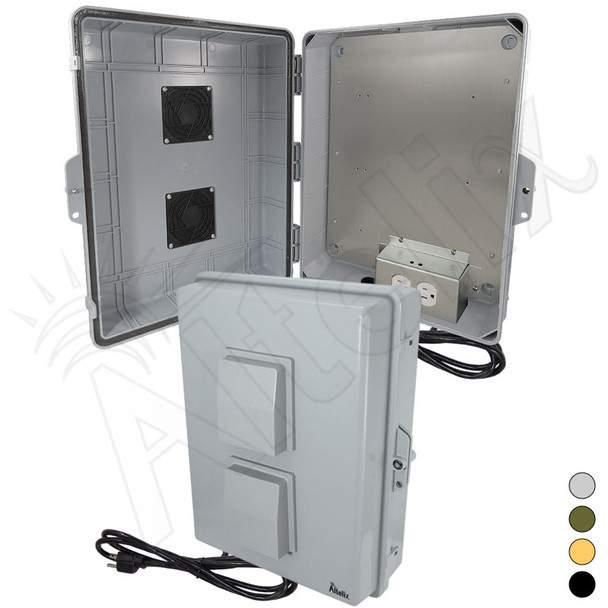

This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with two 120VAC power outlets. A 5-foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A ground lug is provided on the side of the enclosure. Knock-outs on two sides of the enclosure are provided for additional wiring. Cable grommets are included with the accessory kit. This enclosure features two 3.5 inch air vents with removable fan mounting rings. The fan mounting ring is for use with standard 80mm fans. Rain shields help prevent rainwater from entering the enclosure. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Key Features
These enclosures are molded out of UV resistant PC+ABS, a high tech thermoplastic blend of polycarbonate and ABS which combines the best qualities of both into a single material. PC+ABS enclosures are superior to ABS enclosures because they maintain high toughness, durability, and dimensional stability even at extreme cold and hot temperatures. Great for Indoor / Outdoor WiFi Equipment, SCADA Remote Terminal Unit, Security and Surveillance Systems, Outdoor use of Indoor Equipment, Protection of Equipment from Theft or Damage, Concealment of Electronic Equipment, and more.
This configuration consists of the PC+ABS NEMA enclosure with hinged lid and a 2.0mm thick aluminum plate with two 120VAC power outlets. A 5-foot pre-wired power cord is included to power the enclosure, so no additional wiring is required. A ground lug is provided on the side of the enclosure. Knock-outs on two sides of the enclosure are provided for additional wiring. Cable grommets are included with the accessory kit. This enclosure features two 3.5 inch air vents with removable fan mounting rings. The fan mounting ring is for use with standard 80mm fans. Rain shields help prevent rainwater from entering the enclosure. The enclosure and plate can be drilled and modified by the installer to suit unique site requirements.
Key Features

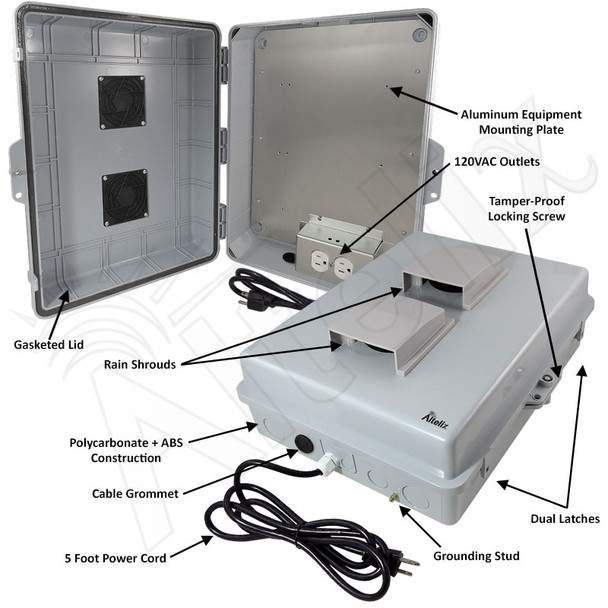

- Dual 3.5” Vents with Rain Shields to Expel Heat
- PC+ABS Polycarbonate / ABS Blend
- Gasketed Lid with Tamper-Proof Locking Screw
- Dual Door Latches
- Includes Aluminum Mounting Plate with 120VAC Outlets
- Pre-wired 5-foot power cord
- NEMA Type 3R, 3RX / IP24 Rated
- Includes Wall Mount Hardware and Cable Grommets
