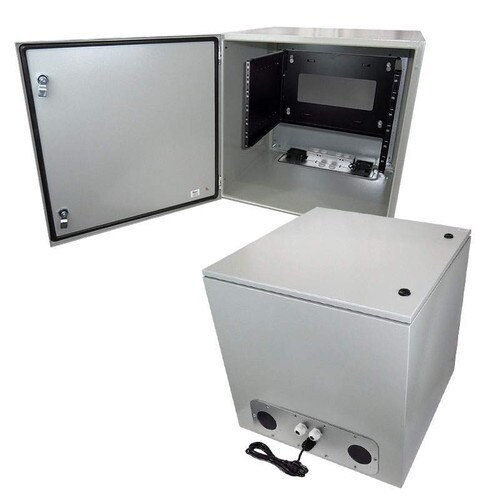

Altelix NS242416VFA1C-R6U - 24x24x16 19" Wide 6U Rack Steel Weatherproof NEMA Enclosure with Dual Cooling Fans, Dual 120 VAC Duplex Outlets and Power Cord
- Brand: Altelix
- P\N: NS242416VFA1C-R6U
Do you have questions?
Please contact our experts for assistance.
Description
Altelix 24x24x16 19" Wide 6U Rack Steel Weatherproof NEMA Enclosure with Dual Cooling Fans, Dual 120 VAC Duplex Outlets and Power Cord (NS242416VFA1C-R6U)
The Altelix NS242416VFA1C-R6U 19" Rack 6U Steel Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Plate is ideal for protecting rack mountable equipment from harsh environments and tampering. Equipment designed for indoor use can now be located outside.

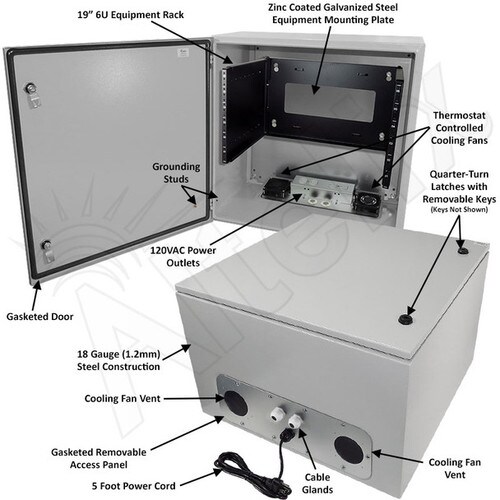

Construction and Features
This rugged enclosure features continuous seam welded 18 Gauge (1.2mm thick) steel construction. The enclosure door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. Internal grounding studs are provided on both the door and enclosure.
Both the enclosure and door are finished in a rugged epoxy polyester textured light gray powder coat finish.

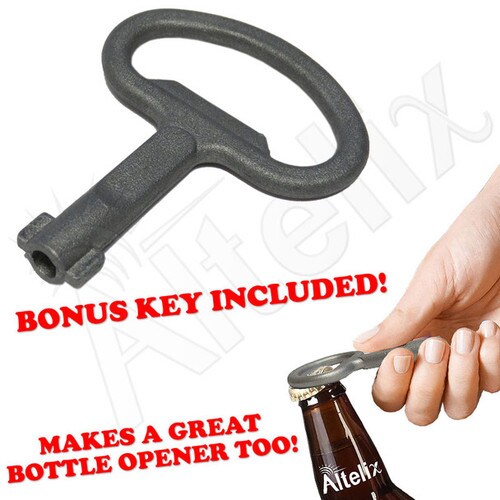

Bonus Aluminum Bottle Opener Key
This enclosure now includes our HN-0008 Aluminum Bottle Opener Key. A $9.99 value, this heavy duty aluminum door locking key easily attaches to most key chains. And it makes a great bottle opener too!
Removable Power and Fan Module
The NS242416VFA1C-R6U features a removable power and fan module that attaches to the bottom of the enclosure. Constructed of rugged aluminum, this can be easily removed for servicing and is fully gasketed to ensure a proper seal. This power module features two pre-wired duplex 120VAC power outlets (4 outlets total) and a pre-wired 5 foot power cord, so no additional wiring is required.
This enclosure is also available with 120VAC 20A outlets and a 5 foot power cord and with 20A 3-prong plug. See NS242416VFA1C-20A-R6U.
Dual Cooling Fans Ventilation
This enclosure features dual 3" vents and dual thermostat controlled cooling fans. The low noise, high airflow fans help maintain lower internal temperatures by allowing air to be either pushed or pulled through the enclosure. The fans turn on when the internal temperature reaches 100°F (38°C) and turns off when it drops to 79°F (26°C). Both fans are wired internally so they do not require the use of the AC outlets leaving them available for internal equipment use.

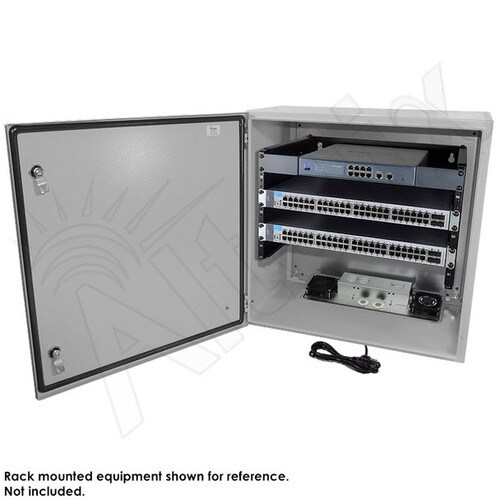

Internal 6U 19" Equipment Rack
The NS242416VFA1C-R6U features a standard 19" 6U equipment rack. It is designed to accommodate a wide range of equipment such as network switches, rack mount audio/video equipment and most other rack mountable equipment. The rack frame mounts to a 18 Gauge (1.2mm thick) galvanized steel plate which can also be drilled and modified by the installer to unique site requirements.
Installation Note: This 6U rack has an adjustable depth from 9.5" (241.3mm) to 15.5" (393.7mm). Before ordering please check the dimensions of the equipment to be installed to ensure proper fit.
Cable Glands

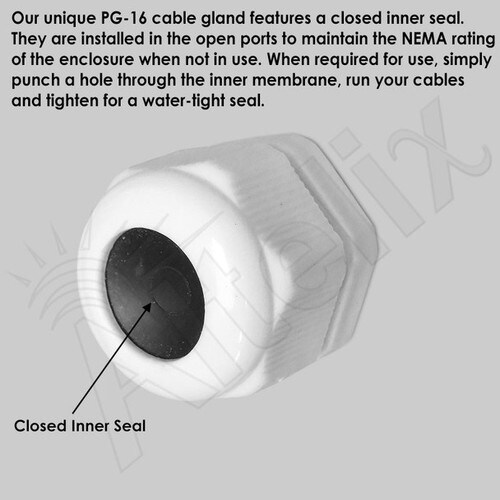

The enclosure features two unique PG-16 cable glands with a closed inner seal. They are installed in the open ports to maintain the NEMA rating of the enclosure when not in use. When required for use, simply punch a hole through the inner membrane, run your cables and tighten for a water-tight seal.
Mounting
Mounting holes are provided inside the enclosure for mounting to a wall or other structure. For pole mounting Altelix has available the optional NMHS-600-16 pole mount kit. This heavy-duty kit features (2) 14 gauge steel mounting brackets and (2) heavy-duty 19 gauge 304 stainless steel adjustable bands which can be used to mount to poles from 4.5" (114.3mm) to 16" (406.4mm) in diameter.
Optional Lockable Latches
For additional protection of internal equipment installed, two lockable latches are available. The HN-0005 is a keyed lock set which includes two keys. The HN-0006 allows the enclosure to be securely locked via use of a padlock (not included). Both the HN-0005 and HN-0006 are direct replacements for the standard quarter-turn latches that come pre-installed in the enclosures.
Customization
This enclosure is one of many standard models available. Our lineup includes enclosures specifically tailored for WiFi equipment, DIN Mount Industrial Controls, POTS Telephones, IP Phones, Device Charging Stations, Security & Safety Equipment, Building & Home Automation and More.
We offer numerous standard models and options including equipment mounting plates, DIN rails, AC or DC power, air vents, cooling fans and heaters and more. We also offer full customization, engineering and on-site CNC machining of enclosures and associated equipment, all with quick turnaround time. Please contact us with your unique requirements.
What's in the Box:
- Altelix Enclosure
- Dual Thermostat Controlled Cooling Fans
- (4) 120VAC Outlets
- Includes dual 3" vents
- Includes Aluminum Bottle Opener Key
- Includes 19" 6U Rack Frame and Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
Features
Features
- Dual Thermostat Controlled Cooling Fans
- (4) Pre-Wired 120VAC Outlets with 5 Foot Power Cord
- Heavy Duty Continuous Seam Welded 18 Gauge Steel Construction
- Includes 19" 6U Rack Frame and Blank Zinc Coated Galvanized Steel Equipment Mounting Plate
- Dual quarter-turn door latches with key
- Bonus Aluminum Bottle Opener Key Now Included!
- Epoxy polyester textured light gray powder coat finish
- NEMA Type 3R, 3RX / IP24 Rated
Applications
- 19" Rack Mountable Equipment
- Indoor / Outdoor Electrical and Electronic Equipment
- Rack Mountable Audio/Video Equipment
- Ethernet Switches
- Networking Equipment
- Industrial Controls and Components
- Security and Surveillance Systems
- Outdoor use of Indoor Equipment
- Protection of Equipment from Theft or Damage
Specifications
Material | Continuous Seam Welded 18 Gauge (1.2mm) Steel |
Color | Light Gray (RAL 7035) |
Voltage | 120VAC |
Max Load | 10A @ 120VAC |
Cooling Fans Turn-On Temperature | 100°F (38°C) ±6°F |
Cooling Fans Turn-Off Temperature | 79°F (26°C) ±9°F |

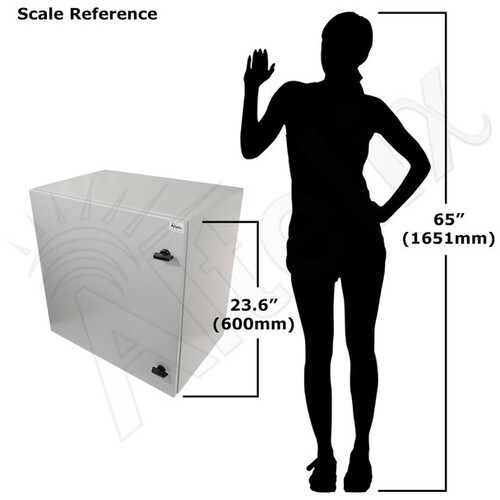

Exterior Dimensions (Height x Width x Depth) | 23.6 x 23.6 x 15.7 Inches (600 x 600 x 400 mm) |
Interior Dimensions* (Height x Width x Depth) | 18.0 x 20.0 x 14.1 Inches (457 x 508 x 358 mm) |
Rack Frame | 19" Width 6U |
Rack Frame Weight Capacity | 75 lbs (34kg) |
Equipment Plate Material | 18 Gauge (1.2mm) Zinc Coated Galvanized Steel |
Equipment Plate Dimensions | 22.2 x 21.6 In. (565 x 550 mm) |
Weight | 60.8 lbs. (27.6 kg) |
Power Cord Length | 5 Feet (1.5m) |
Ratings | NEMA Type 3R, 3RX / IP24 |
*Notes: 1) Interior dimensions represent maximum space available for equipment. |
