Altelix NFC322412VFHA1 - 32x24x12 Vented Fiberglass Heated Weatherproof NEMA Enclosure with Dual Cooling Fans, 400W Heater and 120 VAC Outlets

The Altelix 32” x 24” x 12” Heated and Fan Cooled Weatherproof Enclosure with 120VAC Power and Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Any equipment designed for indoor use can now be located outside. This rugged rated enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet. This configuration consists of the fiberglass NEMA enclosure with a hinged lid and a 16-gauge galvanized steel equipment mounting plate with two pre-wired duplex 120VAC power outlets (4 outlets total). It can be drilled and modified by the installer to suit unique site requirements. This model features two 4” air vents with cleanable mesh screens which are covered by rain shields and dual thermostat controlled cooling fans. Ideal for cold environments, this enclosure features four 200W (800W total) thermostat controlled heaters which are situated below the mounting plate and wired internally so it does not interfere with user installed equipment or require the use of the AC outlets.
Molded into the interior of the enclosure is a versatile mounting system can be used to mount different size and types of equipment mounting plates as well as DIN rails without modifying the enclosure. Designed for use with T-Nuts, they run the full length of the enclosure from top to bottom. This mounting system provides the flexibility needed when configuring the enclosure for specific user requirements. Four mounting feet are included so that the enclosure can be securely mounted to a wall or other structure. Ideal for applications including indoor/outdoor Wi-Fi equipment, SCADA remote terminal unit, security and surveillance systems, outdoor use of indoor equipment, protection of equipment from theft or damage, concealment of electronic equipment, tunnel and mining installations, railroad facilities, mills, refineries, cement and chemical plants, food processing facilities, warehouses, loading docks, marinas and marine terminals, golf courses, resort properties, recreational areas, building maintenance areas, building rooftops and basements, parking lots and garages, weather stations and more.

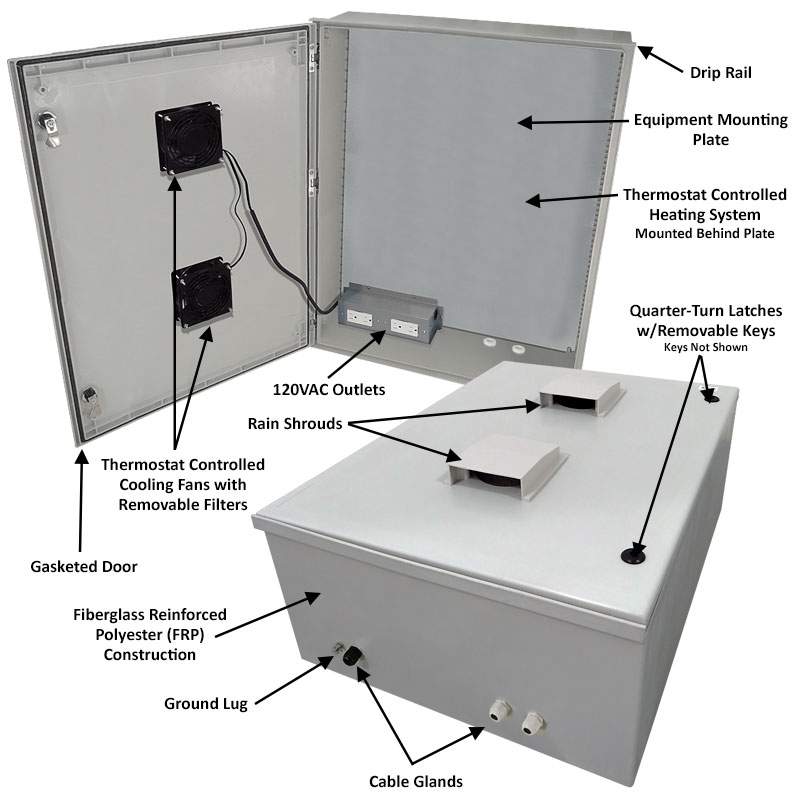

Key Features

• Integral T-Nut mounting system
• Includes blank 16-gauge galvanized steel equipment mounting plate
• Dual 4” air vents with rain shields to expel heat and dual thermostat controlled cooling fans
• Thermostat controlled 800W heating system (four 200W heaters)
• Four 120VAC power outlets
• Heavy-duty fiberglass reinforced polyester construction
• Dual quarter-turn door latches and four mounting feet included
