Altelix NFC201608HA1 - 20x16x8 NEMA 4X Fiberglass Heated Weatherproof Enclosure with Equipment Mounting Plate & 120 VAC Outlets
- Brand: Altelix
- P\N: NFC201608HA1
Do you have questions?
Please contact our experts for assistance.
Live Chat
Contact Us
Call Our Experts
Description
Description

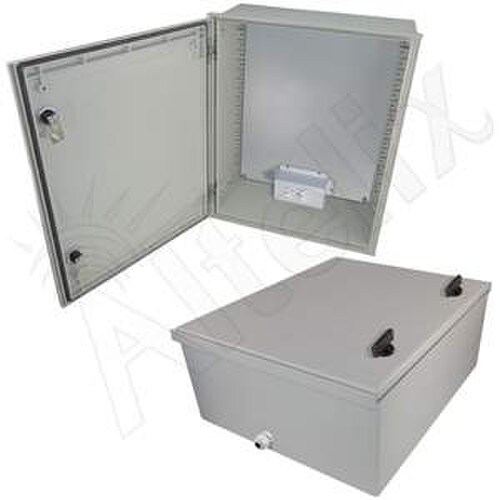

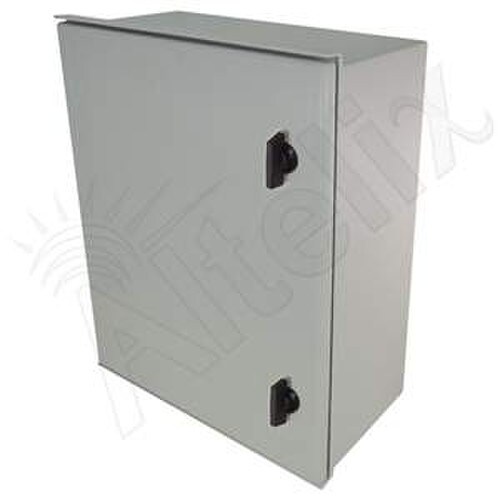

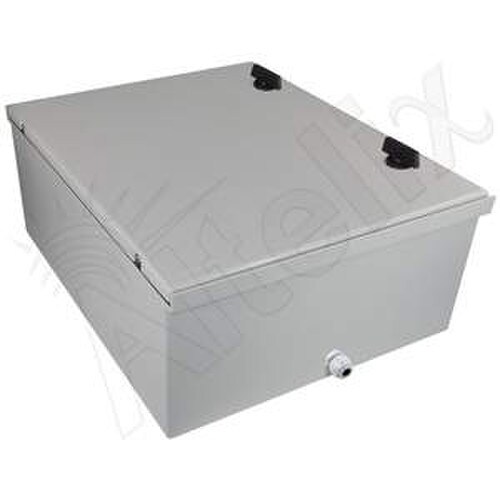

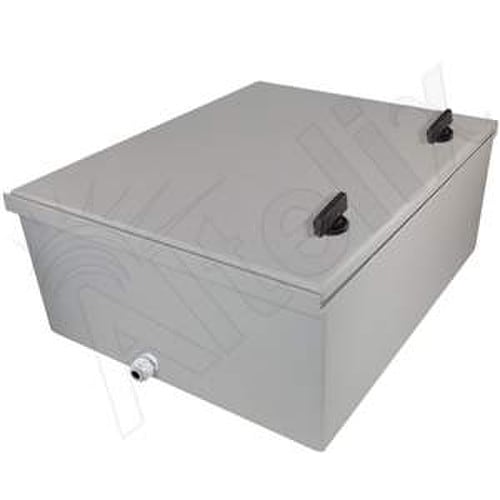

The Altelix NEMA 3X Weatherproof Enclosure with 120VAC Power and Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Any equipment designed for indoor use can now be located outside. This rugged IP66 rated enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet. This configuration consists of the fiberglass NEMA enclosure with a hinged lid and an equipment mounting plate with two pre-wired 120VAC power outlets. It is easily removable to facilitate wiring to an external power source. The equipment plate is provided for mounting and securing equipment.
Ideal for cold environments, this model features a 200W thermostat controlled heater. It is situated below the mounting plate and wired internally so it doesn't interfere with user installed equipment or require the use of the AC outlets. Molded into the interior of the enclosure is a versatile mounting system can be used to mount different size and types of equipment mounting plates as well as DIN rails without modifying the enclosure. Designed for use with T-Nuts, they run the full length of the enclosure from top to bottom. This mounting system provides the flexibility needed when configuring the enclosure for specific user requirements. Ideal for use in applications such as indoor/outdoor Wi-Fi equipment, SCADA remote terminal unit, security and surveillance systems, outdoor use of indoor equipment, protection of equipment from theft or damage, concealment of electronic equipment, and more.
Key Features
Ideal for cold environments, this model features a 200W thermostat controlled heater. It is situated below the mounting plate and wired internally so it doesn't interfere with user installed equipment or require the use of the AC outlets. Molded into the interior of the enclosure is a versatile mounting system can be used to mount different size and types of equipment mounting plates as well as DIN rails without modifying the enclosure. Designed for use with T-Nuts, they run the full length of the enclosure from top to bottom. This mounting system provides the flexibility needed when configuring the enclosure for specific user requirements. Ideal for use in applications such as indoor/outdoor Wi-Fi equipment, SCADA remote terminal unit, security and surveillance systems, outdoor use of indoor equipment, protection of equipment from theft or damage, concealment of electronic equipment, and more.
Key Features
- Two pre-wired 120VAC power outlets and 200W thermostat controlled heater
- Equipment mounting plate included
- Integral T-Nut mounting system
- Heavy-duty fiberglass reinforced polyester construction
- Dual quarter-turn door latches
- Four mounting feet included
