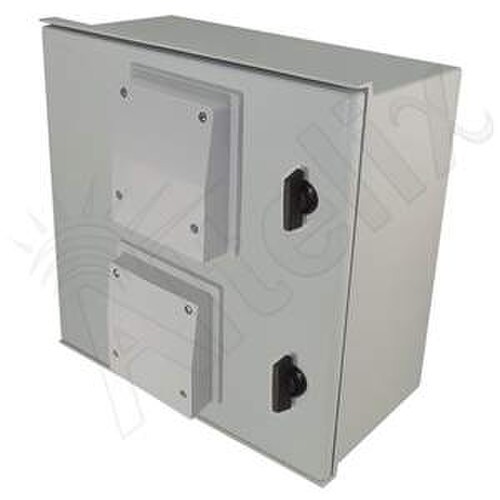

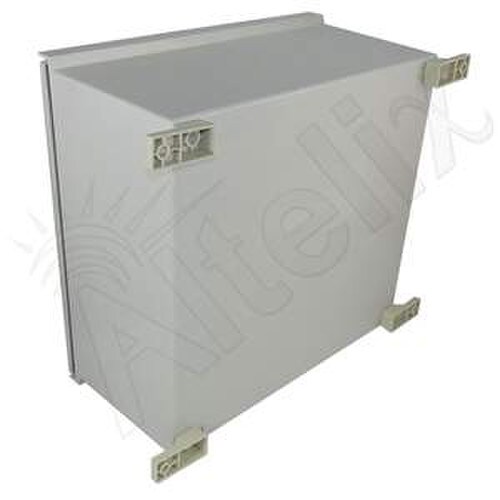

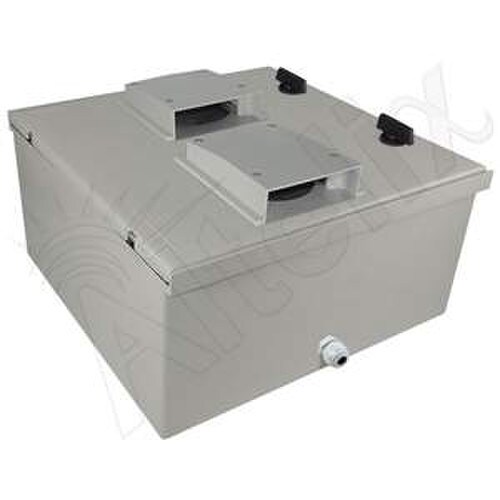

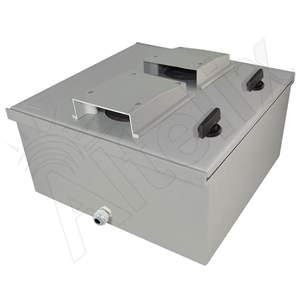

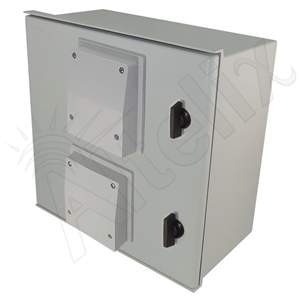

Altelix NFC161608VFHA1 - 16x16x8 Vented Fiberglass Weatherproof NEMA Enclosure with Cooling Fan, 200W Heater and 120 VAC Outlets

The Altelix 16" x 16" x 8" Vented Heated and Fan Cooled Weatherproof NEMA Enclosure with 120VAC Power and Equipment Mounting Plate is ideal for protecting equipment from harsh environments and tampering. Any equipment designed for indoor use can now be located outside. This rugged enclosure is molded from durable and UV resistant fiberglass reinforced polyester (FRP). The door is fully gasketed making this enclosure suitable for use indoors or outdoors. The door features reinforced hinges and dual quarter-turn latches to secure the enclosure. A drip rail over the door provides additional protection against water dripping into the cabinet while the enclosure is wet. This configuration consists of the fiberglass NEMA enclosure with a hinged lid and an equipment mounting plate with two pre-wired 120VAC power outlets. It can be drilled and modified by the installer to suit unique site requirements.

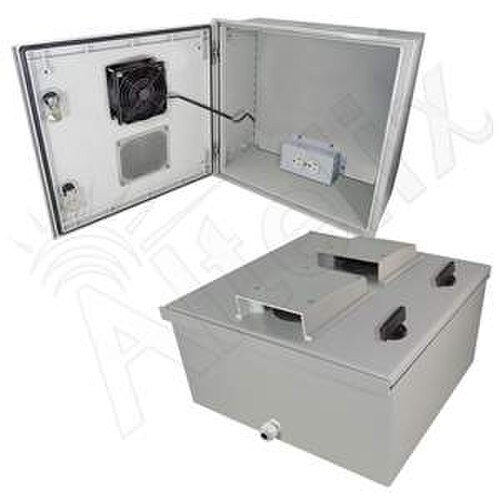

This enclosure includes two 4" air vents and a thermostat controlled cooling fan. These vents help expel heat from within the enclosure. There is also a 5' pre-wired power cord to provide power to the internal 120VAC outlets. It is ideal for cold environments, this model also features a thermostat controlled 200W heating system. It is situated below the mounting plate and wired internally so it does not interfere with user installed equipment or require the use of the AC outlets. Molded into the interior of the enclosure is a versatile mounting system can be used to mount different size and types of equipment mounting plates as well as DIN rails without modifying the enclosure. Designed for use with T-Nuts, they run the full length of the enclosure from top to bottom. This mounting system provides the flexibility needed when configuring the enclosure for specific user requirements.
For use in applications such as indoor/outdoor Wi-Fi equipment, SCADA remote terminal unit, security and surveillance systems, outdoor use of indoor equipment, protection of equipment from theft or damage, concealment, building maintenance areas, building rooftop or basement, parking lots and garages, warehouses and loading docks, weather stations, and more.
Key Features

• Integral T-nut mounting system
• Equipment mounting plate with two pre-wired 120VAC power outlets
• Heavy-duty fiberglass reinforced polyester
• Two 4" air vents and thermostat controlled cooling fan
• Dual quarter-turn door latches and 4 mounting feet included
• Thermostat controlled 200W heating system
