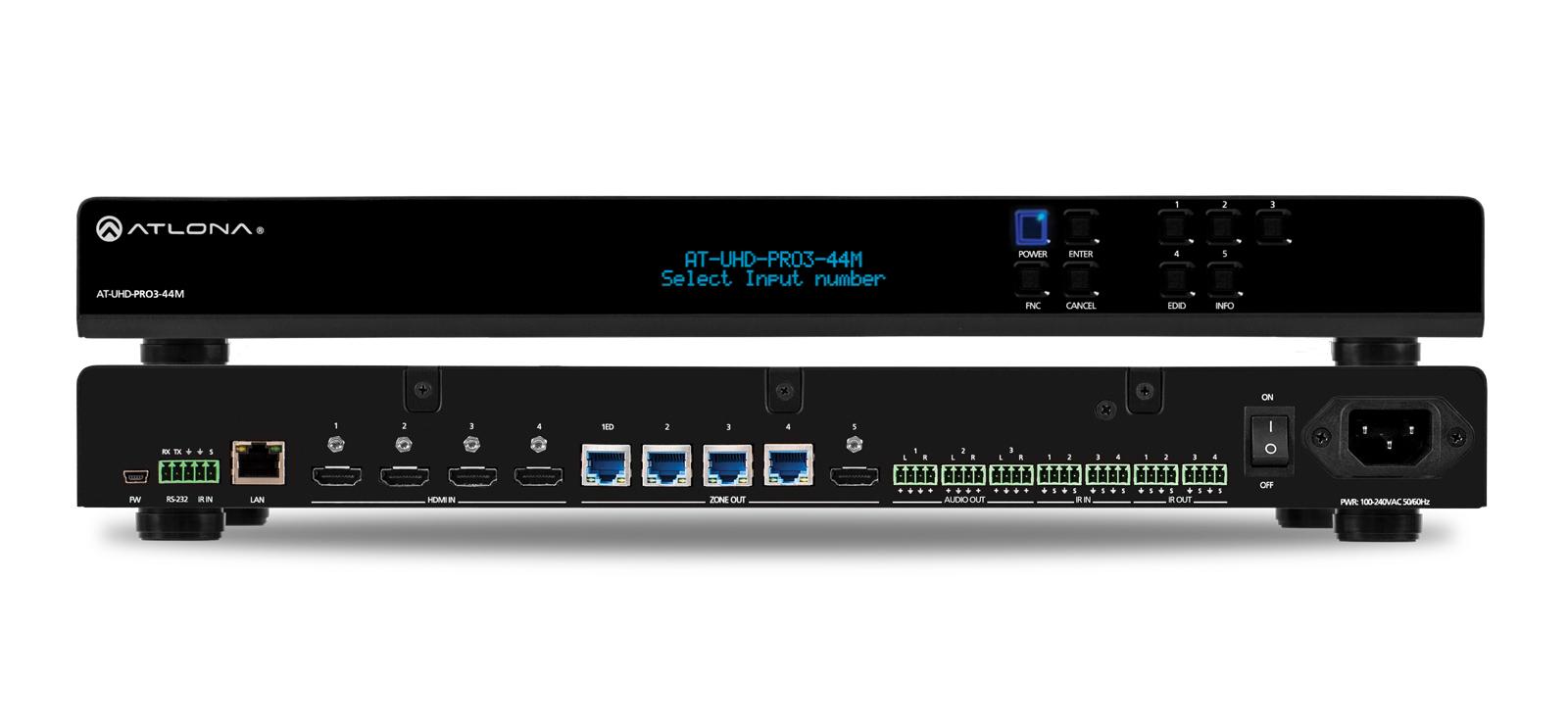

Atlona 4K/UHD Dual-Distance 4x4 HDMI to HDBaseT Matrix Switcher (AT-UHD-PRO3-44M)

Atlona 4K/UHD Dual-Distance 4x4 HDMI to HDBaseT Matrix Switcher (AT-UHD-PRO3-44M)

Key Features and Benefits

• Four HDMI inputs for multiple device connectivity
• Four HDBaseT outputs with extended and long-distance transmission capabilities
• HDMI output with independently selectable mirror and matrix modes
• 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling for high-quality video

Product Overview

The Atlona AT-UHD-PRO3-44M is a state-of-the-art HDMI to HDBaseT matrix switcher designed for high-quality video and audio distribution. This switcher is perfect for multi-zone residential or commercial applications, offering both extended distance (330 foot/100 meter) and long distance (230 foot/70 meter) HDBaseT transmission over category cable.

Technical Specifications

• HDMI to HDBaseT matrix switcher with Power over Ethernet (PoE)
• Extended distance, 330 foot (100 meter) HDBaseT transmission
• Long distance, 230 foot (70 meter) HDBaseT transmission
• Convenient bidirectional extension of both RS-232 and IR Control
• HDMI output provided as a mirrored output for routing HDMI-based audio to an AVR or as an additional matrix output
• HDCP 2.2 compliant and supports EDID communication
• Control system-friendly and integrates with any TCP/IP, RS-232, or IR based control signals
• 1U, rack-mountable enclosure with an internal, international power supply

With the Atlona AT-UHD-PRO3-44M, you can enjoy high-quality 4K/UHD video @ 60 Hz with 4:2:0 chroma subsampling. The switcher is HDCP 2.2 compliant and supports EDID communication, ensuring compatibility with a wide range of devices. The matrix switcher also provides convenient bidirectional extension of both RS-232 and IR Control, making it a versatile addition to any setup.

Designed for multi-zone residential or commercial distribution applications, the AT-UHD-PRO3-44M features a 1U, rack-mountable enclosure with an internal, international power supply. This makes it a compact and convenient solution for any audio-visual needs.

Experience the difference with the Atlona AT-UHD-PRO3-44M. Upgrade your audio-visual setup today!
