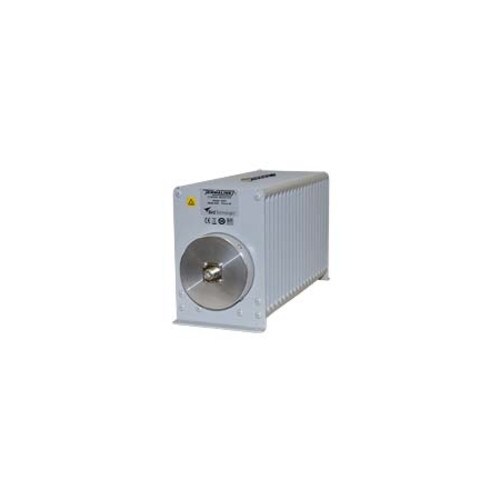

Bird Technologies 3Ghz General Purpose Load Resistor 600W (8401)

  • Brand: Bird Technologies
  • P\N: 8401
  • UPC: 729198965129
(0)No Reviews yet

Availability: In Stock


Your Price: $3,348.63

Do you have questions?

Please contact our experts for assistance.

Description

Description

BIRD 600 watts, oil-cooled termination, portable, self-contained general purpose 50-ohm coaxial transmission line termination. Requires no outside power source or additional equipment. It provides accurate, dependable, and practically nonreflective termination for testing and adjusting transmitters under non-radiating conditions. The load consists essentially of a cylindrical film type resistor immersed in a dielectric coolant. The resistor, individually selected for its accuracy, is enclosed in a special tapered housing which provides a linear reduction in surge impedance directly proportional to the distance along the resistor. This produces the uniform, practically reflectionless line termination from dc to 3 GHz.
Key Features
  • Rugged portable Bench load for medium power base station RF testing up to 3 GHz
  • Oil-assisted convection cooling for safe, continuous operation up to 600W full rated power
  • Quick Change (QC) connectors to minimize the need for adaptors when making critical measurements
  • Low-profile housing with handle and rubber feet for trouble-free operation in the most demanding environments

  • Special Order. Non-Cancellable and Non-Returnable
